Description

Introducing the latest technology in TBS video transmitters! It comes with a built-in graphical OSD and microphone, talks all the protocols and transmits all the power levels!

SPECIFICATIONS

Operating Voltage: 6V – 26V (2S – 6S)

Supply current: (25mW) ~ 0.11A | (100mW) ~ 0.13A | (400mW) ~ 0.18A | (full power) ~ 0.24A

Operating Temperature: watch for normal airflow

Video Input Impedance: 75 Ohm

Weight: 7g

Dimensions: 30 x 23 x 5.5mm

Antenna Connector: u.FL socket

Video Format: NTSC/PAL

Audio: Microphone included

Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 29dBm (800mW)

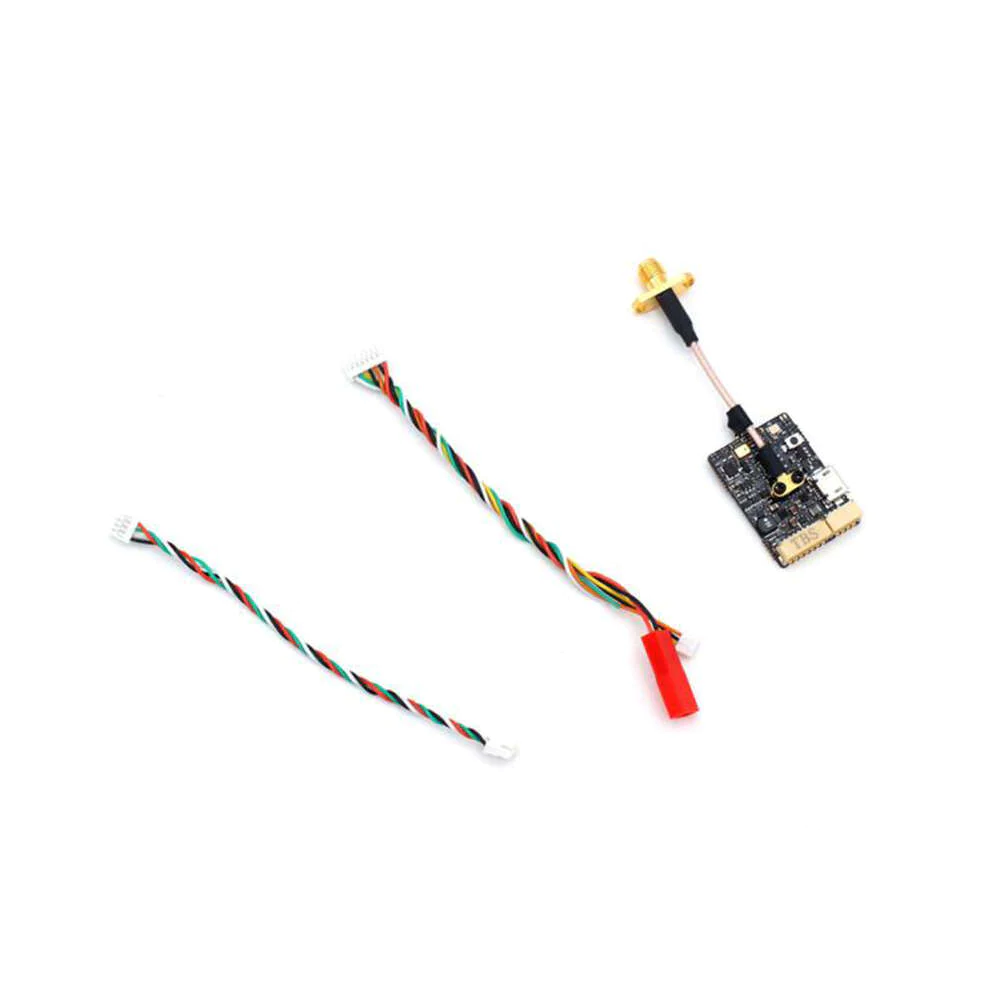

INCLUDED

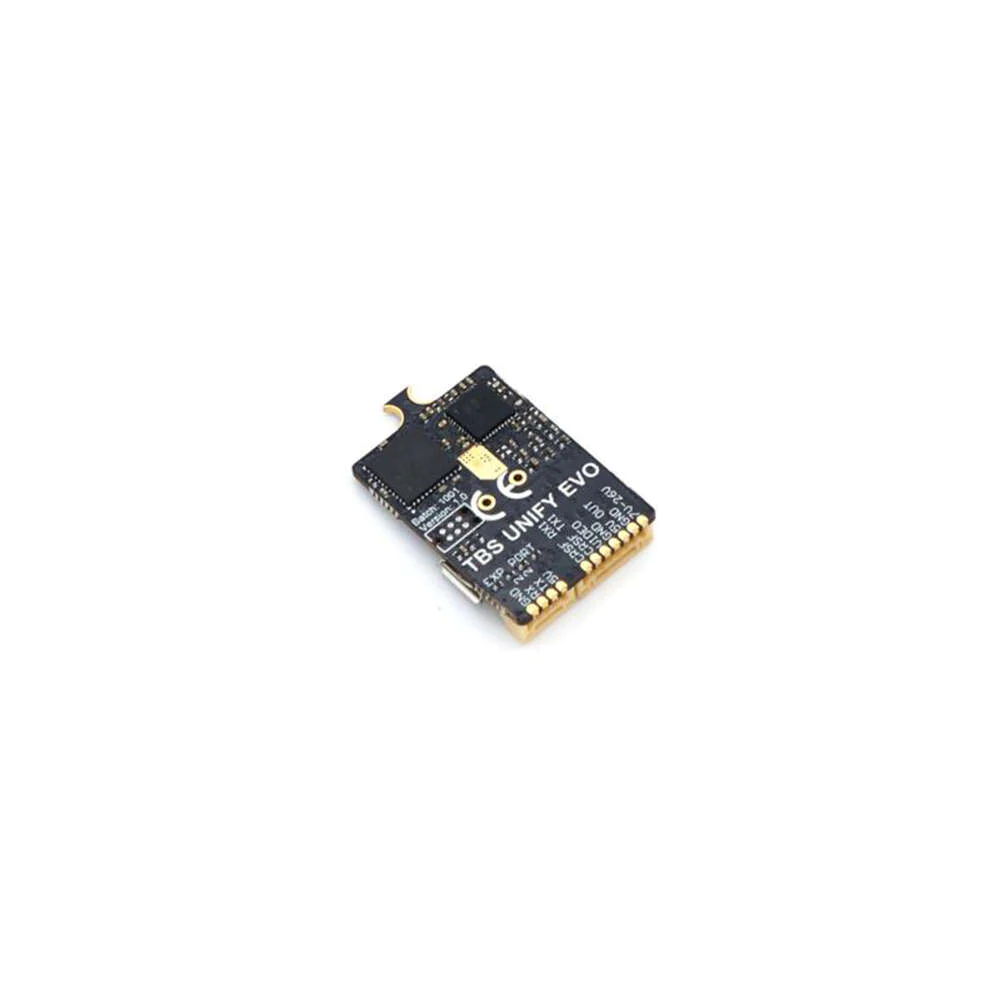

1x TBS UNIFY EVO 5G8 Video transmitter

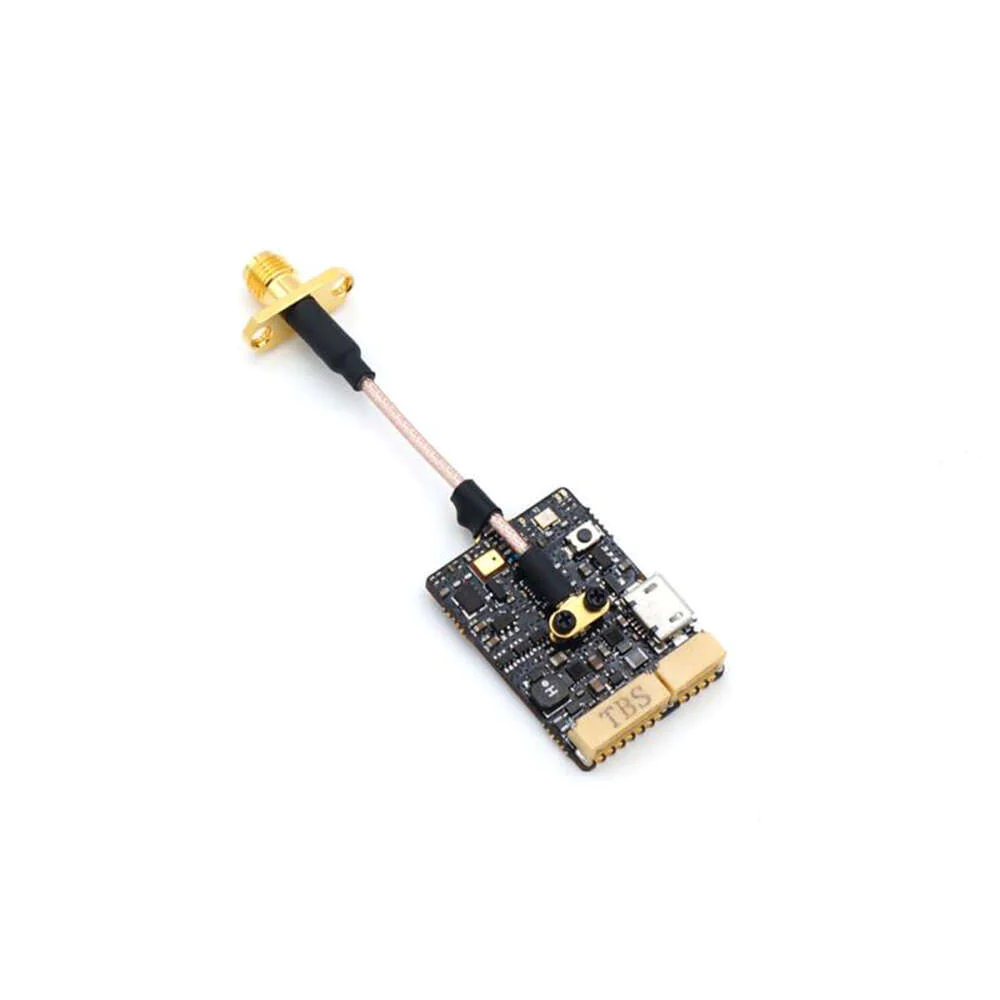

1x u.FL pigtail SMA

1x Power, Camera and CRSF cables
