Description

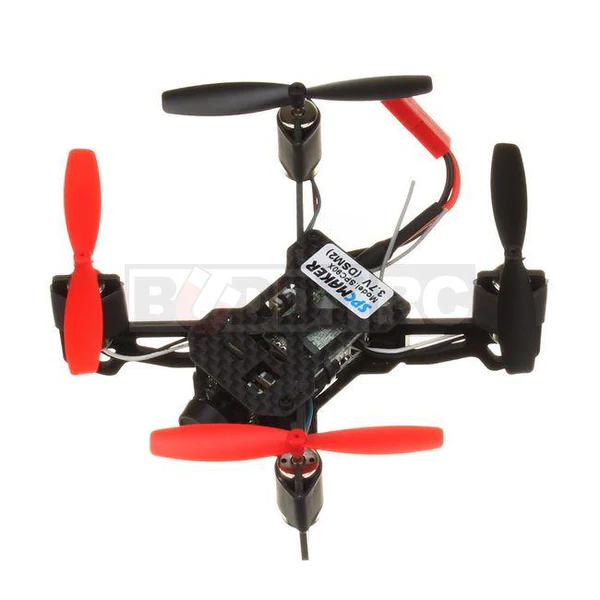

SPC Maker 90X FPV Racing Quad F3 Controller DSM2 Compatible Receiver 1S LiPo Versio

Product model: SPC 90 X

Motor type: 8520 brushed Flight control system: F3 EVO brush Image transfer:5,8G 25mw Wheel base of the fuselage:90 mm Material:3 K carbon fiber plate Recipient: DSM2 Size:74.5 * 74.5 * 80 mm

Weight of the fuselage:6, 5 g

Weight of the fuselage:55 g Length of the propeller:55mm

Frequency band: 5362-5945MH Channel: 48

Modulation type: FM Select channel: switch Channel display: CH1-CH8 channel display with 8 LEDs, and A-F frequency group display with 6 LEDs Transmit power: 13±1dBm Frequency control: PLL All harmonic: Max-50 dBm Frequency stability: ±100KHz(Typ.)

Frequency precision: ±200KHz (Typ.)

Channel disk failure: 1dB Antenna port: 50 Ω Input format: NTSC / PAL SENSOR: PAL: 720 × 540/NESC: 640 × 480 1/4 ” LENS ANGEL: H: 120 ° / V: 100 ° Baseband interface: P1, 27 * 2 Energy consumption: 200-215MA@5V DCIN

Supply voltage: 2.9-5, 5V Operating temperature:-10℃ ~ + 60℃ Profile dimension: 14, 5 mm × 12, 2 mm + 14, 5 mm × 12 mm

Products included: • 1 x SPC 90 X • 1 x 600TVL camera • 4 x 3, 7V 8520 Motor • 1 x DSM2 receiver • 1 x F3 EVO brush flight controller • 4 x 55mm propeller • 1 x 5,8G 25mw image transfer • 2 x 3, 7V 600mAh batter
