Description

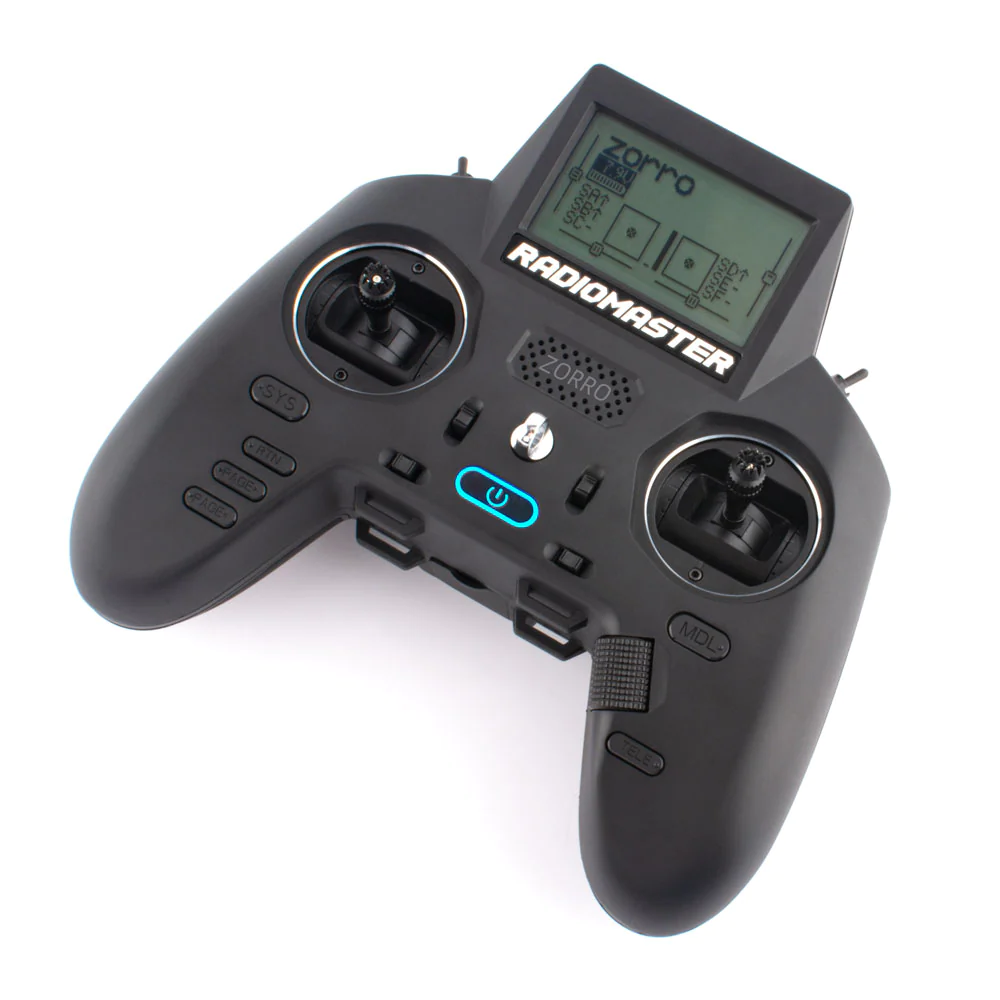

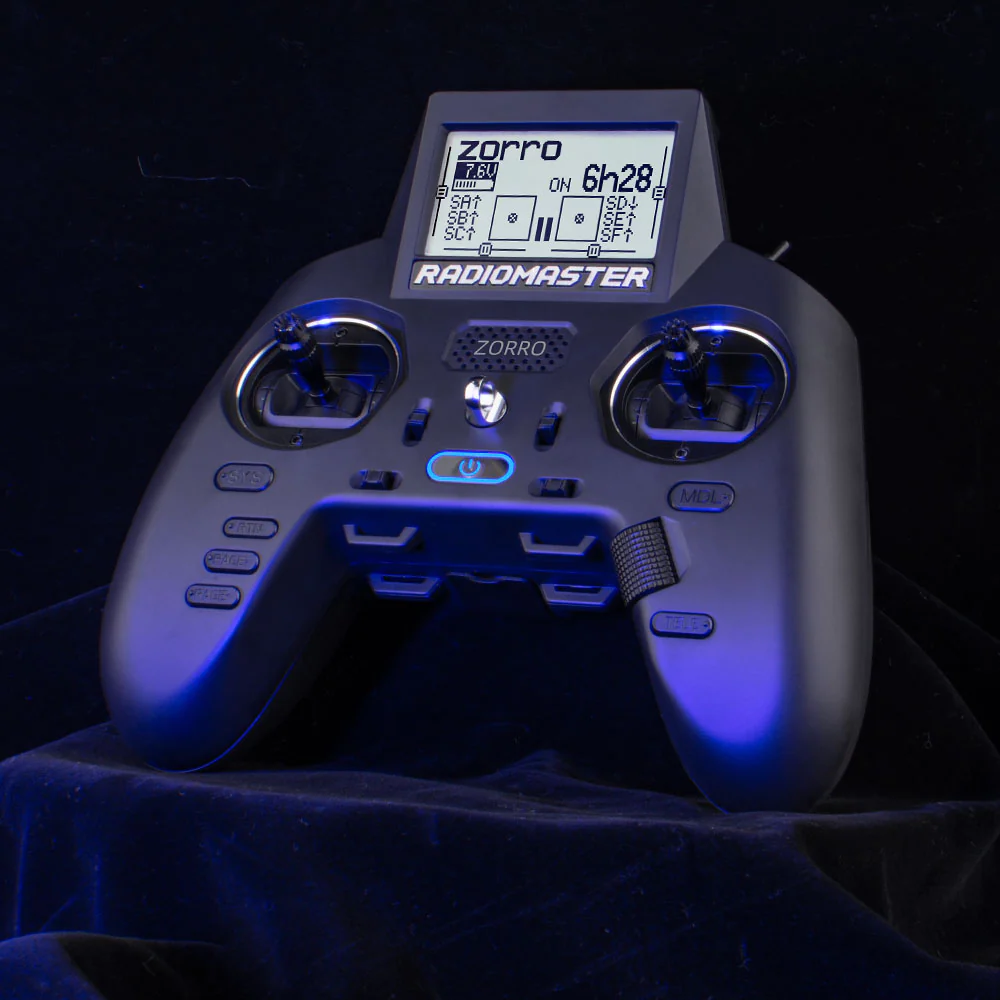

RadioMaster Zorro Transmitter

Physical dimensions：170*159*108mm

Weight：350 grams

Operating frequency：2.400GHz-2.480GHz

Internal RF Options：CC2500 multi-protocol / 4-in-1 multi-protocol / ELRS 2.4GHz

Supported protocols ：Module dependent

RF power：CC2500 and 4-in-1: 20dBm max. / ELRS: 22dBm max.

Antenna gain：Folding 2db

Operational current：160mA@8.4V

Operational voltage：6.6-8.4v DC

Control distance：> 2km @ 20dbm

Operating system：OpenTX / EdgeTX Compatible

Control channels：Maximum 16 (Rx dependent)

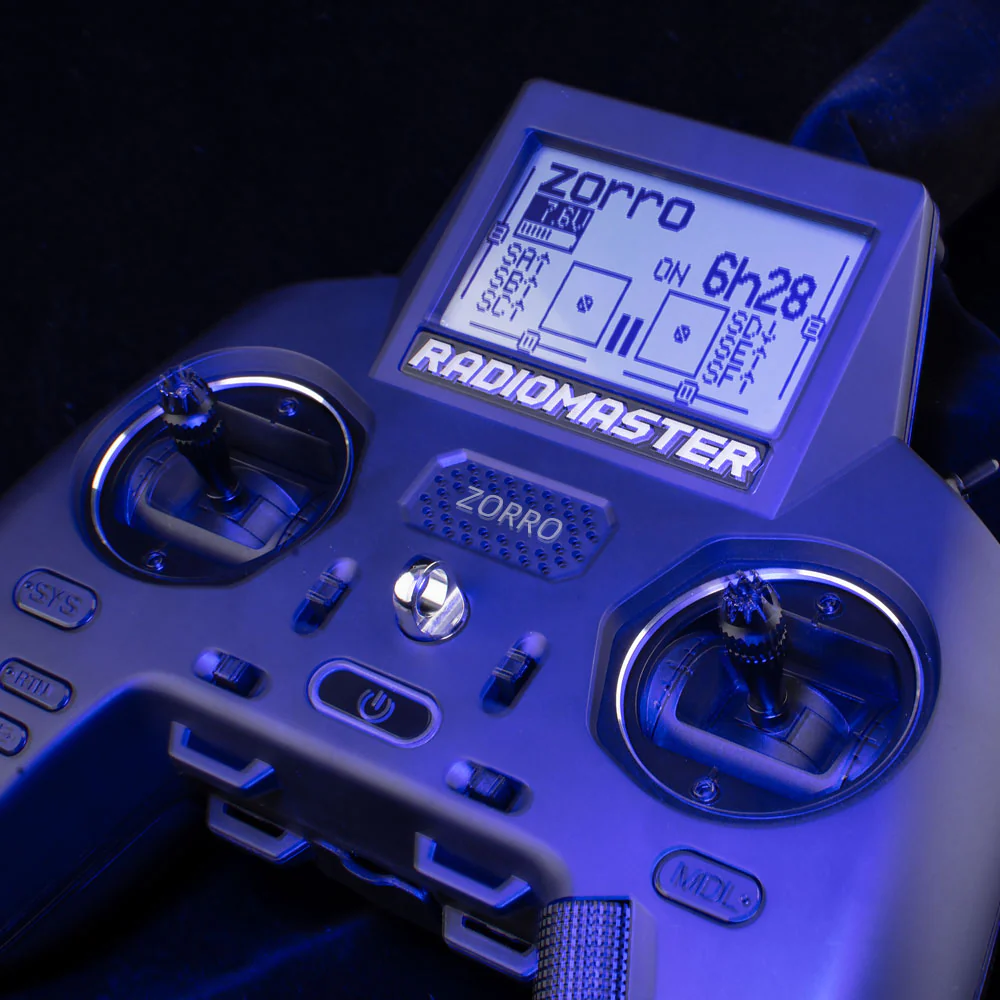

Display ：128*64 Monochrome LCD

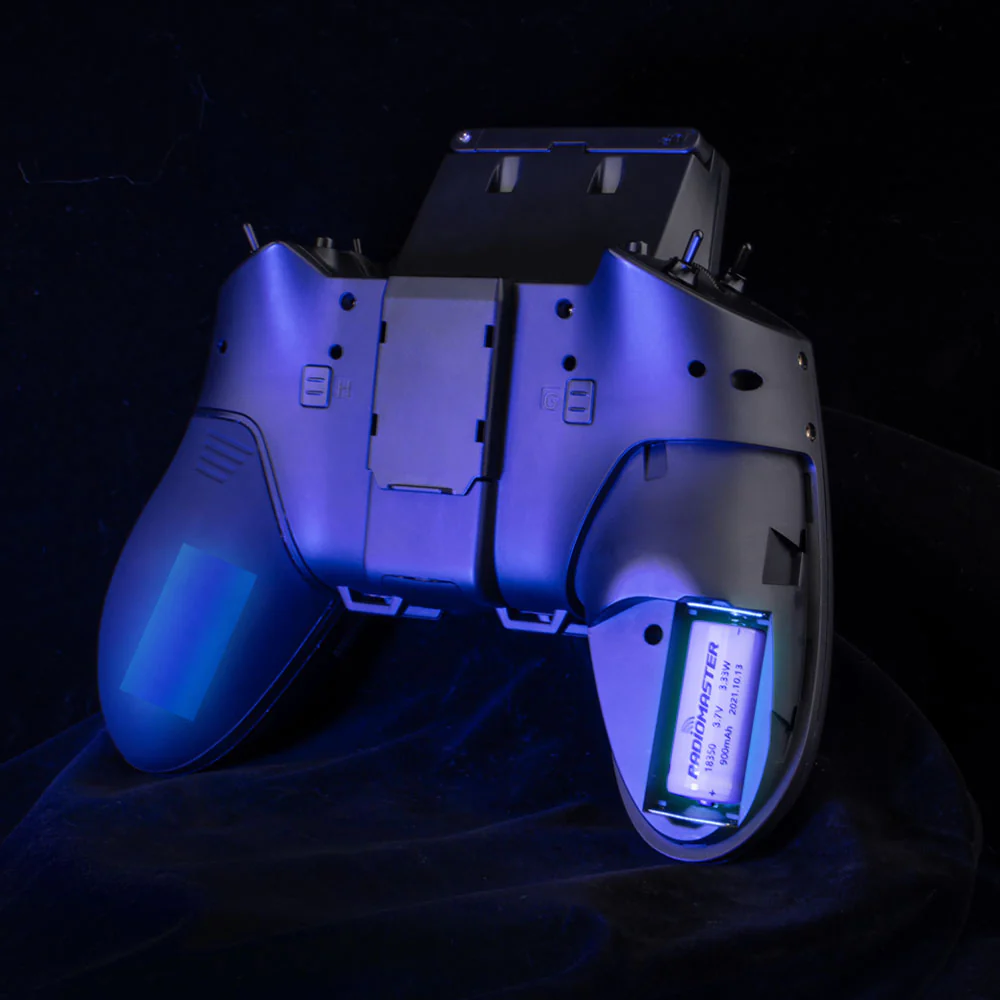

Battery ：2 x 18350 (Not included)

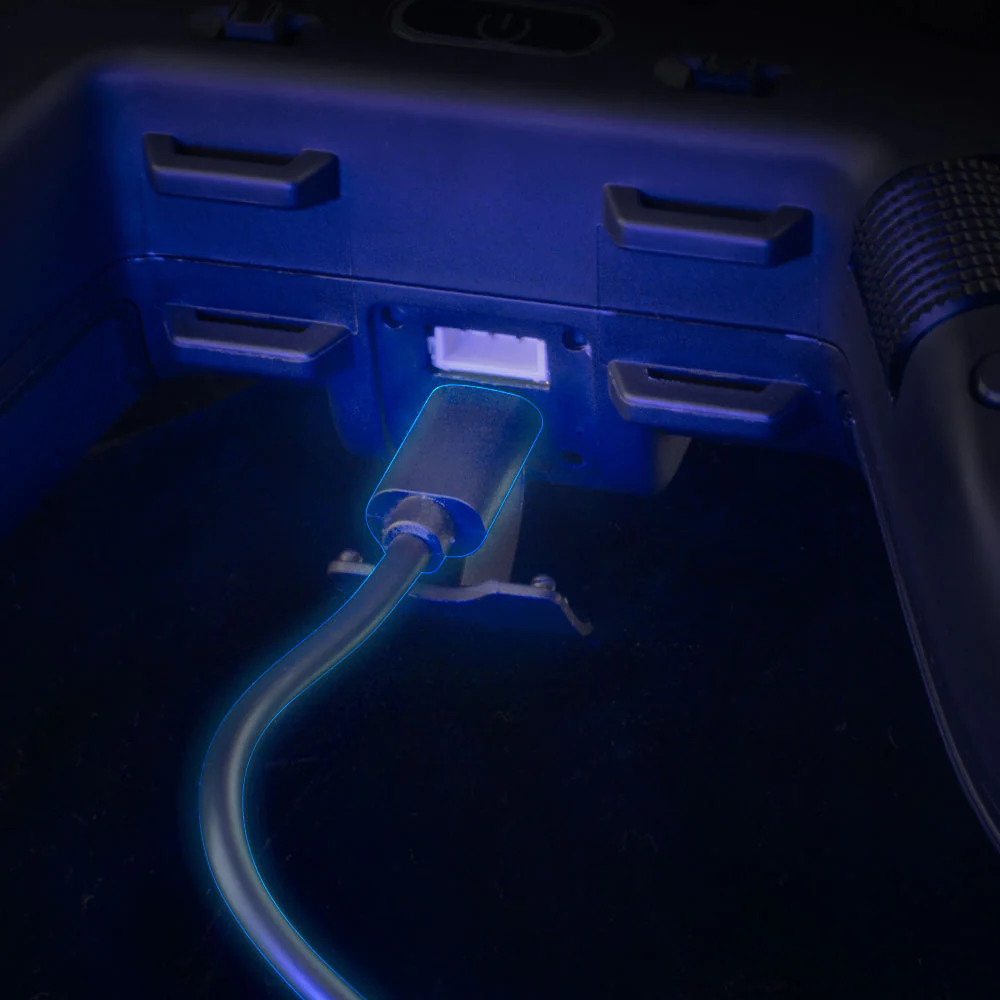

Charging ：Built in USB-C Charging

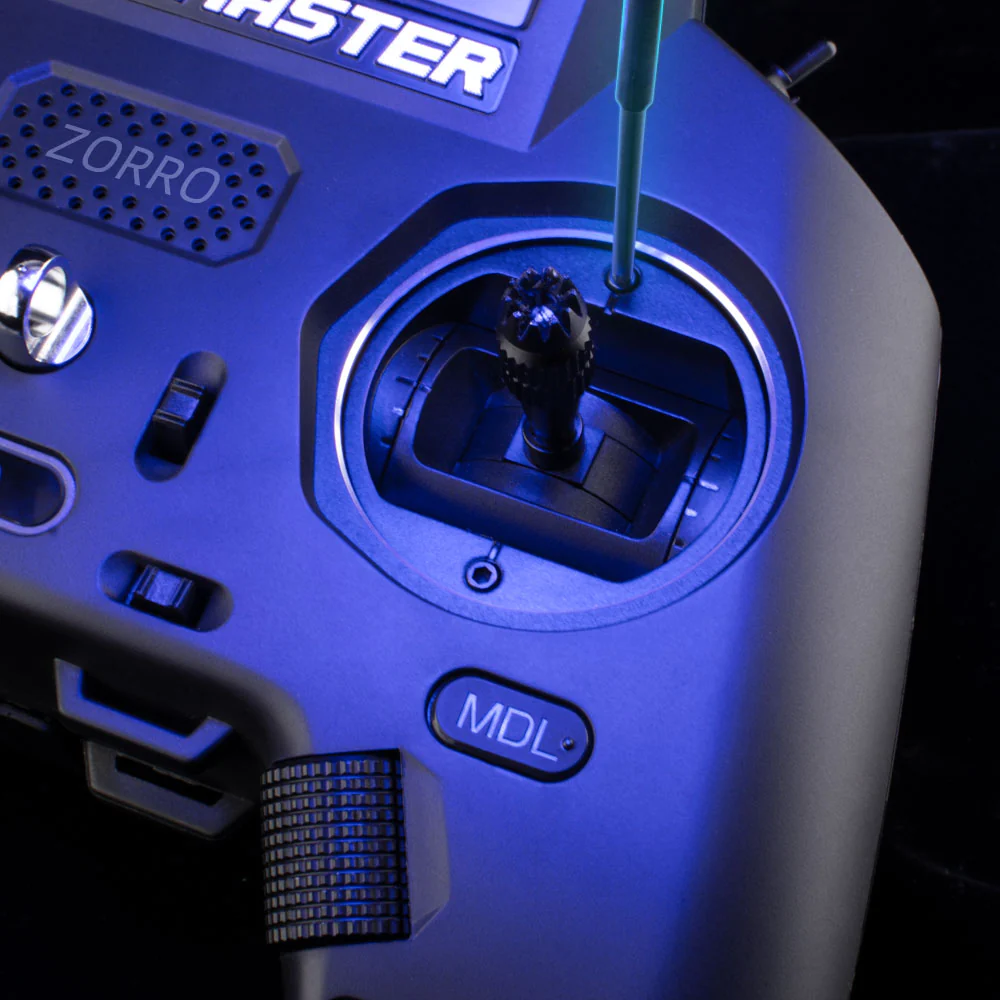

Gimbal：Hall-effect

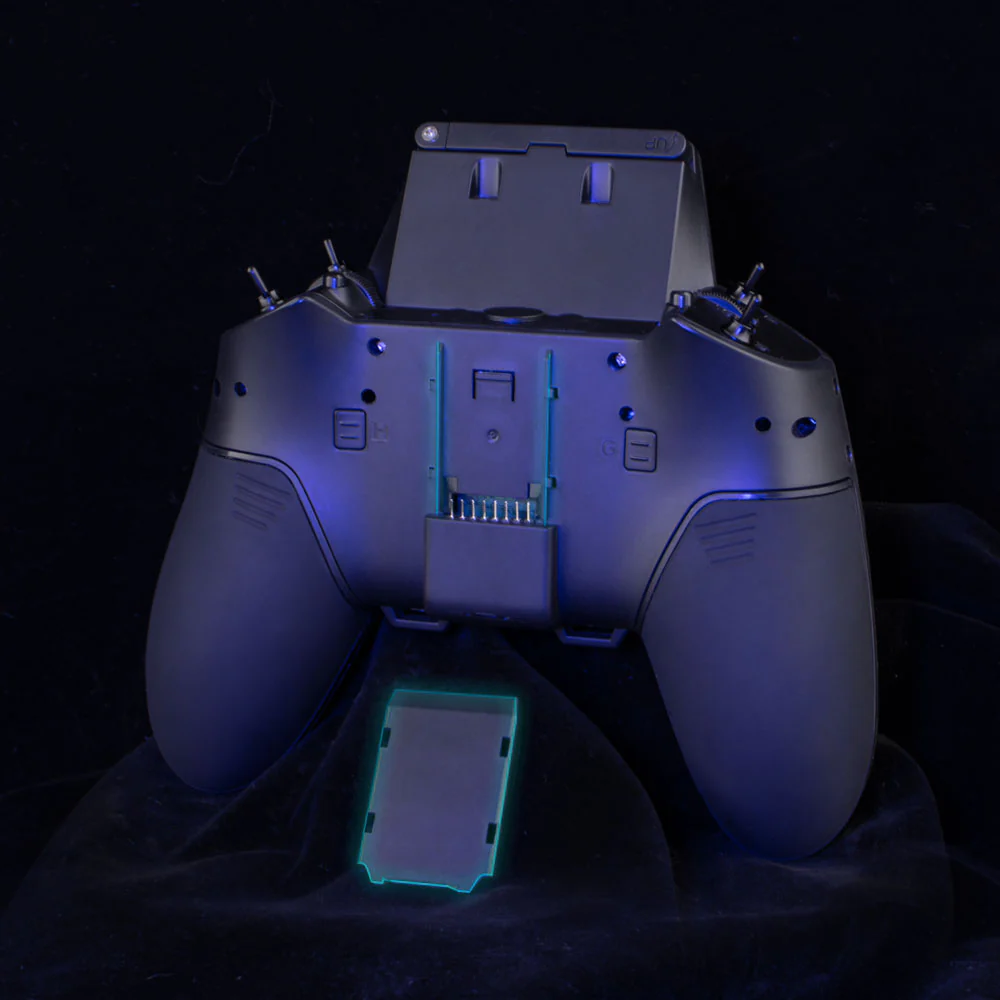

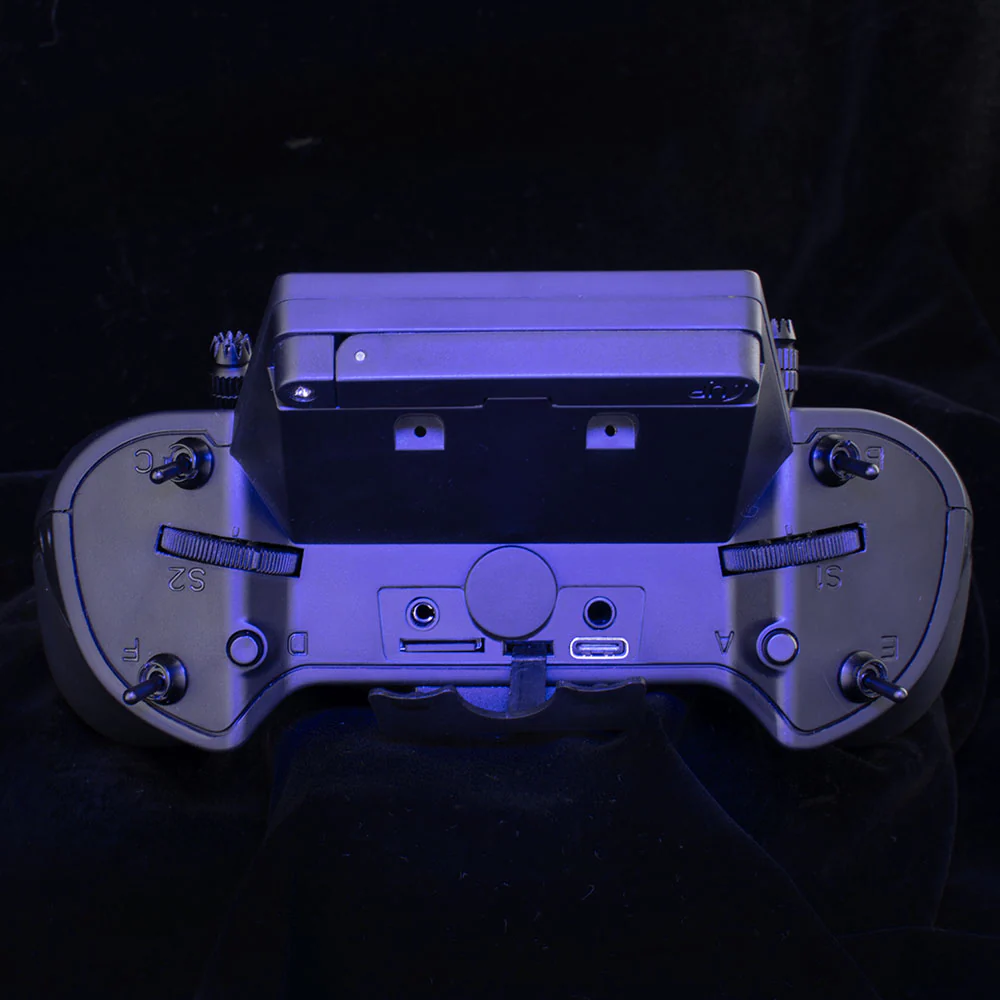

Module bay ：Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)

Firmware Upgrade method：Via USB or SD card (SD Not included)

Radio Firmware:

https://www.open-tx.org/

http://edgetx.org/

RF Firmware

CC2500 & 4-in-1 Multi-module https://www.multi-module.org/basics/supported-protocols

ELRS : –https://github.com/ExpressLRS/ExpressLRS
