Description

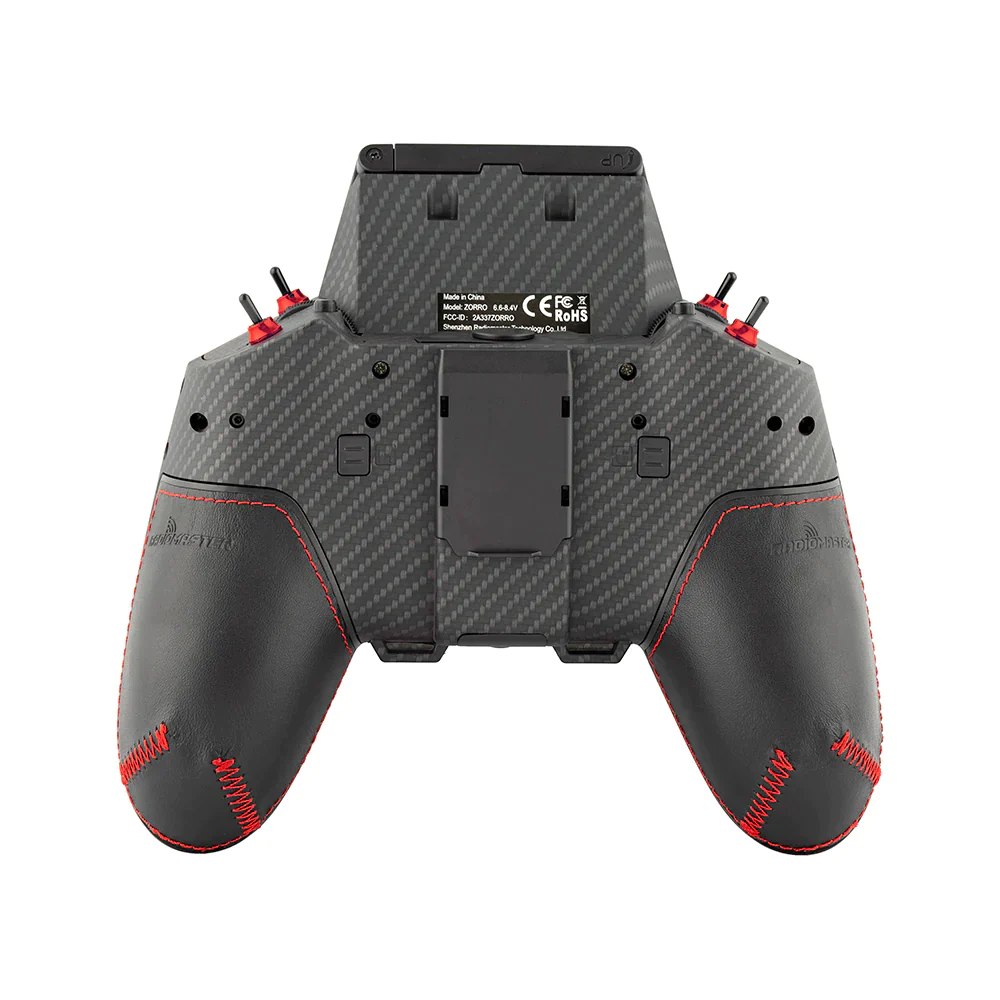

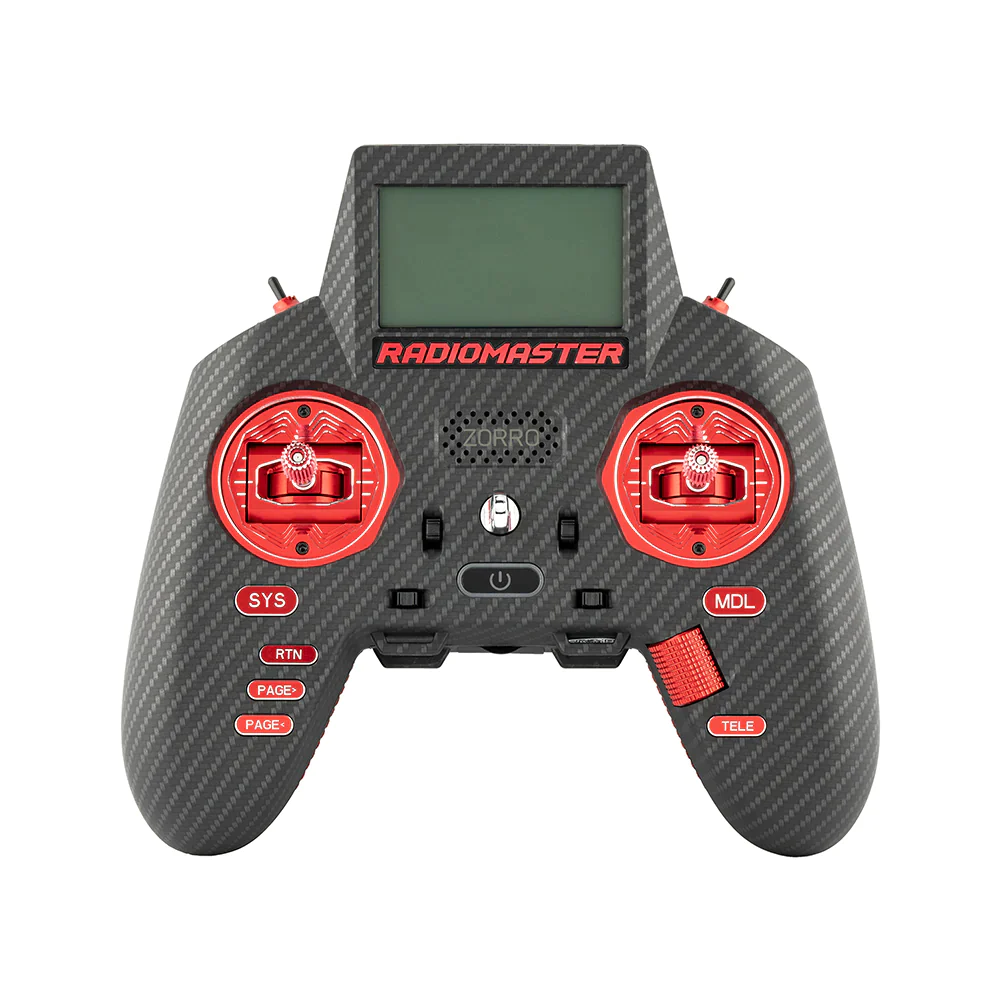

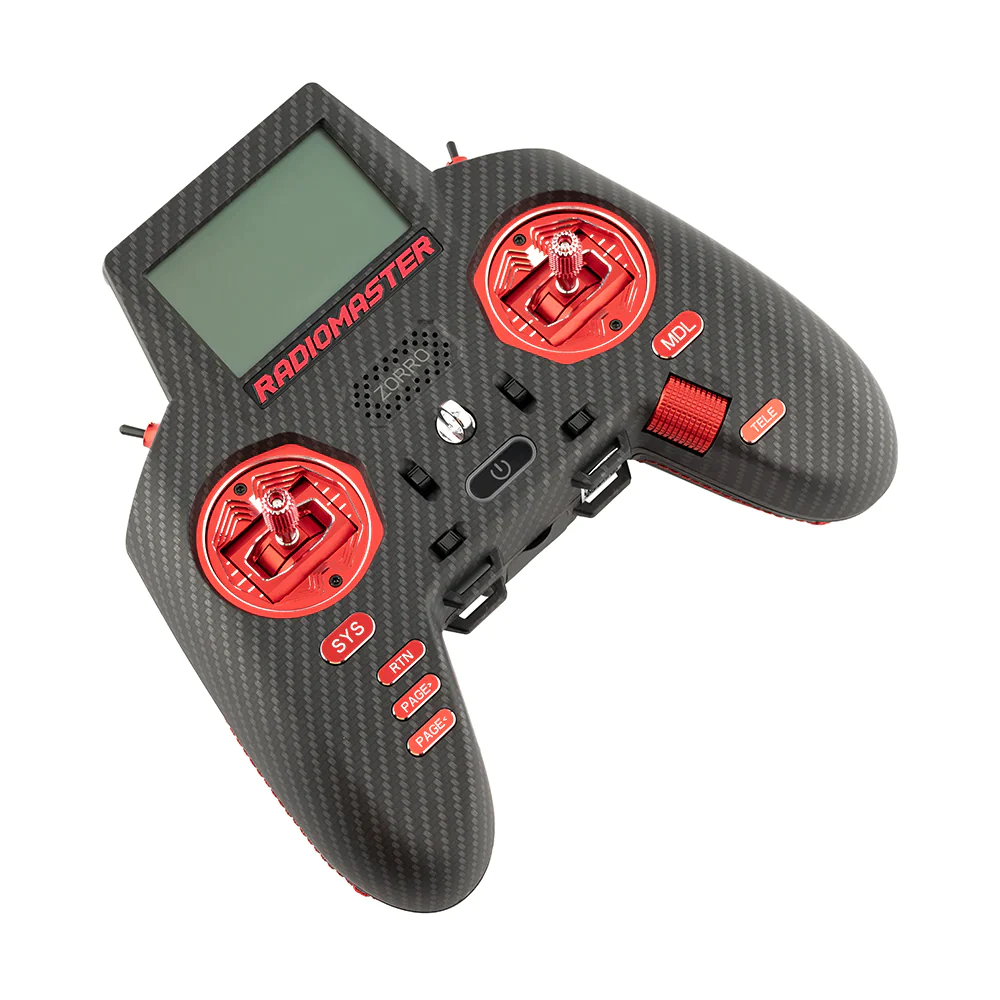

RadioMaster Zorro Max Transmitter 4 in 1 Radio Controller

Features

Optional 4 colors – Red/Blue/Gold/Black

AG01 MINI hall gimbals installed

Carbon Fiber pattern body

Improved CNC parts as standard

Upgraded Black Leather Grips

External Module Bay for use with Crossfire / EL RS and other compatible modules

Available in 4in1 and ExpressLRS Versions

Supports OPENTX & EDGETX

18350 Battery Compartments

Oversized LCD with adjustable brightness for any environment

Specification

Item: Zorro Max Radio

Color: Red / Blue / Gold / Black

Gimbals: AG01 MINI Gimbals

Physical Dimensions: 170*159*108mm

Weight: 350 grams

Operating Frequency: 2.400GHz-2.480GHz

Internal RF Options: 4-in-1 multi-protocol / ELRS

Supported Protocols: Module dependent / ELRS

RF Power: 4-in-1: 20dBm max. ELRS: Up to 250mw ( CE & FCC Versions will be available)

Antenna Gain: Folding 2db

Operational Current: 160mA@8.4V

Operational Voltage: 6.6-8.4v DC

Control Distance: 4-in-1:> 2km @ 20dbm / ELRS: Receiver and Power Output dependant

Operating system: OpenTX / EdgeTX Compatible

Control channels: Maximum 16 (Rx dependent)

Display: 128*64 Monochrome LCD

Battery: 2 x 18350 (Not included)

Charging: Built in USB-C Charging

Module Bay: Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)

Firmware Upgrade Method: Via USB or SD card

Package Includes

1 * Zorro Max Radio

1 * Screen Protector

1 * USB-C Cable

1 * Stickers

1 * Manual
