Description

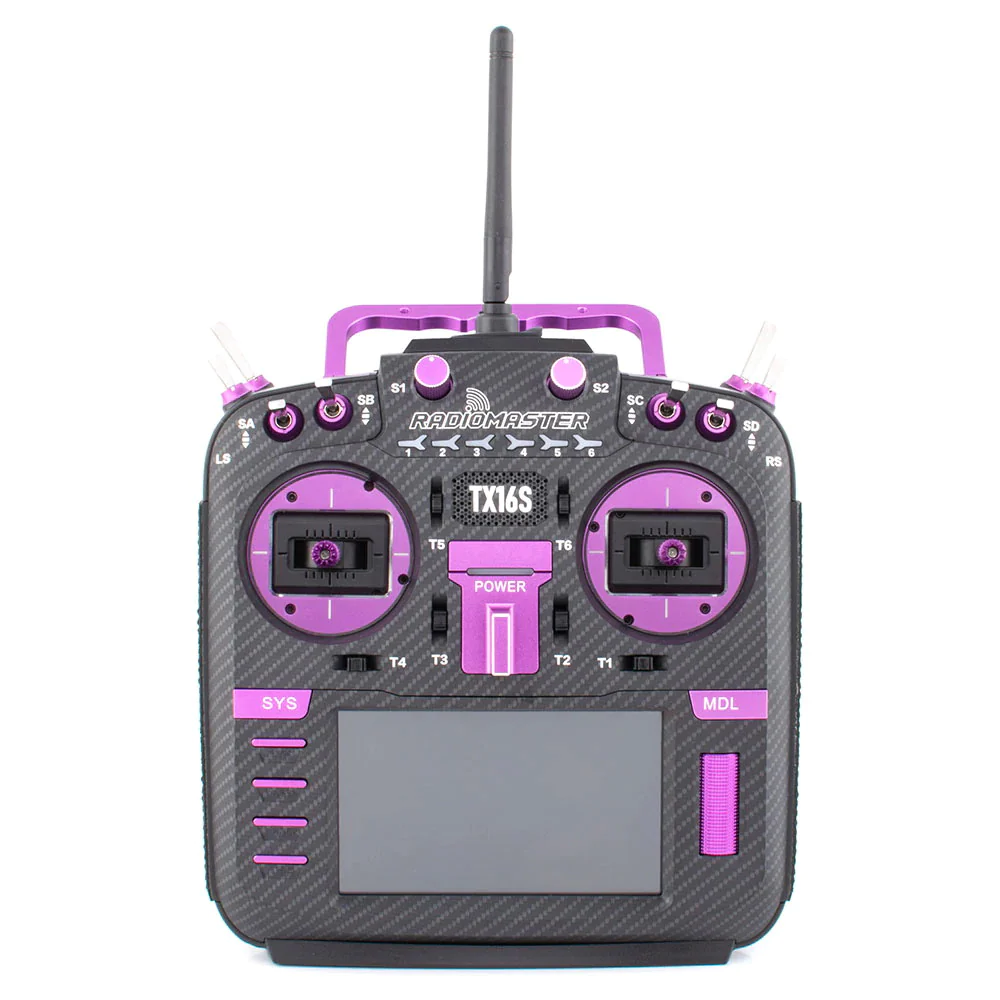

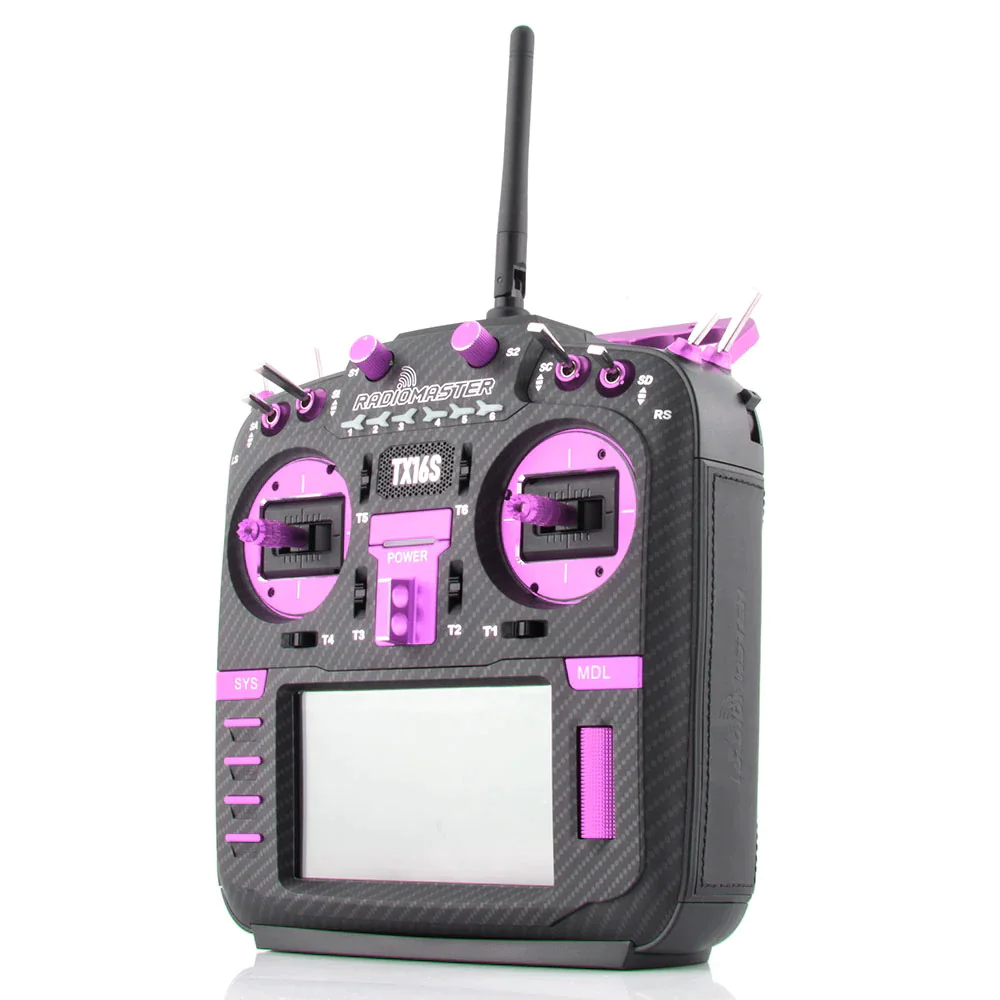

Introducing the RadioMaster TX16S Mark II Max Radio Controller, now available in the Joshua Bardwell Edition. This high-performance JB radio features a carbon fiber faceplate and purple CNC parts, as well as a V4.0 hall gimbal, making it an affordable option for everyone.

Key Features:

Improved internal circuitry and optimized power supply

New charge circuitry with integrated reverse-polarity protection

Optimized charge IC now allows up to 2.2A internal USB-C charge current

Rear-mounted audio jack provides headphone output

V4.0 Gimbal improves centering and temperature stability (same circuitry as AG01)

Optional high/low rear grips included for improved ergonomics

Improved S1/S2 knobs with clear center-detents

Improved LS/RS Sliders with smoother feel and better center-detents

Redesigned battery cover for improved battery access

Retooled body shell with improved fit and finish

Trainer socket changed to standard TRS 3.5mm socket

Rear DIY Socket added for personalized mods

Improved internal plastics for better longevity

Specifications:

Size: 287x129x184mm

Weight: 750g (without battery)

Transmission frequency: 2.400GHz-2.480GHz

Transmitter module: Internal ELRS (SX1280)

Transmitting power: Internal ELRS: Max 250mw (transmitting power is adjustable)

Antenna gain: 2db (transmit power adjustable)

Working current: 400mA

Working voltage: 6.6-8.4v DC

Remote control distance: >2km @ 22dbm

Radio firmware: EdgeTX

Module Firmware: ExpressLRS (ELRS)

Channels: Up to 16 channels (depending on the receiver)

Display: 4.3-inch TFT full-color touch display with a resolution of 480*272

Gimbal: V4.0 Hall sensor with aluminum fascia

Module Bay: JR compatible module bay

Upgrade method: Supports USB-C online / SD card offline upgrade

Supports EdgeTX and OpenTX

EdgeTX is installed by default (Touch screen enabled)

Requires EdgeTX version 2.6.0 or OpenTX version 2.3.15 or later.

ELRS versions by default

Why ELRS? Check the reviews by OscarLiang

“If you can’t decide between ELRS and 4in1, I’d probably go for the ELRS version. It’s going to be the major RC protocol in the near future as it’s so powerful and affordable, with a wide range of tiny and inexpensive ELRS receivers available.

One reason to get the 4in1 is if you only want to use other protocols such as Frsky D8/D16, but these are kind of obsolete and slowly phasing out. Or if you are buying an external ELRS module for the radio, then it also makes sense to get the 4in1 as you don’t want to have another ELRS module onboard doing nothing. An external ELRS module might have the advantage of higher maximum output power of up to 1W. But honestly the internal module’s 250mW is plenty for FPV pilots, giving you miles of range in ideal conditions. ”

V4.0 Hall Gimbals

Standard version with V4.0 Hall Gimbals, same chipset as the AG01, optimized hall sensor circuitry, improves center point positioning and temperature stability. Stick travel, self-centering and stick tension are now externally adjustable

Flat & Raised Grips Included

Both the raised and flat versions of the rear grips are included allowing you to customize the feel of your TX16s MKII right out of the box.

Built-in dual speakers

External Module Bay

The TX16s natively supports Team Black Sheep MicroTX modules in CRSF mode with LUA scripts. Best of all the TX16s Internal 4-in-1 Multi-protocol module allows you to keep the MicroTX installed and switch between internal RF and Crossfire via software, no more module swapping.

Easy Firmware Updates
