Description

Highlighted Features:

True diversity dual antennas with independent processor for monitoring signal on both antennas

Antennas extended for carbon fuselage/metallic structure installation

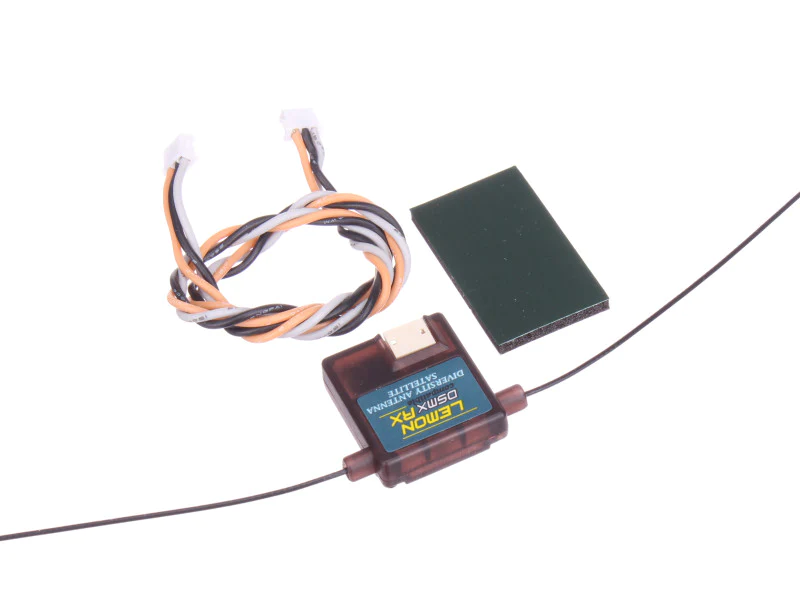

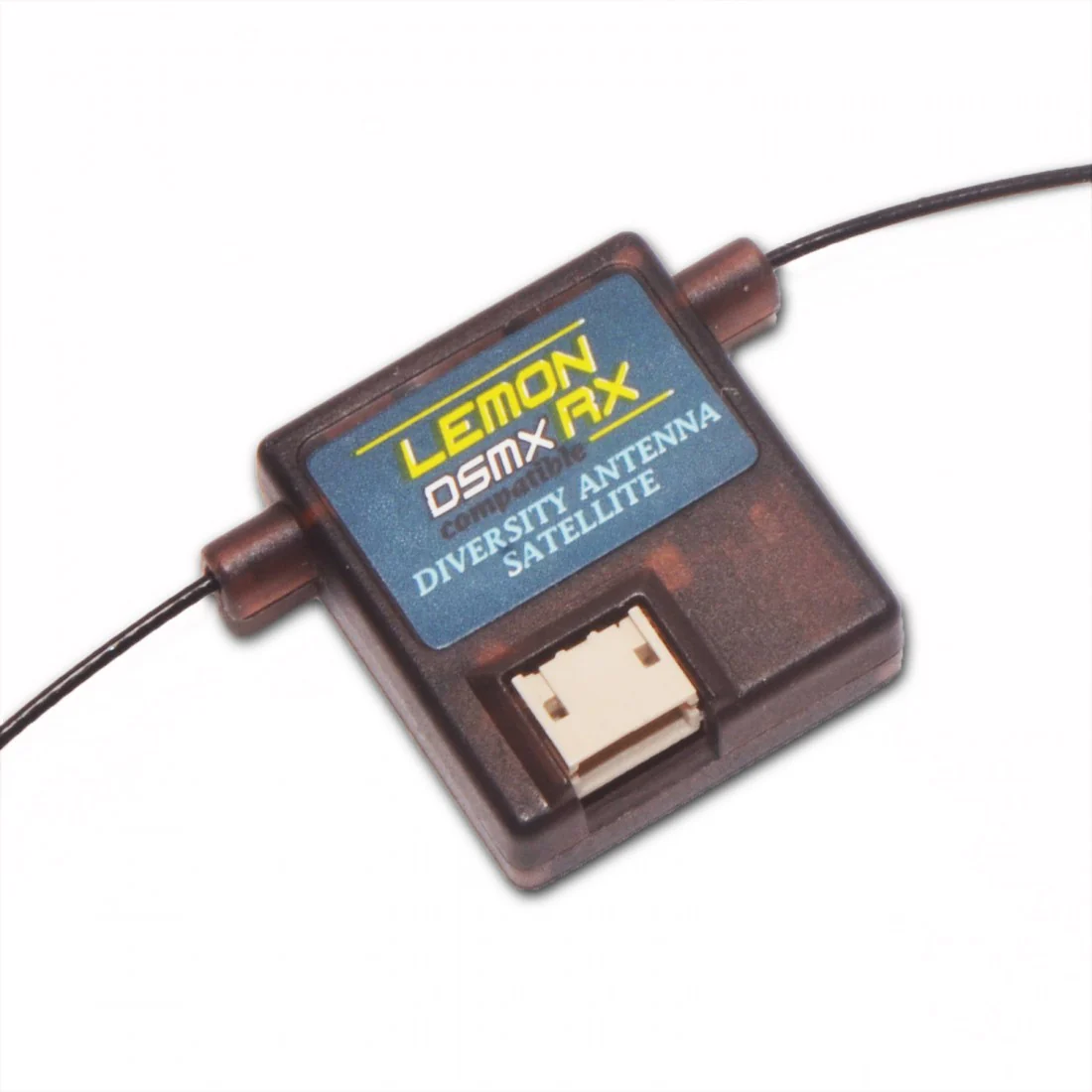

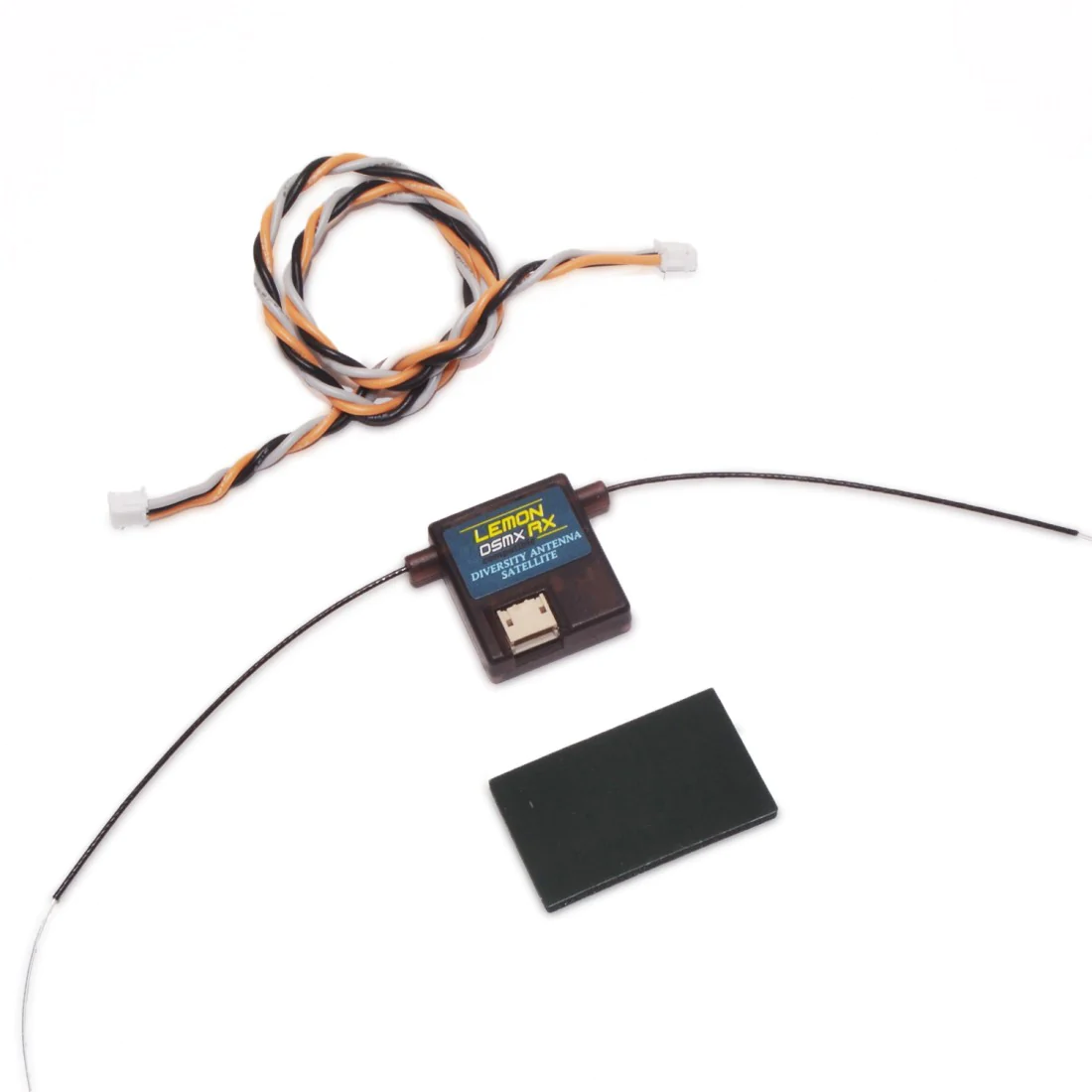

Specifications: Type: DSMX Compatible Full Range Receiver with Diversity Antenna Modulation: DSMX Compatible (Also DSM2 backward Compatible) Band: 2.4 GHz Dimensions: 22(L) x 19(W) x 7(H) mm Weight: 2.73g Voltage Range: 3.3V from Receiver

RCgroups Discussion: Check out the Lemon 2020 Receiver Thread on RCgroups to learn more about the product and see what other users have to say.

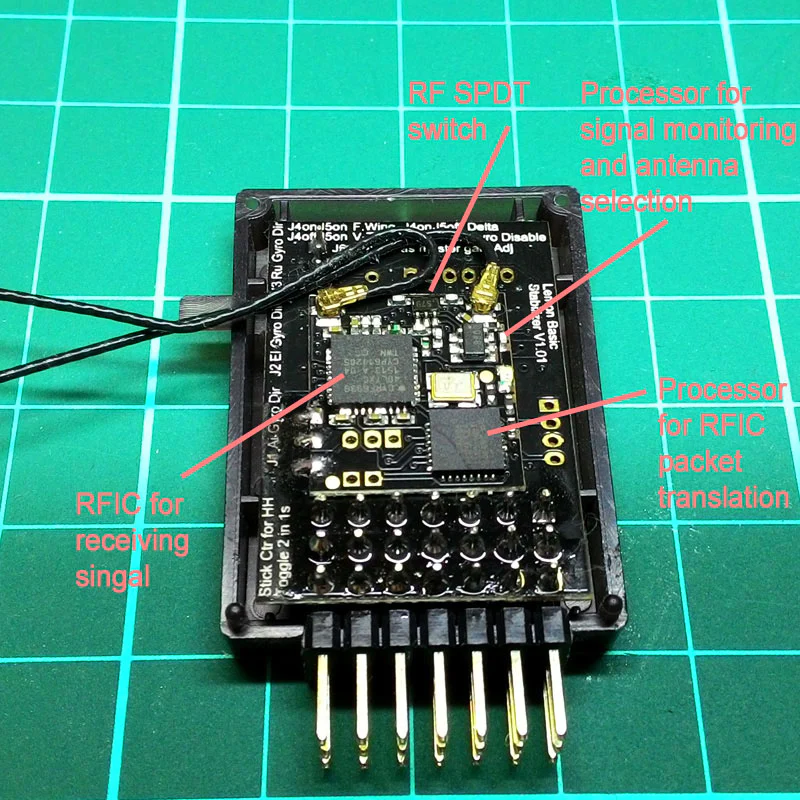

How Dual Antennas Work: The independent processor of the Lemon Rx DSMX compatible Full Range Receiver monitors the incoming signal and chooses the appropriate antenna for reception. This allows for two different locations for installing the antennas, along with different orientations, without needing a satellite receiver for diversity. This greatly reduces weight and increases overall reliability compared to using a primary receiver with a satellite receiver. The photo below shows the diversity receiver for an end-pin stabilizer, which is the same diversity receiver used in this product.

Note:

This product is not a Spektrum DSMX or DSM2 product, nor is it a copy of a Spektrum DSM2 or DSMX product. The Spektrum, DSMX, and DSM2 brands are trademarks of Horizon Hobby, Inc.

Lemon Rx guarantees the quality of its products and is not an underground black market fake Spektrum product.

Lemon Rx products are tested to be compatible with Spektrum’s DSMX and/or DSM2 products. (Spektrum, DSMX, and DSM2 are registered trademarks of Horizon Hobby, Inc.)
