Description

Specification:

Type: Lemon Rx DSMP 6-Channel Receiver (End-Pin, DSMX/DSM2 compatible) Number of Channels: 6 Modulation: DSMP (DSMX/DSM2 compatible) Band: 2.4 GHz Dimensions: 30 (L) x 18 (W) x 11 (H) mm Weight: 4.43g Voltage Range: 3.45 – 8.4 V

Based on the Lemon Rx latest DSMP with SDR (software defined radio) technology, this receiver, along with an extended antenna, provides exceptional performance for foamie to carbon fuselage glider with exceptional performance.

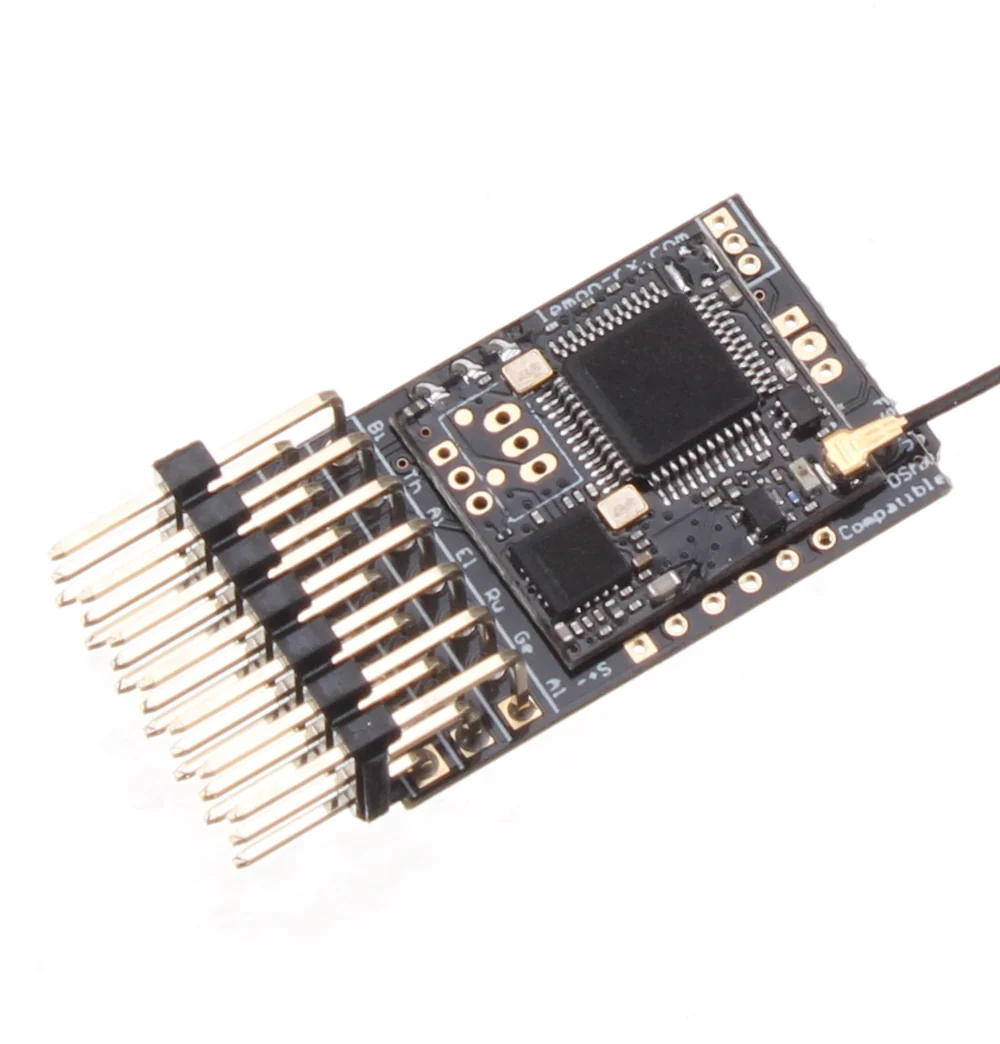

Understanding the receiver (Showing DSMX 6-channel non-diversity receiver):

Binding:

Plug the bind plug into the receiver.

Provide power to the unit. The LED flashes quickly.

Enable bind mode in the transmitter and ensure a distance separation of 2 meters from the receiver. A solid LED light means binding is completed.

Remove the bind plug.

Bind the receiver and do not remove the bind plug.

Upon successful binding, set the transmitter sticks/channels to the desired failsafe position.

Press the side pushbutton to save the current position in failsafe mode.

Check for a green light on. A green light on indicates failsafe is successfully enabled.

Remove the bind plug and power cycle the receiver.

Bind the receiver and do not remove the bind plug. If the green light is on, Failsafe is currently enabled, pressing the side pushbutton will disable Failsafe.

Check for the green light off, indicating Failsafe disabled.

Remove the bind plug and power cycle the receiver.

Notes:

This is not a Spektrum DSMX or DSM2 product, nor is it a copy of a Spektrum DSM2 or DSMX product. The Spektrum, DSMX and DSM2 brand is a trademark of Horizon Hobby, Inc.

This is not an underground black market fake Spektrum product. Lemon Rx quality is guaranteed.

Lemon Rx products are tested to be compatible with Spektrum’s DSMX and/or DSM2 products (Spektrum, DSMX and DSM2 are the registered trademarks of Horizon Hobby, Inc.).
