Description

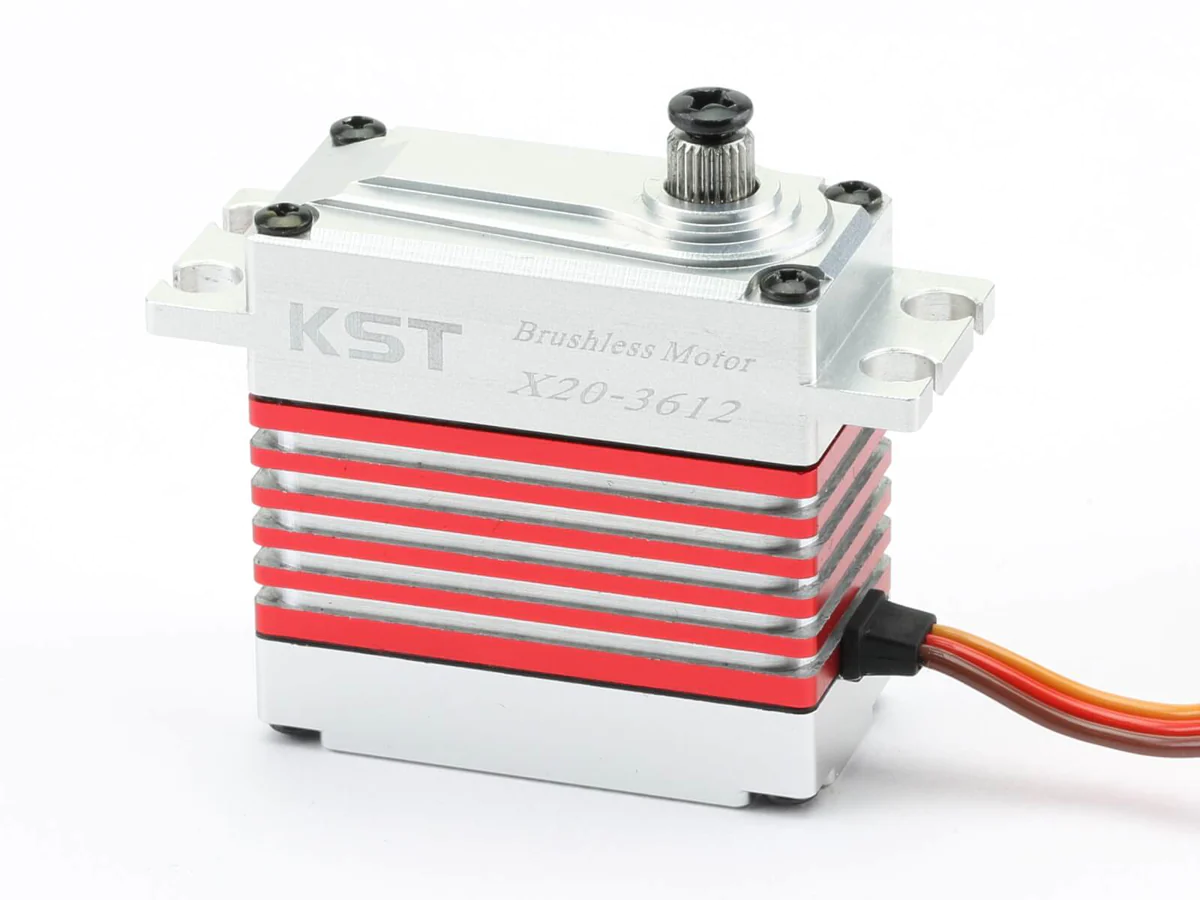

The KST X20-3612 digital brushless servo is a high-performance servo with a precision metal gearbox and a rugged aluminum housing. It is a powerful option for Big Scale and Jet models due to its fast positioning times and perfect reset accuracy.

KST is known for producing fast, powerful, and accurate servos with high-quality workmanship, making the X20-3612 a reliable choice for your RC needs.

Features:

Brushless motor

Metal gear unit

Double ball bearing mounted

Relatively low weight

Technical details:

Operating voltage (max.): 6.0-8.4V

Torque (kg/cm) @4.8V: N/A

Torque (kg/cm) @6.0V: 28.0

Torque (kg/cm) @7.4V: 36.0

Torque (kg/cm) @8.4V: 40.0

Speed (s/60°) @4.8V: N/A

Speed (s/60°) @6.0V: 0.150

Speed (s/60°) @7.4V: 0.120

Speed (s/60°) @8.4V: 0.110

Breadth: 20.0mm

Length: 40.5mm

Height: 42.0mm

Weight: 78.0g

Motor type: Brushless

Frequency: 1520us/333Hz, 900us-2100us

Gear: Metal

Bearing: 2BB

Spline: H25T/3F

Type: Standard

Electronics: Digital

Sensor: Potentiometer

Waterproof: No

Manufacturer: KST

Scope of delivery:

1 x KST X20-3612 servo

Various plastic rudder horns

Various fastening and securing screws
