Description

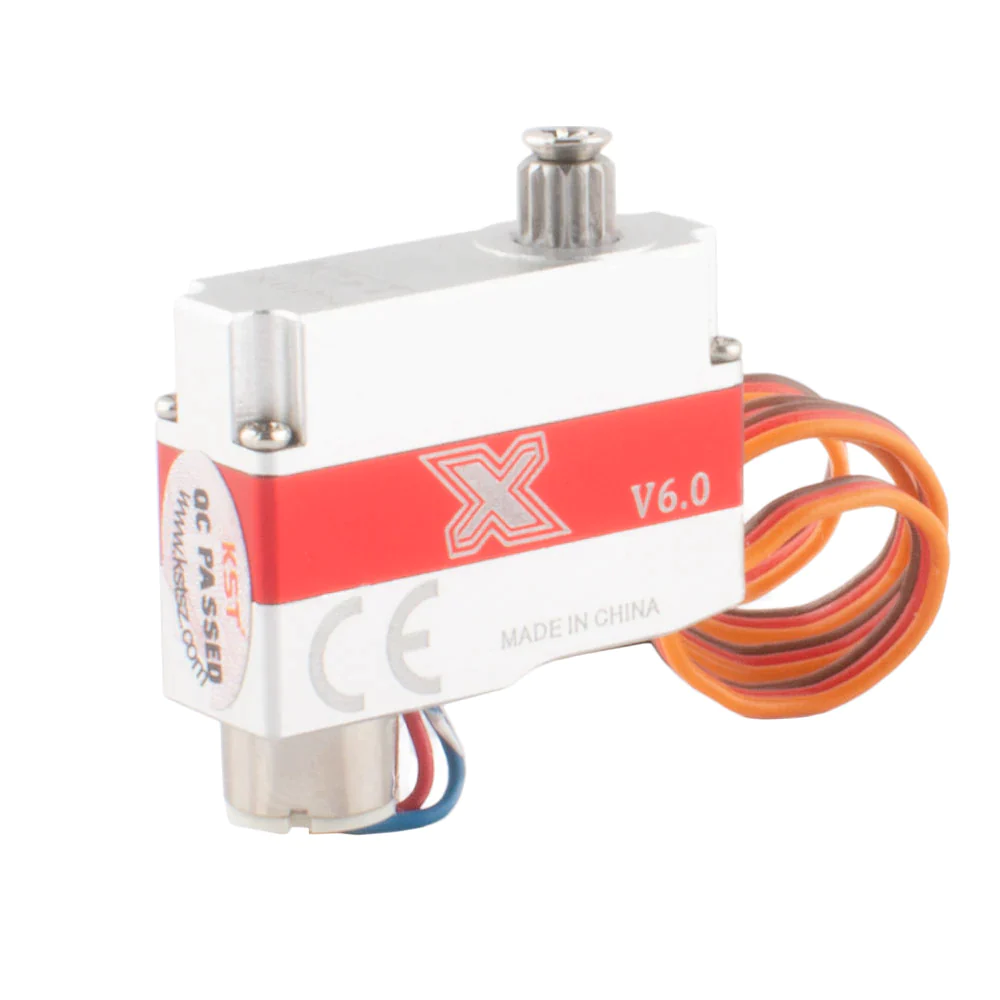

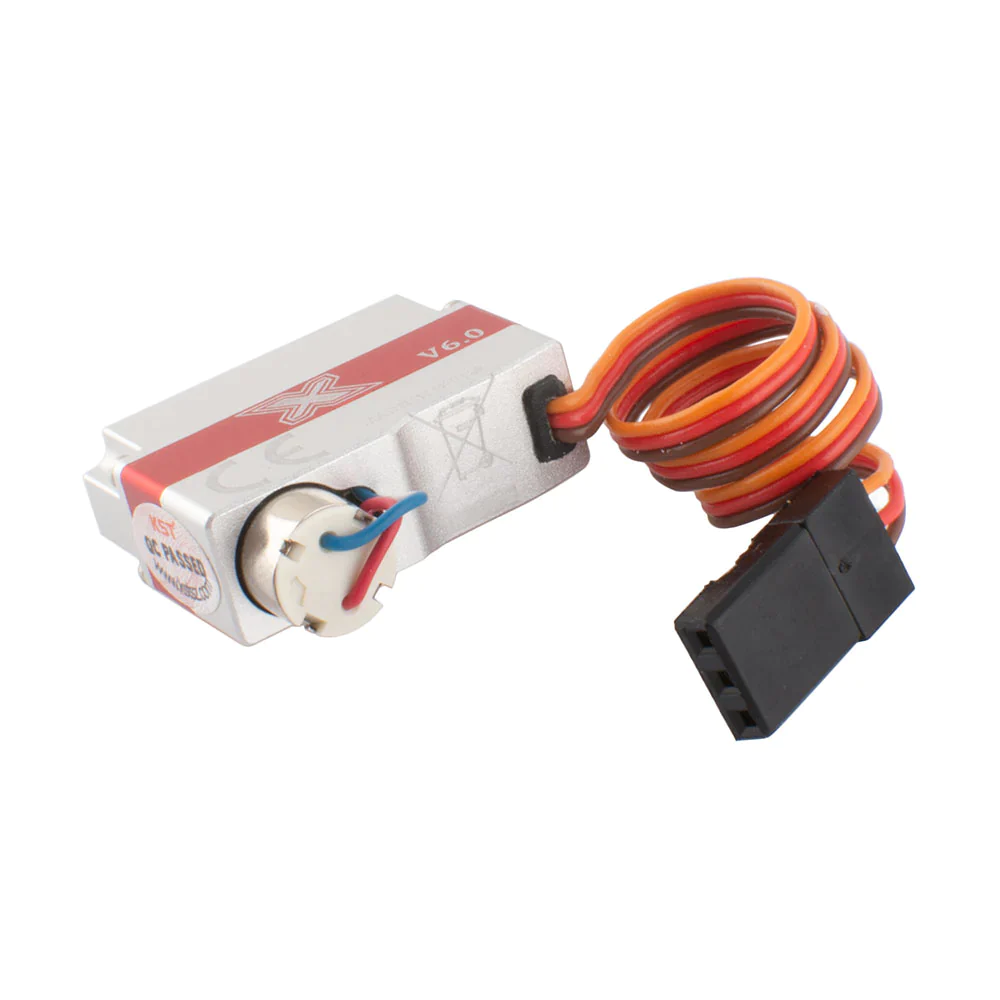

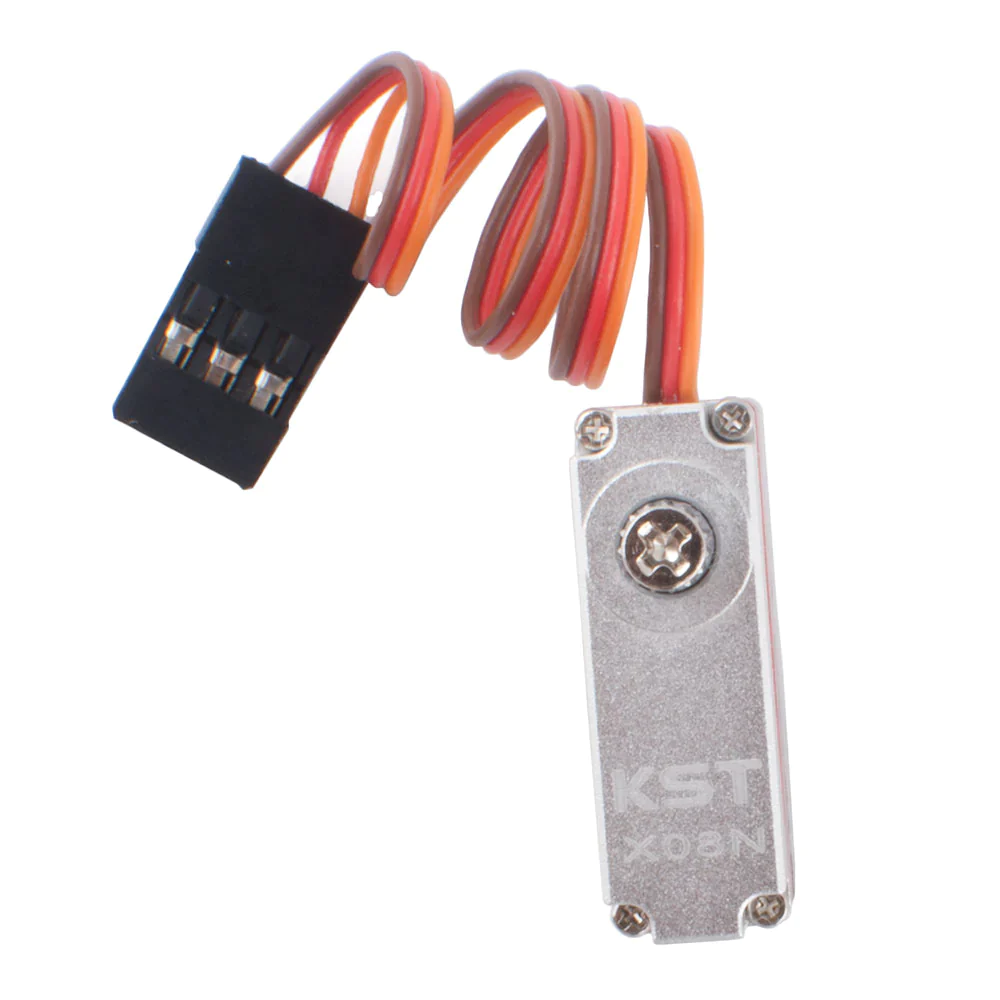

KST X08N Metal Gear Digital Micro Servo 2.8kg.cm 0.09sec for RC Gliders

This is the N or tabless version of the X08 V6.0. The tabless version allows you to install the servo in tight spaces directly with glue, without having the cut the tabs off yourself. Especially useful in fuselages where space is at a premium.

The KST X08 v5’s have been the de facto DLG servo for the past several years, delivering robust and precise performance at a very attractive price. V6 takes it another step forward by not only further improving the gearset to minimize potential slop, but the servos are now programmable with the KST Tool #1 (sold separately) to adjust the endpoints, centre, and direction for the perfect installations.

KST’s continual strive for performance has resulted in the KST X08, with 1us resolution and deadband, the X08 is the most precise servo made by the company. At an incredible 8 mm thickness and very small overall dimensions, this servo will fit in any tight space you want.

To meet the demands of DLG pilots, the KST X08 is designed from the ground up to be 1s and 2s LiPo compatible, making it possible for the pilot to choose any number of battery configurations to suit personal preference.

Features

Compact and lightweight design

Excellent torque and speed

Designed for high-performance RC Gliders

Excellent heat dissipation

Specification

Item: X08N Micro Servo

Rated Voltage: DC7.4V

Voltage Range: DC3.8V-8.4V

Torque: 1.4kg.cm@3.8V, 2.2kg.cm@6.0V, 2.8kg.cm@8.4V

Speed: 0.18sec/60°@3.8V, 0.15sec/60°@6.0V, 0.09sec/60°@8.4V

Working Frequency: 1520us/20KHz

Default Travel Angle: ±60° = 120° Total

Temperature Range: -10℃……+65℃

Soft Start: Yes

Programmable: Yes

Case Material: Aluminum Alloy

Motor Type Coreless: DC Motor

Gear Set Material: Hardened Steel

Position Sensor: Potentiometer

Case Dimensions: 23.5*8*16.8mm±0.2mm

Weight: 8g±10%
