Description

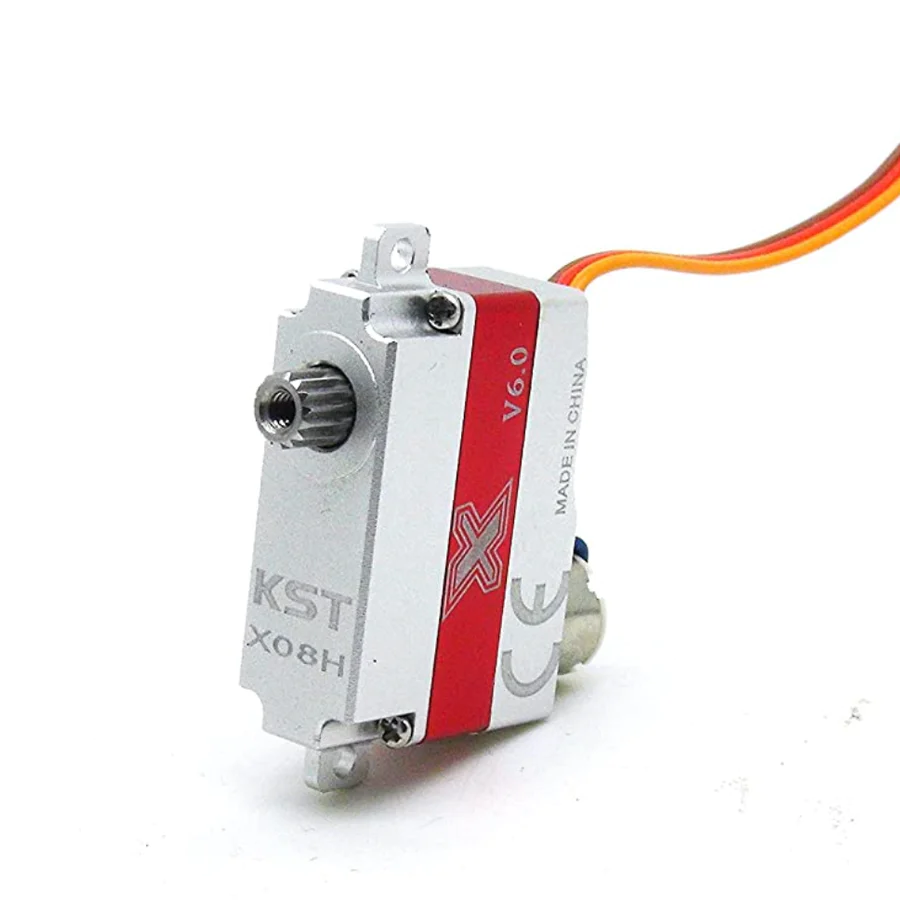

Product: KST X08H V6.0 Digital Servo 8.4V 0.09s 2.8kg.cm 38oz.in

Specifications:

Rated Voltage: DC7.4V

Voltage Range: DC3.8V-8.4V

Torque:

1.4kg.cm@3.8V, 14N.cm@3.8V

2.2kg.cm@6.0V, 22N.cm@6.0V

2.8kg.cm@8.4V, 28N.cm@8.4V

Speed:

0.18sec/60°@3.8V

0.15sec/60°@6.0V

0.09sec/60°@8.4V

Working Frequency: 1520us/20KHz

Default Travel Angle: ±60° = 120° Total

Temperature Range: -10℃ to +65℃

Soft Start: Yes

Programmable: Yes

Case Material: Aluminum Alloy

Motor Type: Coreless DC Motor

Gear Set Material: Hardened Steel

Position Sensor: Potentiometer

Case Dimensions: 23.5816.8mm±0.2mm

Weight: 8g±10%

Package Included:

1x KST X08H V6.0 Servo
