Description

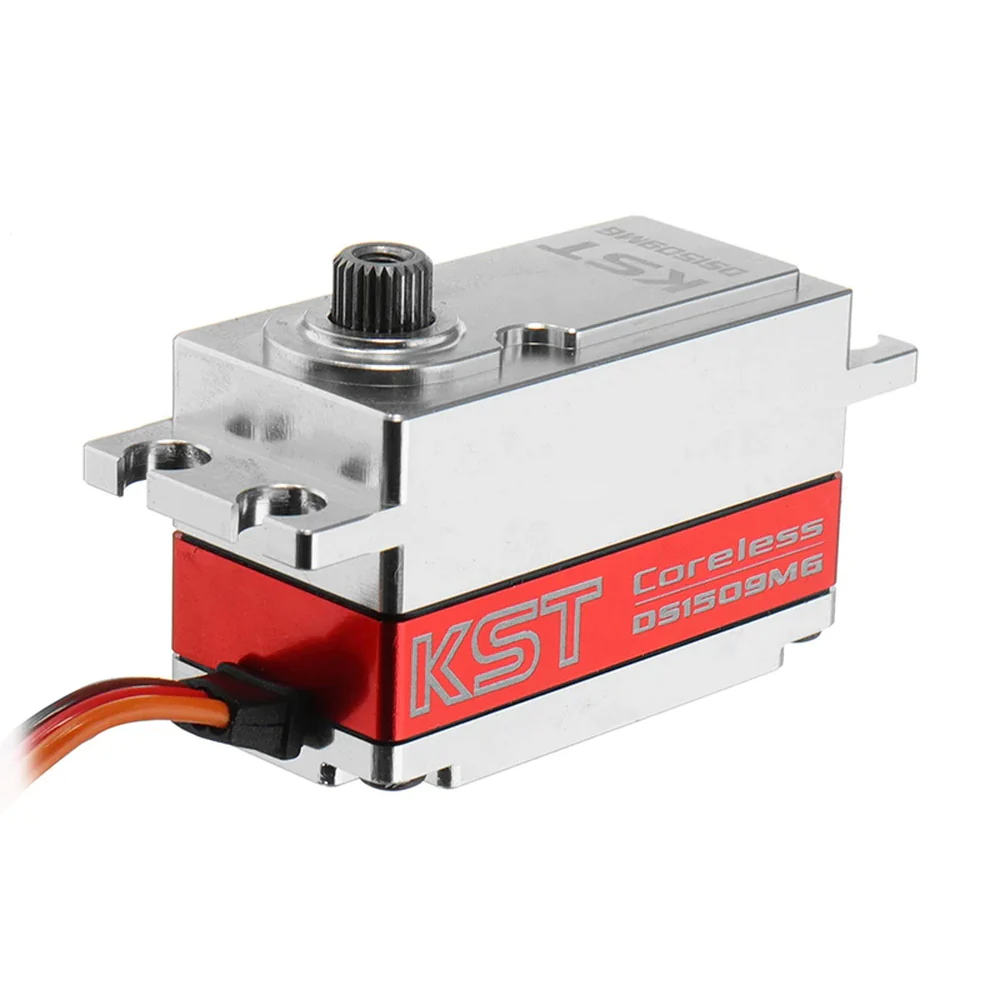

The KST DS1509MG is a versatile and reliable steering servo option for RC cars, offering high speed, high torque, and a low profile design. With a wide voltage range of 4.8-7.4 volts, this servo can be used in a variety of models.

Thanks to its metal construction and digital signal, the KST DS1509MG provides precise and powerful performance. It boasts an impressive operating speed of 0.07 seconds per 60 degrees at 7.4 volts, and a stall torque of 12.8kg.cm at the same voltage.

This servo also features a programmable function and 2BB bearing type, making it a great choice for those seeking customization and long-lasting use. The package includes the KST DS1509MG servo, as well as three servo horns and fittings for added convenience.

Specifications:

Brand: KST

Model: DS1509MG

Material: Metal

Signal: Digital

Operating voltage: 4.8-7.4V DC

Connector wire length: Approximately 205mm

Operating speed: 0.07 sec/60° @ 7.4V; 0.08 sec/60° @ 6.0V; 0.10 sec/60° @ 4.8V

Stall torque: 12.8kg.cm @ 7.4V; 10.7kg.cm @ 6.0V; 8.5kg.cm @ 4.8V

Working frequency: 1520us/333Hz, 900us-2100us

Motor type: Coreless motor

Bearing type: 2BB

Programmable: Yes

Item size: 40.5 x 20 x 25.4mm

Item weight: 55g (including wires)

Package Includes:

1 x KST DS1509MG servo

3 x servo horns and fittings
