Description

KST Servos are well-known for providing high quality at affordable prices. Whether you need a servo for a hobby helicopter or glider, an industrial application, or a UAV, KST servos have earned a reputation for exceptional performance even in the most demanding conditions. With KST, you can expect a solution tailored to your needs, whether it’s for winning your next competition event, powering a mission-critical UAV, or operating industrial-grade machinery or robotics. Our sales team can assist you today, and we also offer OEM and ODM services for customized installations.

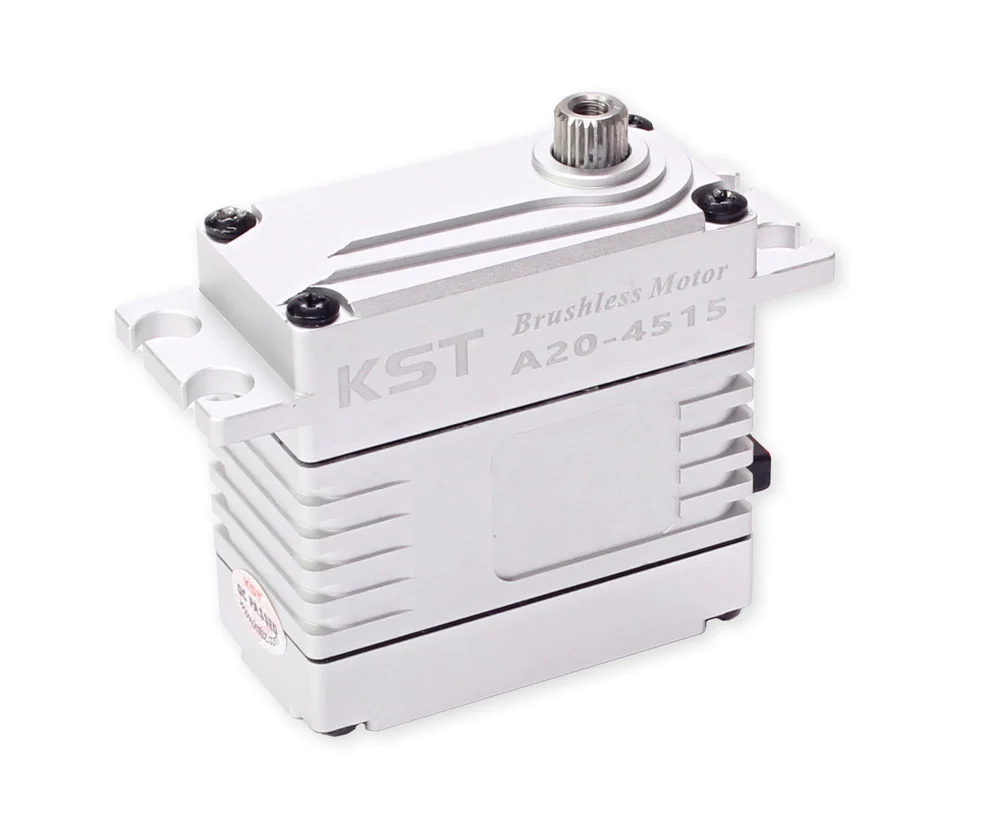

Here are the specifications of our KST servo:

Operating Voltage (rated): DC 7.4V

Operating Voltage Range: DC 6.0V – 8.4V

Torque: 36Kg.cm @ 6.0V, 45Kg.cm @ 7.4V, 50Kg.cm @ 8.4V

Speed: 0.19 sec/60° @ 6.0V, 0.15 sec/60° @ 7.4V, 0.13 sec/60° @ 8.4V

Operating Temperature Range: -20℃ to +65℃

Signal Voltage

Case Material: Aluminum Alloy

Motor Type: Brushless

Gear Set Material: Phosphor Bronze & Hardened Steel

Shielded Connecting Cable: 22AWG

Case Dimensions: 40.5 * 20 * 42mm

Weight: 80g
