Description

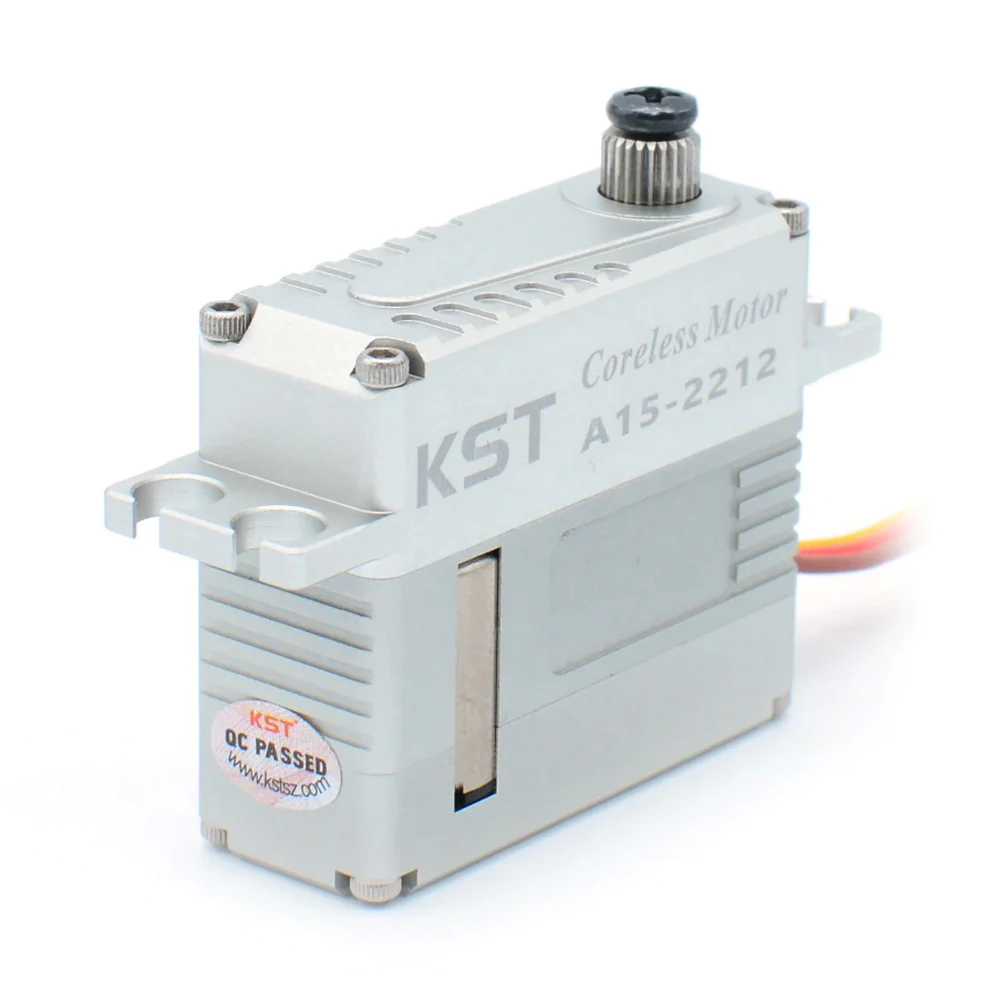

Product: KST A15-2212 Digital Servo Brand Name: KST Item NO.: A15-2212 Item Type: Coreless Servo

Specifications:

Case Material: Aluminum Alloy

Motor Type: Coreless

Gear Set Material: Phosphor Bronze + Hardened Steel

Position Sensor: Potentiometer

Shielded Connecting Cable: 22AWG

Dimension: 40.5x15x34mm

Weight: 52g

Operation Voltage Range: DC 6.0V – 8.4V (rated voltage: 7.4V)

Torque at 6.0V: 18Kg.cm, at 7.4V: 22Kg.cm, at 8.4V: 25Kg.cm

Speed at 6.0V: 0.15sec/60°, at 7.4V: 0.12sec/60°, at 8.4V: 0.11sec/60°

Travel Angle: ±50° when 1000-2000us

Operating Temperature Range: -10℃ ~ +65℃

Package Includes:

1 x KST A15-2212 Digital Coreless Servo

1 x Accessories
