Description

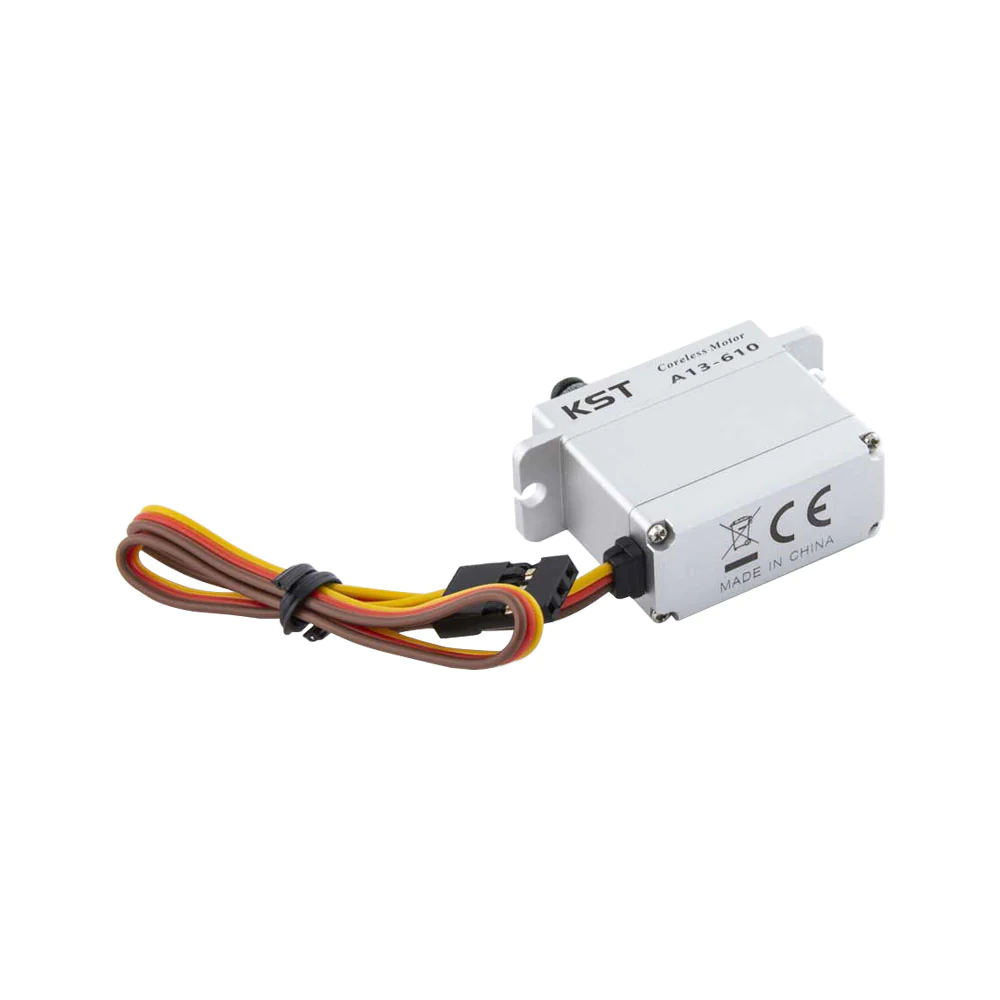

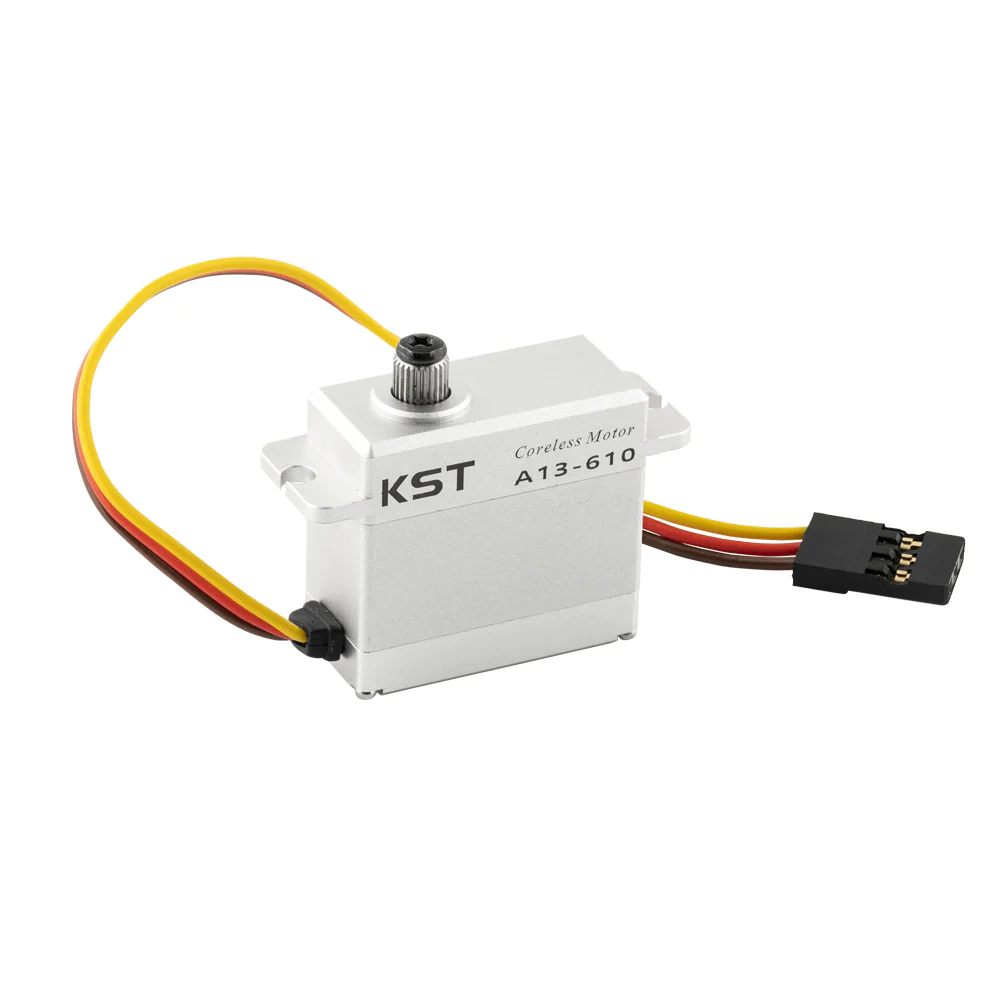

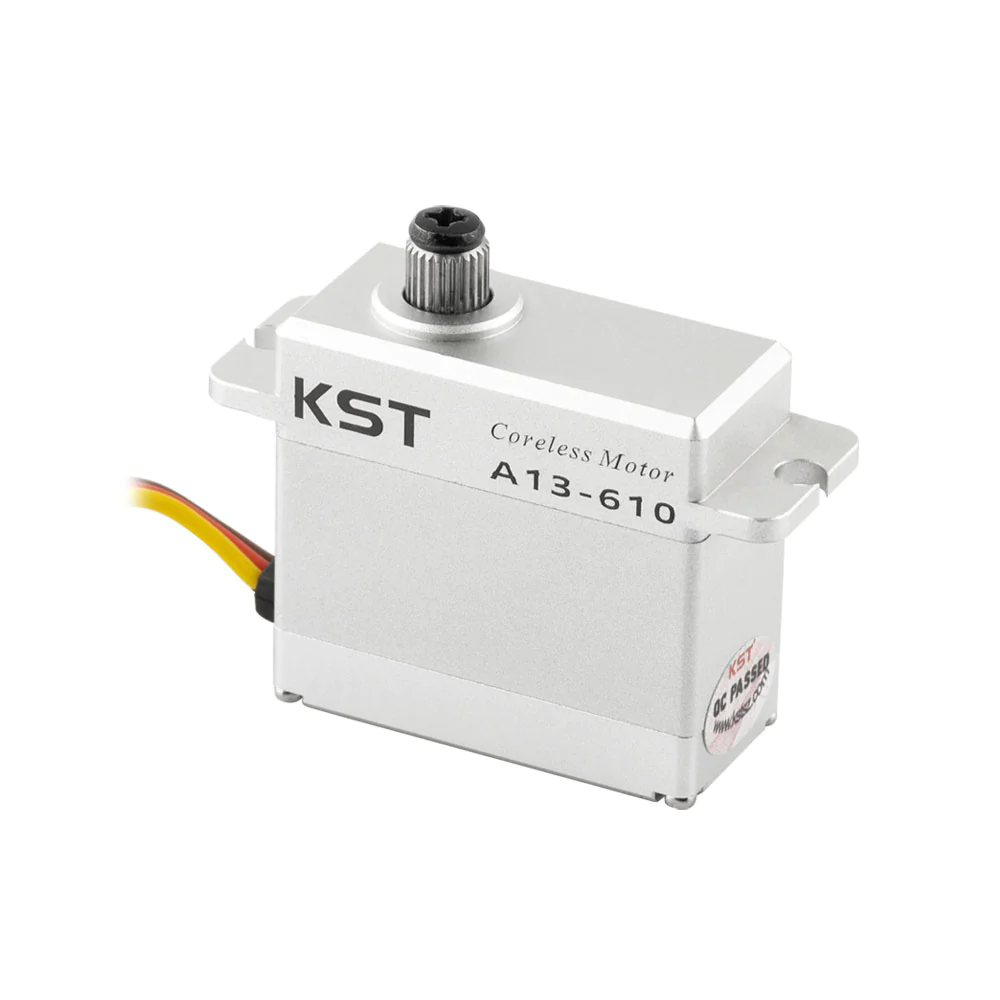

KST A13-610 Digital Servo 8.4V 0.10s 9kg.cm 124oz.in

KST Servos are known for their high-quality and affordable prices. Whether you need a servo for a hobby helicopter, glider, industrial equipment, or UAV, KST has a solution for you. With a reputation for performance even under the most demanding conditions, KST servos are the ideal choice for your next competition, mission-critical project, or custom installation. Contact our sales team today to learn more about our OEM and ODM services.

Features:

Compact and lightweight design

Excellent torque and speed

Designed for high-performance RC gliders

Excellent heat dissipation

Ultra-slim 13mm body

Specifications:

Operation Voltage (rated): DC 7.4V

Operation Voltage Range: DC 6.0V-8.4V

Torque: 6.5Kg.cm @ 6.0V, 8.0Kg.cm @ 7.4V, 9Kg.cm @ 8.4V

Speed: 0.12sec/60° @ 6.0V, 0.11sec/60° @ 7.4V, 0.10sec/60° @ 8.4V

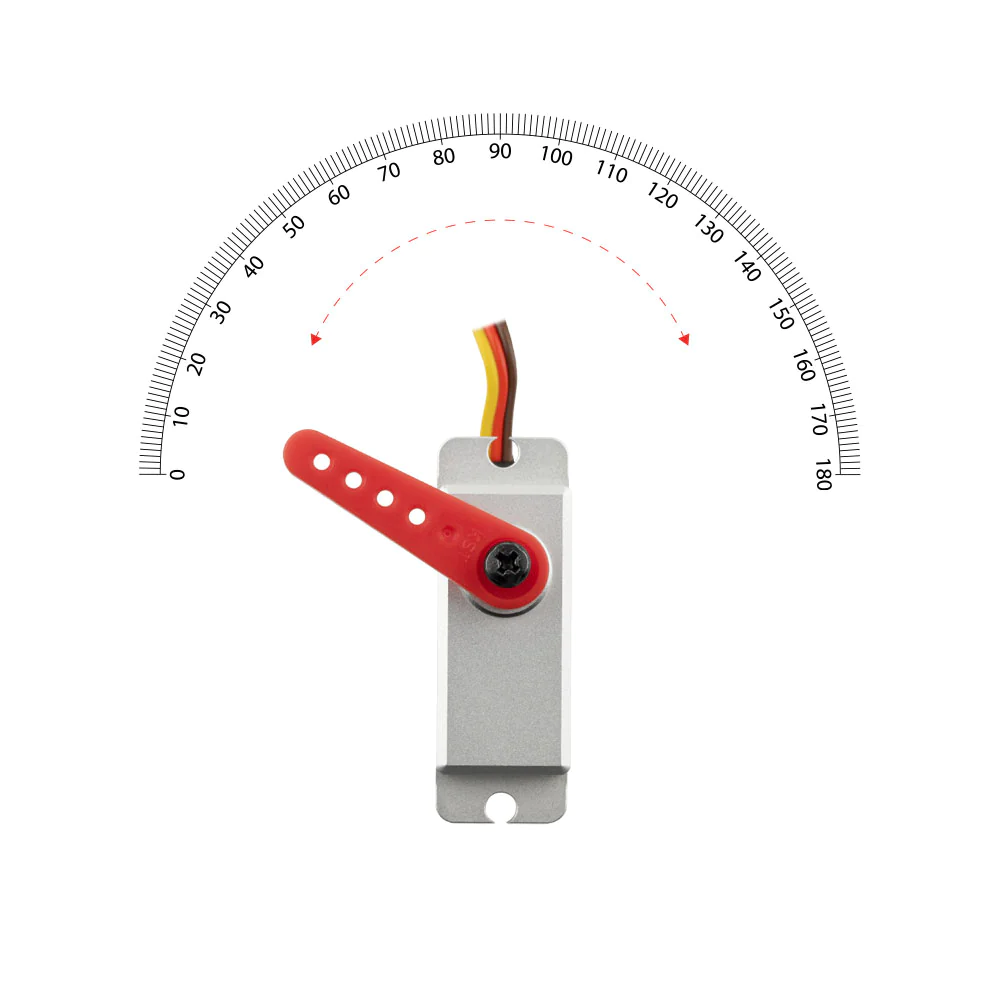

Travel Angle: ±50° when 1000-2000us

Operating Temperature Range: -10℃ to +55℃

Motor Type: Coreless

Gear Set Material: Hardened Steel

Shielded Connecting Cable: 26AWG

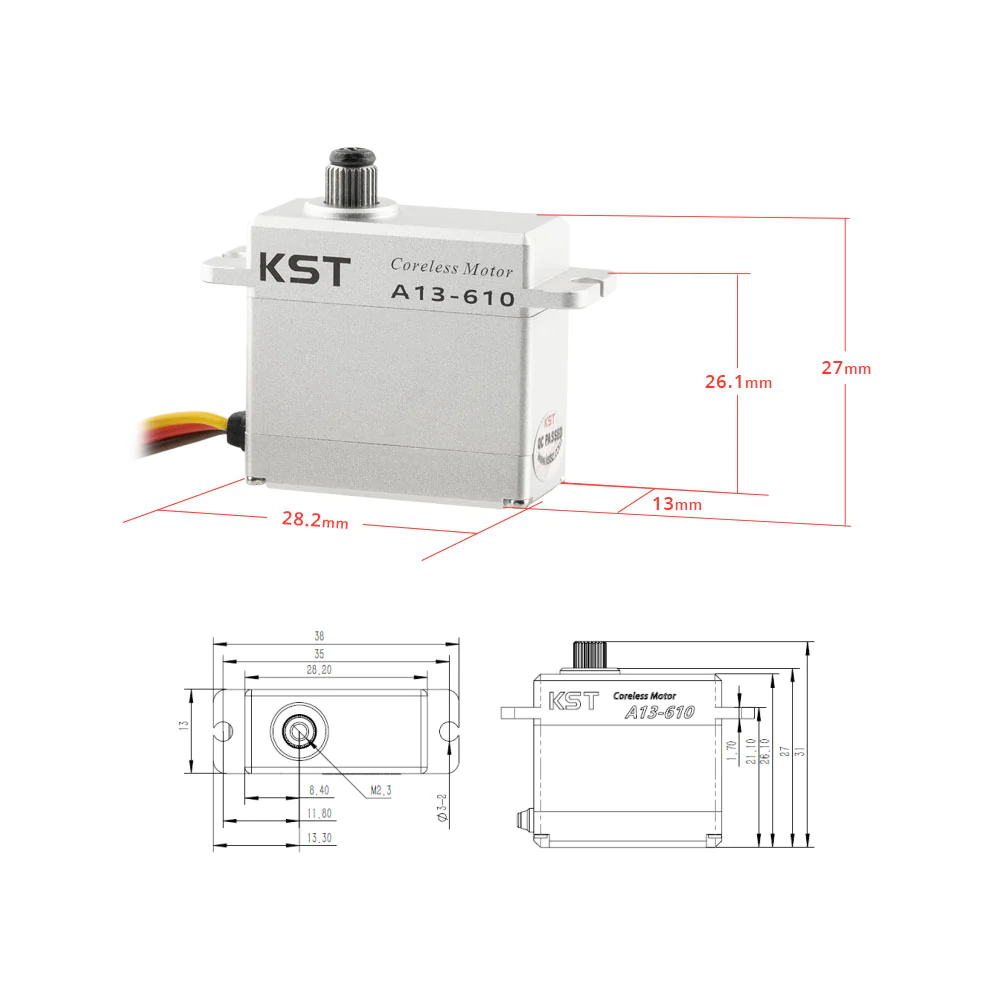

Case Dimensions: 28.2 * 13 * 27mm

Weight: 24g
