Description

Input voltage: DC 10~34V

Output voltage: DC 1~34V

Max. input current: 35A

Charging current: 0.2~20.0A x2

Max. charging power: 500W x2

Balance current: 1.5A/Cell Max

Discharging current: 0.2~1.5A x2

Max. discharging power: 15W x2

Abnormal voltage alarm: Support

Incorrect cell count setting alarm: Support

Supported battery types and cell count: LiFe, LiIon, LiPo 1-8S ;

LiHv 1-7S ;

Pb 1-12S ; NiMH/Cd 1-16S

Parallel charging power and current: 800W/35A

Parallel discharge power and current: 30W/3A

Working temperature: 0~40℃

Storage temperature: -20℃~60℃

Dimension: 105x105x47mm

Weight: About 350g

Packaging included:

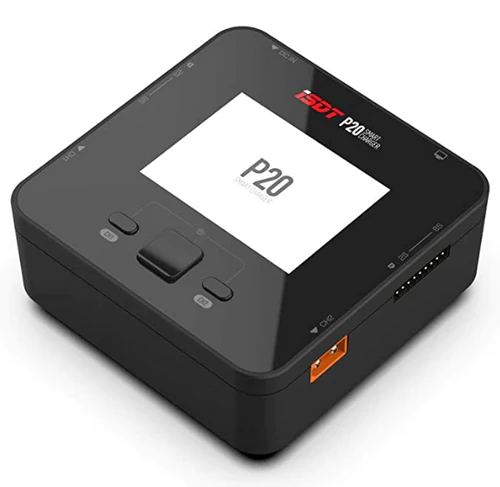

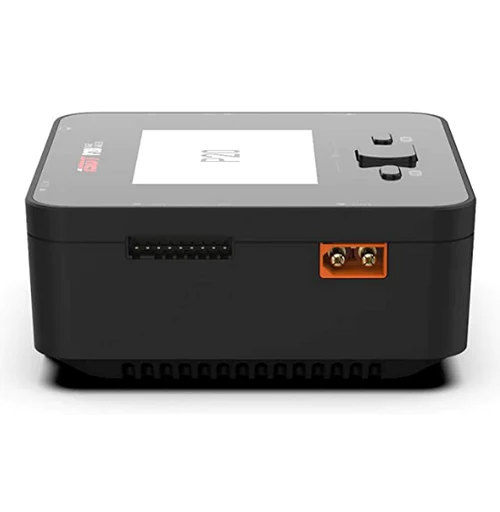

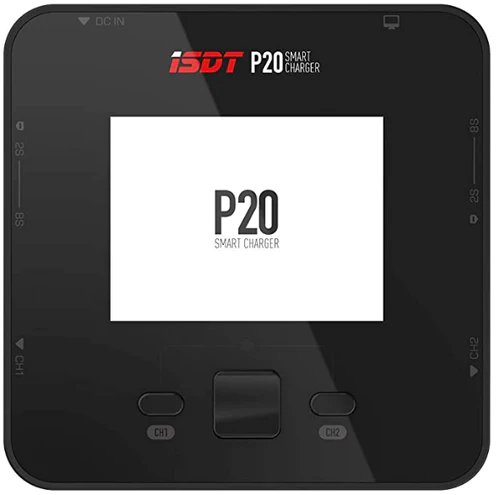

1X ISDT P20 Charger
