Description

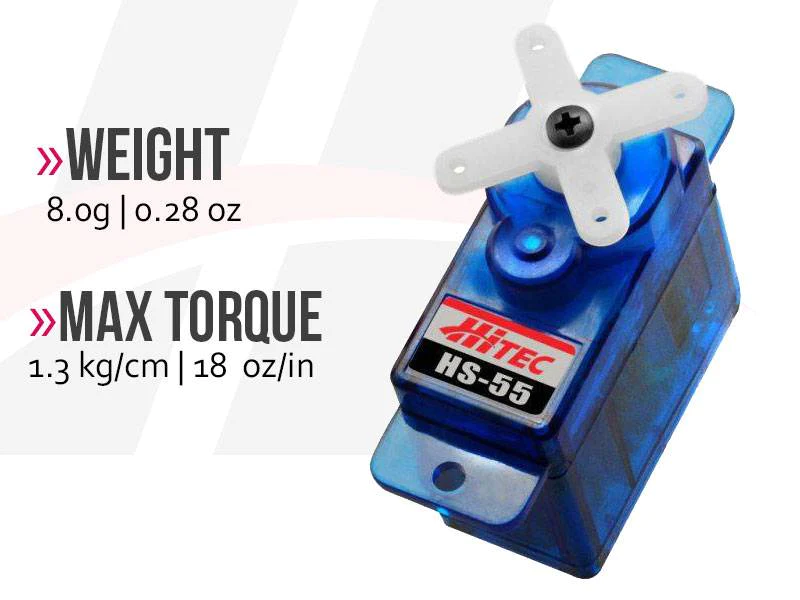

Product Description: The HS-55 micro servo is the perfect choice for controlling smaller electric and park flyers. It features precision components that have been engineered to provide long-lasting, trouble-free service. The HS-55 has set the standard for affordable performance, and it has been featured in hundreds of model aircraft reviews worldwide.

Features:

Affordable Performance

Precision Components

Strong, Long-Lasting Nylon Gears

Market’s Most Reliable Micro Servo

Most Popular Servo

HS-55 Servo Specifications: Performance Specifications:

Operating Voltage Range (Volts DC): 4.8V ~ 6.0V

Speed (Second @ 60°): 0.17 ~ 0.14

Maximum Torque Range oz./in.: 15 ~ 18

Maximum Torque Range kg./cm.: 1.1 ~ 1.3

Current Draw at Idle: 5.5 mA

No Load Operating Current Draw: 150 mA

Stall Current Draw: 450 mA

Dead Band Width: 8 µs

Physical Specifications:

Dimensions (Inches): 0.89 x 0.45 x 0.94

Dimensions (Metric): 22.8 x 11.6 x 24.0

Weight (Ounces): 0.28

Weight (Gram): 8.0

Circuit Type: HT7003 Analog SMT

Motor Type: Coreless Metal Brush

Gear Material: Nylon

Bearing Type: None

Output Shaft (type/Ømm): Feather 15/8

Case Material: Plastic

Dust/Water Resistance: N/A

Connector Gauge (AWG)/Strand Count: 28/20

Radio Control Applications:

Parkflyer: < 36 oz. Sport Plane: 20 - 35 oz. Sailplane: < 2 meters/DLG 3D Performance: Foamie Scale: N/A Electric Helicopter: 200mm Gas Helicopter: N/A On Road: N/A Monster Truck: N/A Buggies: N/A Truggies: N/A Short Course/Truck: 1/8th Crawlers: N/A Sail Boat: N/A Power Boat: 1/8th
