Description

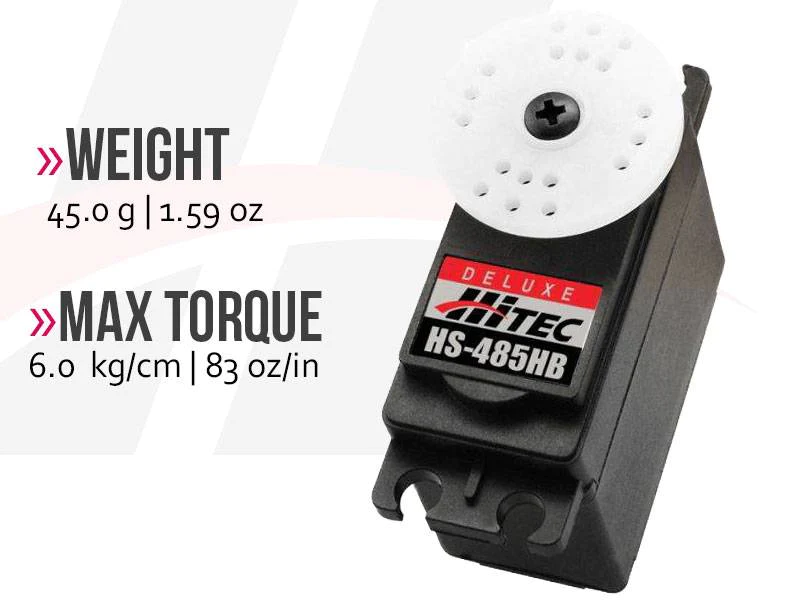

Product Description: The HS-485HB is an upgraded version of the popular HS-475HB, offering increased torque and speed. Featuring top ball bearings, high-impact Karbonite™ gears, and high-performance circuitry, this servo provides reliable torque, excellent centering, and precise resolution.

Applications: This servo is suitable for helis and aircraft up to 72″ or up to 12lbs when using just one servo per control surface. However, please note that high-vibration gas engines (not glow) combined with large control surfaces and large throws (3D models) can cause undue strain on the gears. We recommend using metal-geared servos for these applications, even if under 12lbs. Please also be aware that using thread lockers on Karbonite geared servos will cause the output shaft to fail.

Features:

Heavy-duty standard servo

High-impact Karbonite gears

Top ball bearings

Excellent centering and resolution

Accessories:

Nylon gear set

Plastic case set

Applicable horns

HS-485HB Servo Specifications: Performance Specifications:

Operating Voltage Range (Volts DC): 4.8V ~ 6.0V

Speed (Second @ 60°): 0.22 ~ 0.18

Maximum Torque Range oz./in.: 67 ~ 83

Maximum Torque Range kg./cm.: 4.8 ~ 6.0

Current Draw at Idle: 10 mA

No Load Operating Current Draw: 200 mA

Stall Current Draw: 1,200 mA

Dead Band Width: 3 µs

Physical Specifications:

Dimensions (Inches): 1.57 x 0.78 x 1.49

Dimensions (Metric): 39.8 x 19.8 x 38.0

Weight (Ounces): 1.59

Weight (Gram): 45.0

Circuit Type: HT7003 Analog SMT

Motor Type: 3 Pole Metal Brush Ferrite

Gear Material: Karbonite

Bearing Type: Top Ball Bearing

Output Shaft (type / Ømm): Standard 24

Case Material: Plastic

Dust / Water Resistance: N / A

Connector Gauge (AWG) / Strand Count: 25 / 40

Radio Control Applications:

Parkflyer: N / A

Sport Plane: 50 – 64 oz.

Sailplane: 2 meters and up

3D Performance: N / A

Scale: 50 – 64 oz.

Electric Helicopter: N / A

Gas Helicopter: N / A

On Road: N / A

Monster Truck: N / A

Buggies: N / A

Truggies: N / A

Short Course / Truck: N / A

Crawlers: N / A

Sail Boat: < 1 meter Power Boat: 1/10th
