Description

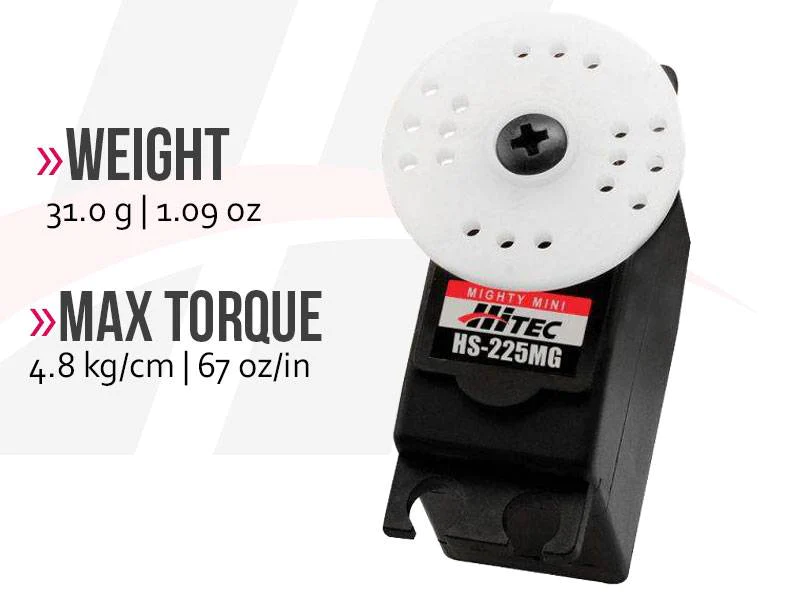

Product Description: The HS-225MG is a high performance mini servo with full size performance in a mini package. This servo is built with state-of-the-art SMT technology and features durable metal gears and a top ball bearing. It is ideal for applications that require a small, lightweight, high speed, and high torque servo.

Features:

Full Size Performance in a Mini Package

Durable Metal Gears

Top Ball Bearings

Ideal for Small, Lightweight, High Speed, High Torque Applications

Accessories:

Metal Gear Set | Link |

Metal/Plastic 1st Gear Set | Link |

Plastic Case Set | Link |

Applicable Horns

HS-225MG Servo Specifications: Performance Specifications:

Operating Voltage Range (Volts DC): 4.8V ~ 6.0V

Speed (Second @ 60°): 0.14 ~ 0.11

Maximum Torque Range oz. / in.: 54 ~ 67

Maximum Torque Range kg. / cm.: 3.9 ~ 4.8

Current Draw at Idle: 8 mA

No Load Operating Current Draw: 300 mA

Stall Current Draw: 1,200 mA

Dead Band Width: 8 µs

Physical Specifications:

Dimensions (Inches): 1.27 x 0.66 x 1.22

Dimensions (Metric): 32.4 x 16.8 x 31.0

Weight (Ounces): 1.09

Weight (Gram): 31.0

Circuit Type: HT7003 Analog SMT

Motor Type: 3 Pole Metal Brush Ferrite

Gear Material: Metal

Bearing Type: Top Ball Bearing

Output Shaft (type / Ømm): Standard 24

Case Material: Plastic

Dust / Water Resistance: N / A

Connector Gauge (AWG) / Strand Count: 25 / 40

Radio Control Applications:

Parkflyer: N / A

Sport Plane: 50 – 64 oz.

Sailplane: 3 meter

3D Performance: 50 – 64 oz.

Scale: N / A

Electric Helicopter: 500mm

Gas Helicopter: 50-59 Class

On Road: 1/12th

Monster Truck: N / A

Buggies: 1/12th

Truggies: N / A

Short Course / Truck: N / A

Crawlers: 1/8th

Sail Boat: < 1 meter Power Boat: 1/16th
