Description

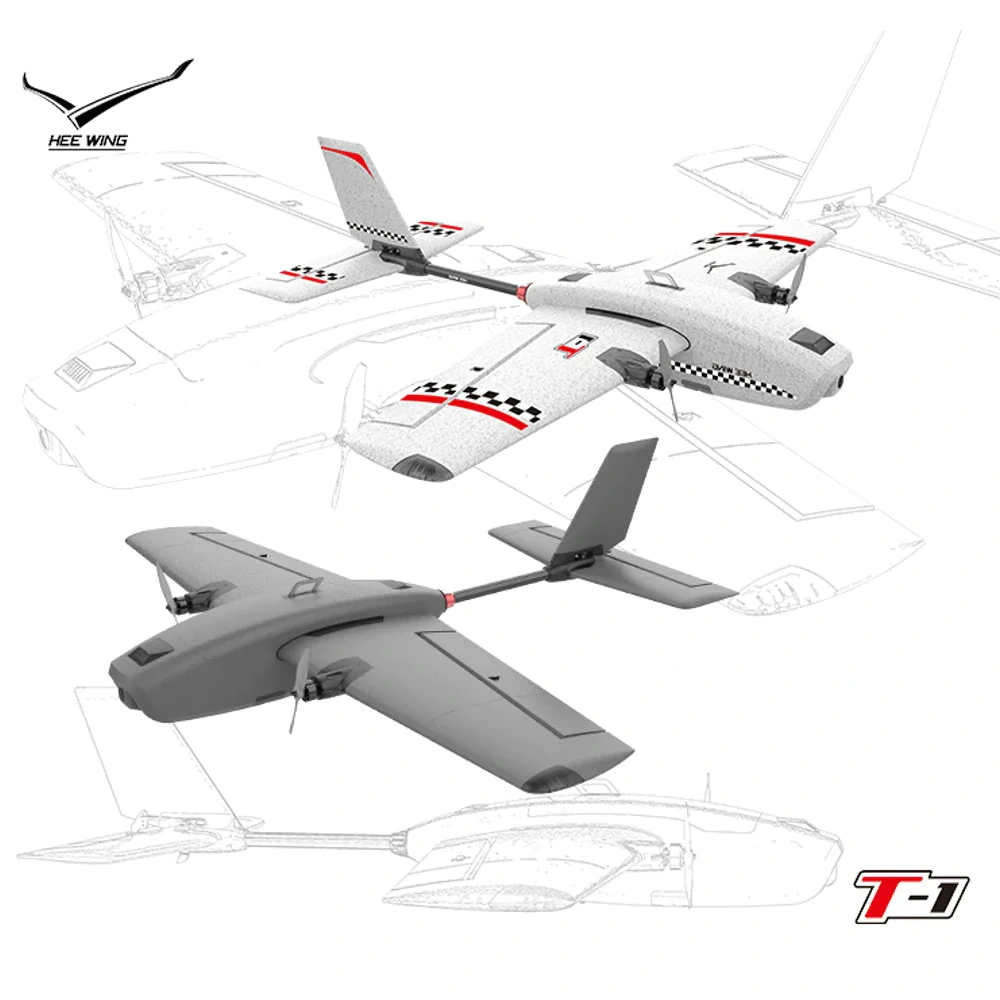

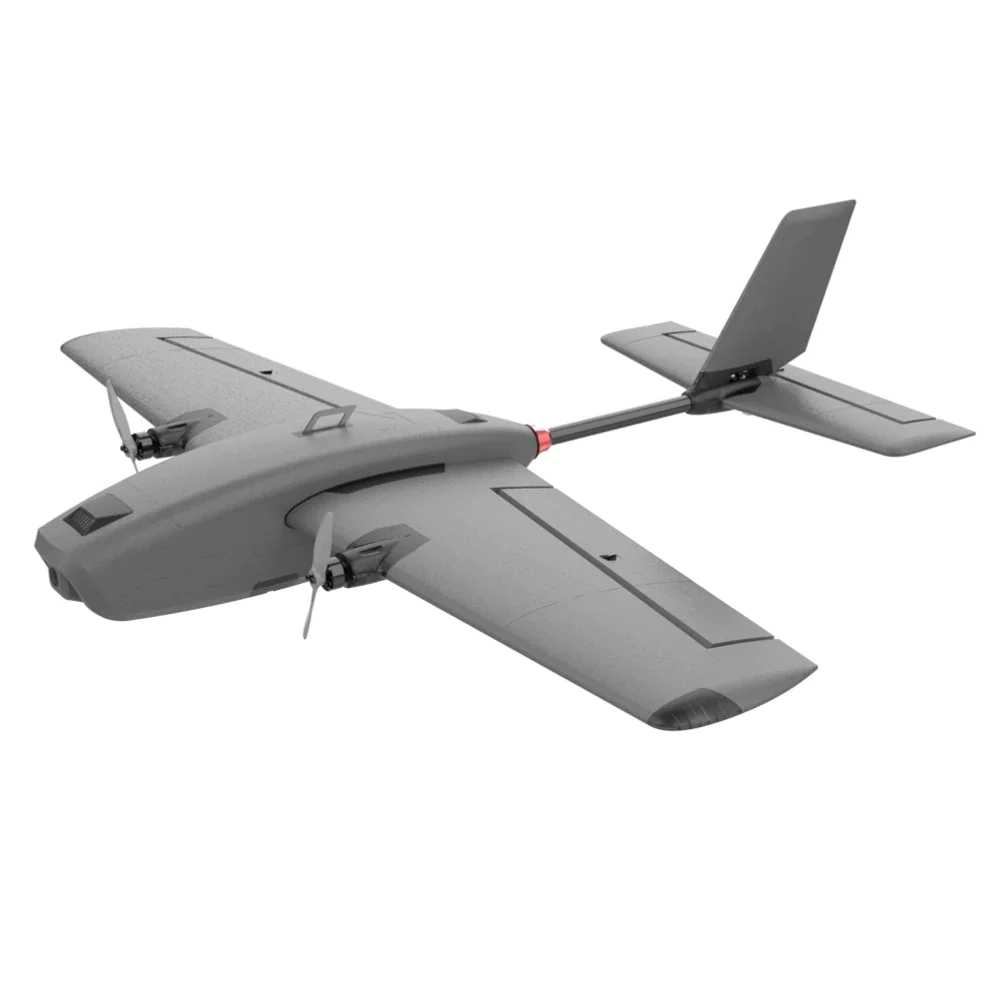

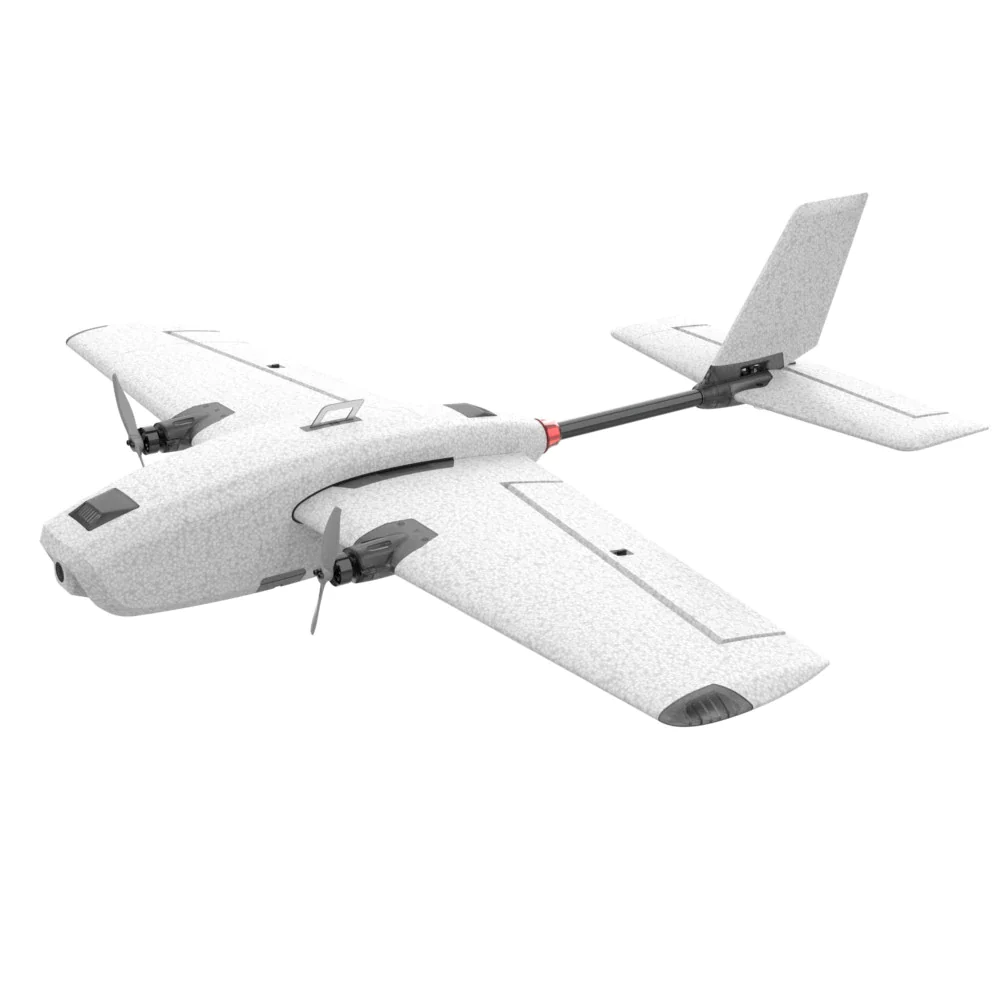

The HEE WING T-1 Ranger Pro Version is an upgraded version of the T-1 Ranger with improved features. It has a dual-motor power system with 1406 3150kv motors that provide 45% more power, a high-temperature washer behind the motor mount, and an RGB driver included. The airplane also features additional carbon rod reinforcement, a carbon fiber tail boom, and metal-geared digital servos.

Specifications:

Brand Name: HEE WING

Item Name: T-1 Ranger Pro

Color: Grey

Version: PRO

Material: EPP/ABS+PC/Carbon fiber/Aluminum

Wingspan: 730mm

Length: 645mm

Height: 140mm

Empty weight: 205g (grey)

Takeoff weight: 350g ~ 500g

Cabin space: Length 245mm x Width 51mm x Height 48mm

Minimum flight speed: <20km/h Maximum flight speed: >120km/h

Maximum cruising range: >25km

Pulling force: >600g (statically measured with brushless version of 3S)

Packing size: 400mm230mm155mm

Package Weight: 880g

Power system:

Motor: FX-1406-3150KV brushless

ESC: FX-20A brushless

Propeller: FX-3830

Servo: FX-5g Metal Geared

Recommended parts (Not included in any version):

Battery: 2S3S 1300mAh5000mAh LiPo

Radio System: 2.4G 6CH

Features:

Lightweight and portable with quick disassembly design that takes only a minute to assemble or disassemble.

Dual motors with high thrust-to-weight ratio of 1.71.

Excellent aerodynamic design for stable slower flight.

Small wingspan with large cabin space for easy distribution of electronic equipment.

Doubling the adjustable range of the center of gravity to accommodate light-load and heavy-load dual flight.

Bayonet design for the hatch cover for more reliable structure.

New flight control system for easy control of the vast sky.

Supports external cameras for multiple camera setup.

Note:

KIT version does not include motor, ESC, servo, propeller, battery, charger, transmitter, or receiver.

PNP version does not include battery, charger, transmitter, or receiver.

Glue is not included.

Package includes:

1x HEE WING T-1 Ranger Pro Version 730mm Wingspan Dual Motor EPP FPV Racer RC Airplane Fixed Wing
