Description

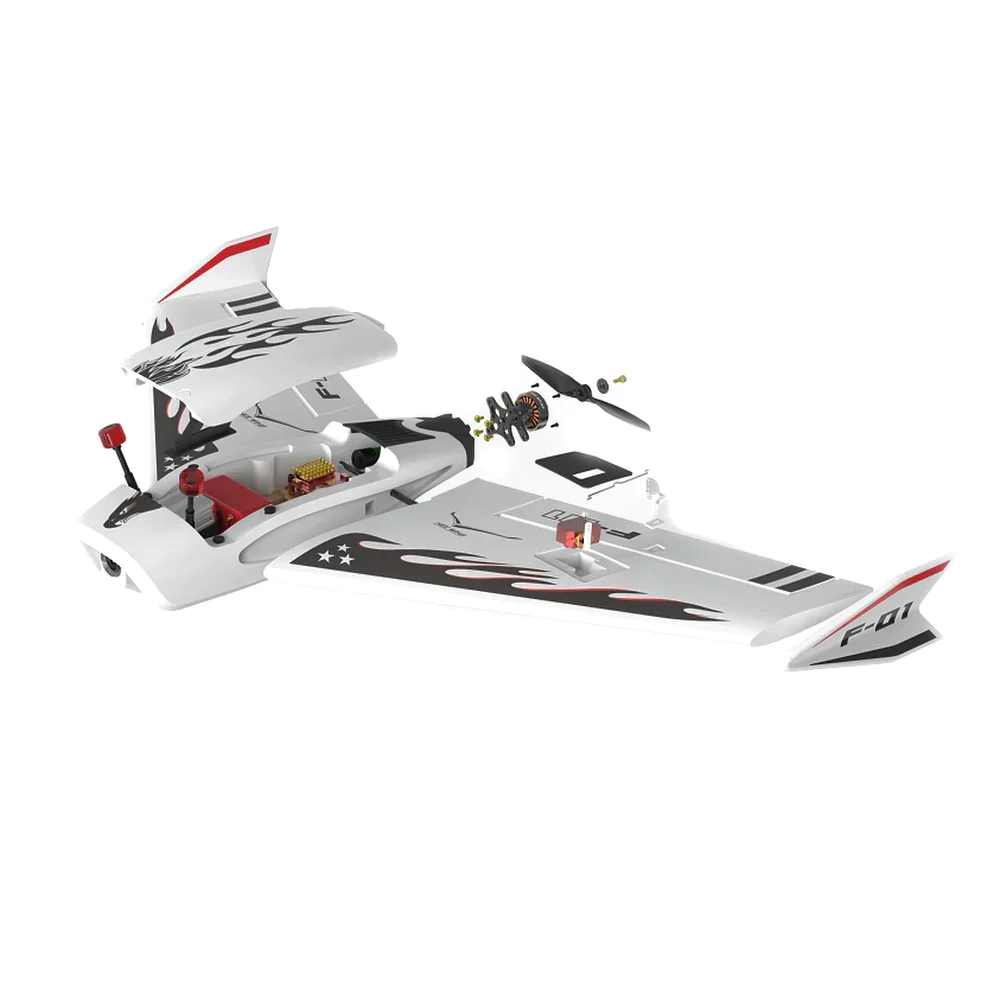

HEE WING RC F-01 Ultra Delta Wing PNP Pro 690MM EPP RC Airplane





Features

Independent detachable lens plug for both FPV and visual observation flights

Wings have embedded carbon fiber rods with different angles

Small wingspan with large space for electronics electronics

Four magnets are applied to the hatch for better fastening

The new wingtip design supports vertical take-off mode

Supports horizontal and vertical battery mounting

Tailored lens ring for better protection

All new propeller locking method

Tailored for DJI Digital Air unit

Specifications

Airplane Dimension: Wingspan 690mm, Height: 88mm, Length: 415mm

Fuselage space: Battery compartment: 175mm*175mm*55mm

VTX fixed seat: compatible with digital VTX and analog VTX

KIT Weight: 150g (epp-30)/190g (epp-20)

ESC compartment: 70mm*38mm*20mm

Material : EPP/ABS/Carbon Fiber

Max Flight speed: ≥220+km/h

Max Endurance: >70 minutes

Take off weight: 350g~850g

Min Flight speed: <27km/h Thrust: ≥920g(6*4E prop) Propeller: 5x5E/6x4E Max Mileage: >45km

Battery: 2S~4

Note: when speed is≥100km/h, should install lens cover to prevent excessive inflow air from blowing away from the hatch.

PNP PRO:

Motor： FX-2205/2350 kv brushless*1

ESC： FX-35A brushless *1

UBEC: Diatone 5V 2A*1

Propeller： 5*5E/6*4e

Servo: GDW 12g digital metal gear servo*2

XT60+3.5 banana plug
