Description

HEE WING FPV KIT

Included: Ratel 2 Camera, PandaRC VTX, Foxeer Lollipop 3 Antenna and MMCX to SMA extension

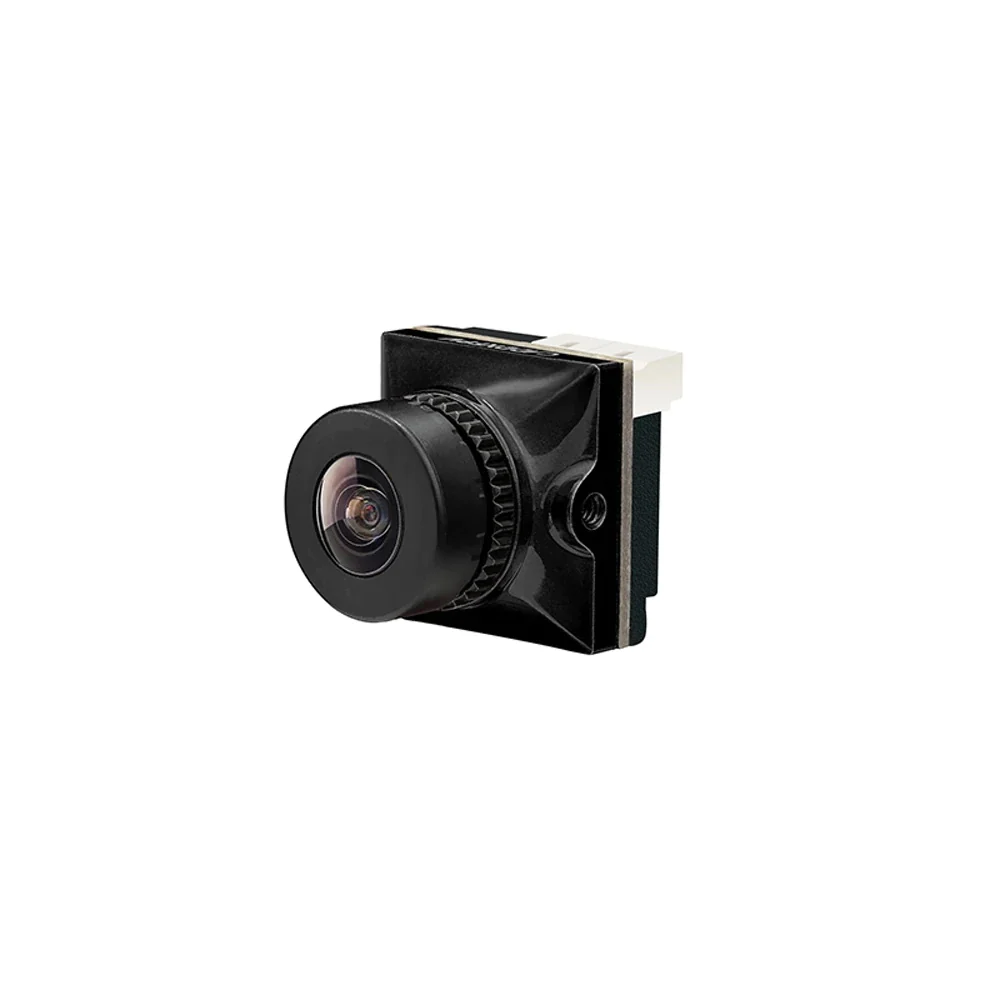

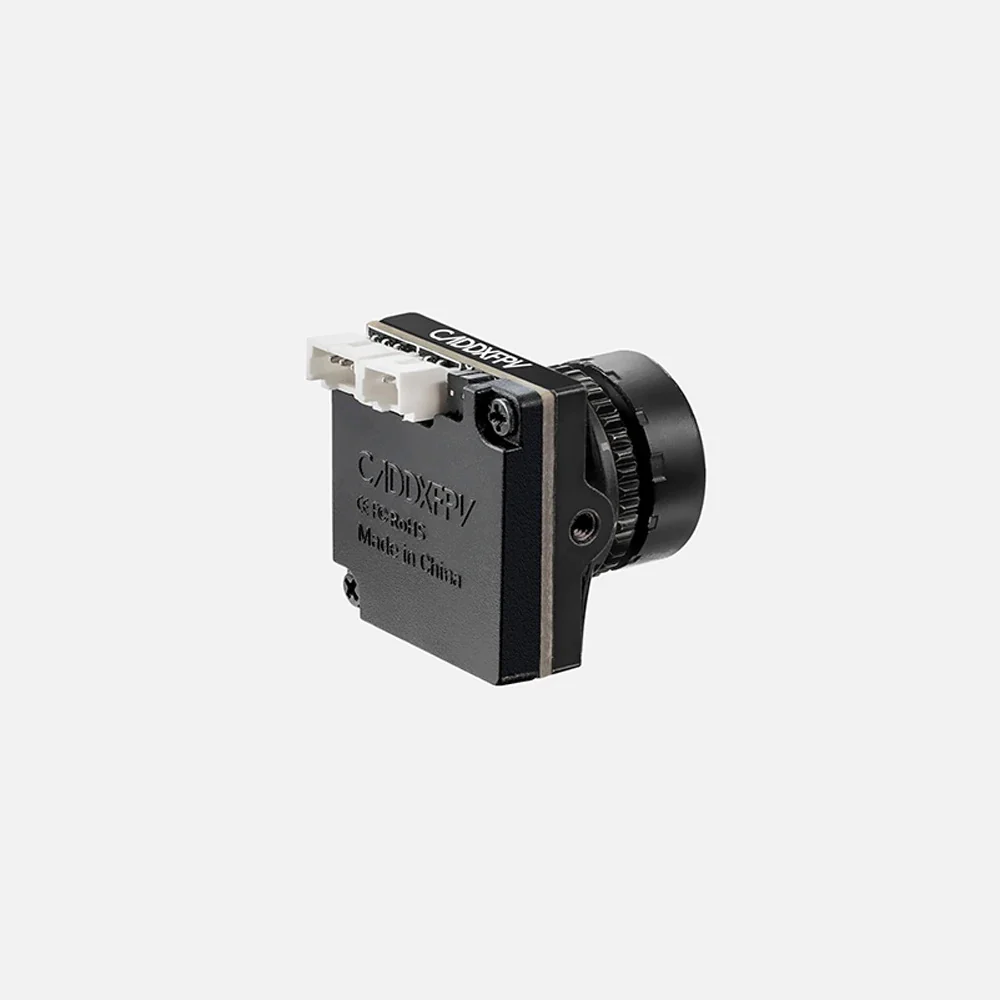

Specifications:

Brand Name: Caddx

Item Name: Ratel 2

Sensor: 1/1.8” inch Starlight

Resolution: 1200TVL

Field of view: 165°

Lens: 2.1mm

TV system: NTSC and PAL (switchable)

Image: 4: 3 and 16: 9 (switchable)

WDR: Super WDR

DNR: 3DNR

Min. Illumination: 0.0001LUX

Video output: CVBS

Day / Night: Auto / Color / B&W / EXT

Shutter speed: PAL: 1/50 ~ 100,000; NTSC: 1/60 ~ 100,000

Wide power input: 5-40V

Working temperature: -20℃~60℃

Weight: 5.9g

Dimension: 19*19*20mm

Package included:

1x Caddx Ratel 2 camera

1x menu board

1x 2 pin silicone cable

1x 3 pin silicone cable

1x 1.5mm Allen key

1x warranty card

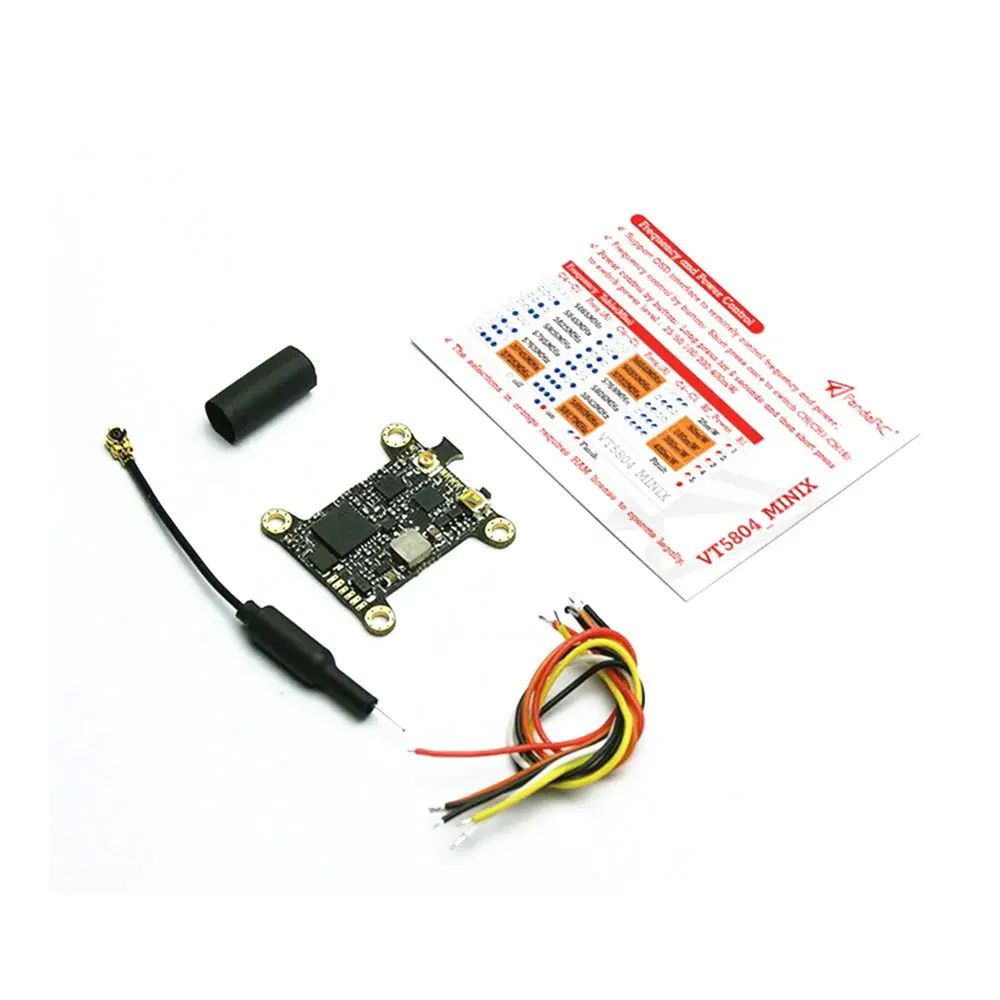

VTX:

Specification:

1. The output power is stable and the transmission distance is long: >0.5km@25mW, >1km@200mW, >1.5km@400mW (original antenna);

2. 6-stop transmit power switching: 0mW/25mW/50mW/100mW/200mW/400mW;

3. Support OSD interface to adjust transmission frequency and power;

4. 16 frequency points output, including A group and R group;

5.Lock frequency quickly and without disturbing colleagues when powering on.

6. Output power self-test function;

7. Full Video Format: NTSC/PAL;

8. The input voltage range is wide and the power consumption is low: 6V-26V, 12V/240mA@400mW;

9. Small size: 24mm*24mm*3mm, installation hole 20mm*20mm (4-M2);

10. Light weight: <3g (not included antenna);

Package included:

1 x VT5804 MINIX

1 x Rattail Antenna

1 x frequency table

6x power cord

1 x heat shrink tube

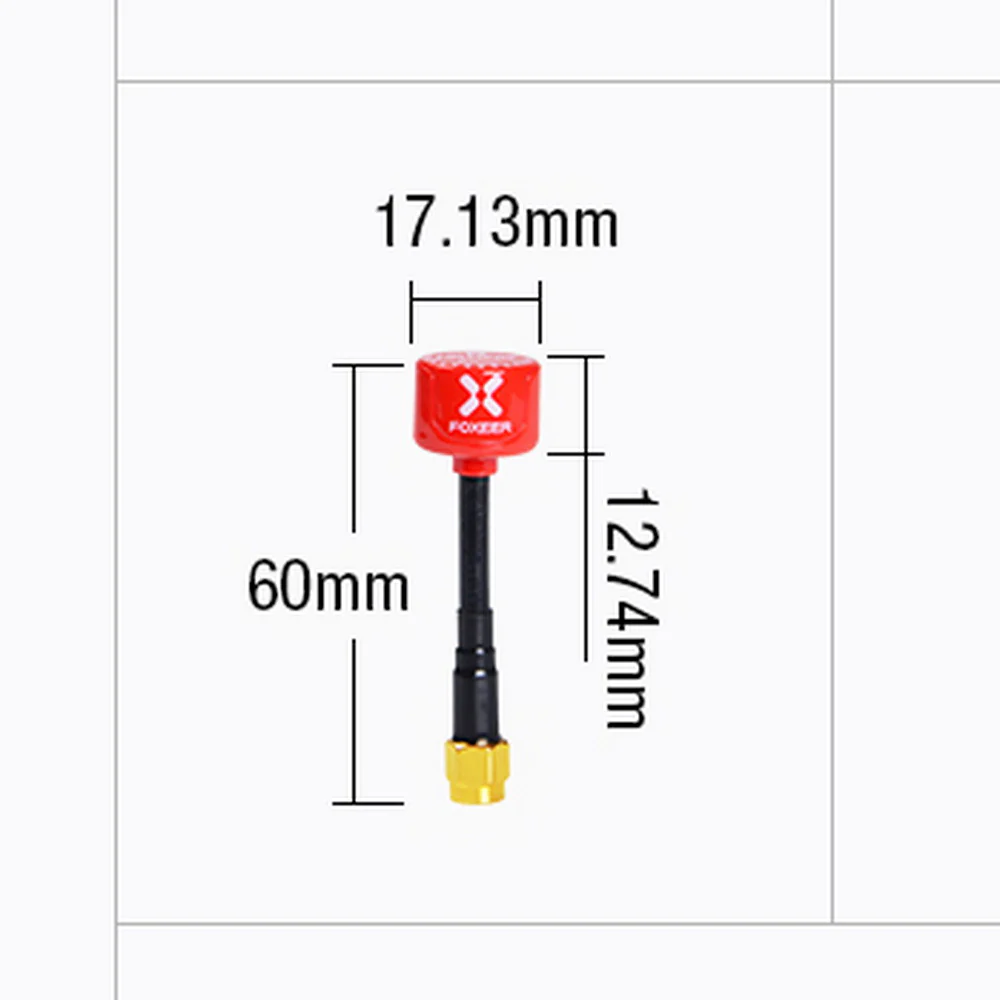

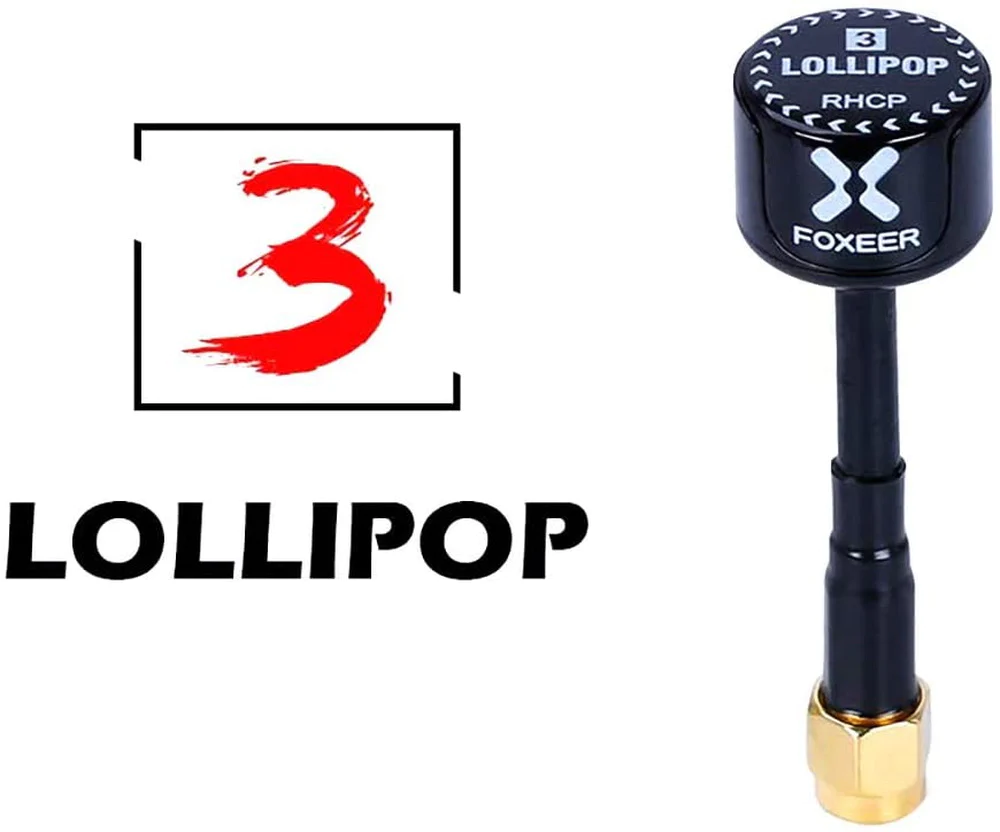

Antenna:

Foxeer Lollipop 3 Antenna

Foxeer Antenna Lollipop 3 5.8G 2.3dBi RHCP FPV Antenna Specification: Shell material: Imported PC+ABS Weight: 7.5g Antenna length: 60mm Gain: 2.5 DBi Center frequency: 5.8 GHz Bandwidth: 500 MHz (5.5 – 6.0GHz) Matching: VSWR < 1.2 (at center frequency) Axial ratio: < 3db Radiation efficiency: 98% Polarization: RHCP Connector: RP-SMA / SMA Color: Black Package Included: 1 x Foxeer Lollipop 5.8G 2.3dBi FPV Antenna
