Description

Two Flight modes: Normal and Sport

The throttle lock function can be canceled in S2

Independent Gyro gain adjustment for pitch, roll and yaw

Basic setting includes stick countering and ESC throttle calibration

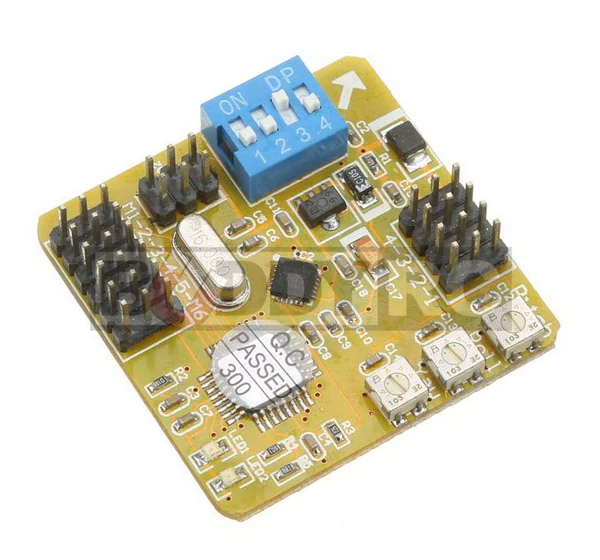

Blue and red LEDs for working status The GT Power S2 Multi-copter Control Board supports these multi-copter types:

Tri copter Quad copter X

Quad copter

Hex copter ◦H6 copter ◦Y6 copter Specifications: ◦Input Voltage: 4-6V ◦Input signal: 50hz standard PPM ◦PWM Frequency: 400hz for ESC, 50hz for servos ◦Gyro scale: +/- 500dps, ODR: 800hz ◦Operating temp: -40° C to 85° C ◦Size: 40mm x 40mm ◦Weight: 8g
