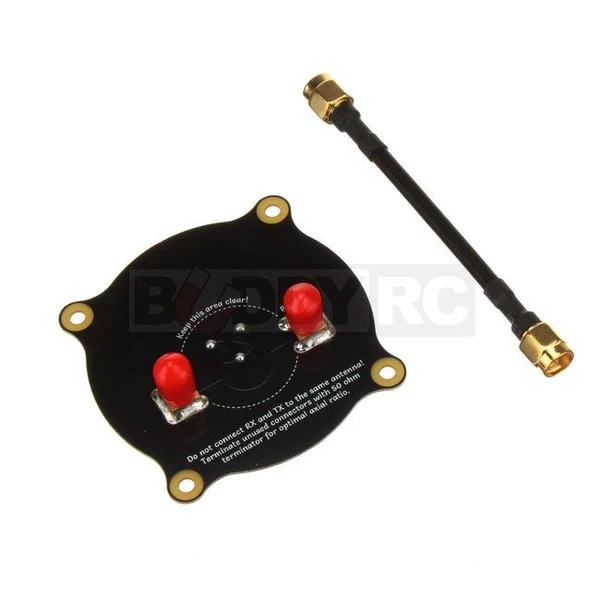

Gofly Triple Feed Patch Antenna The Triple Feed Patch antenna is a directional circularly polarized antenna, which was designed by Marteen and Robin Theunis. Good radiation efficiency. Most FR4-based patches have terrible efficiency because FR4 is very lossy at 5.8 GHz. Good axial ratio, not just directly perpendicular to the patch but also off-center. Cheap and easy to manufacture with high accuracy, even for a hobbyist.

Specifications:

Center frequency: 5.8 GHz

Bandwidth: 660 MHz (5.47 – 6.13 GHz)

Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency) Axial ratio: < 1.3 Antenna gain: 9.4 dBi Half power beam width: 55° (horizontal and vertical) Radiation efficiency: 83.5% Package Includes: Triple Feed Patch antenna x1 semi-rigid coax (SMA male – SMA male) x1
