Description

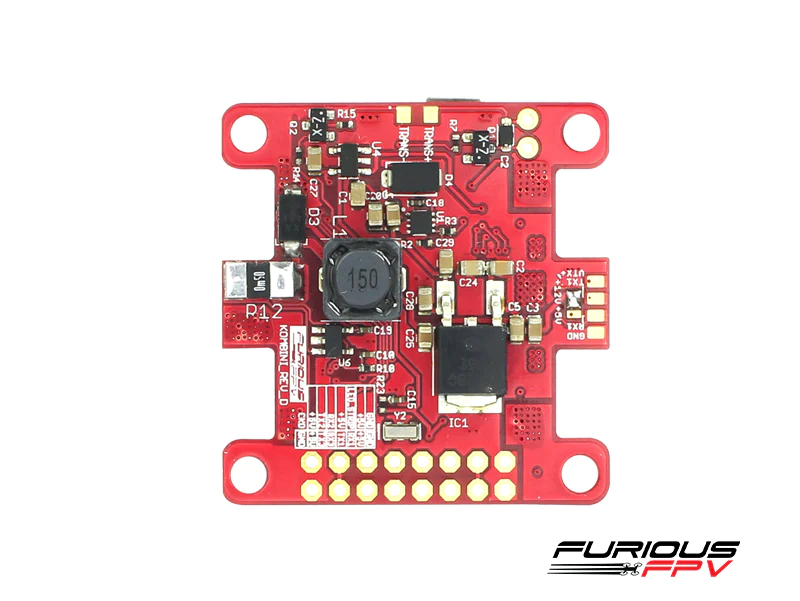

Furious KOMBINI FC – DSHOT600 VERSION.

Designed nothing short of revolutionary, the Furious KOMBINI Flight Controller steps up the competition with feature packed insanity that is ready to alter your FPV world. Unlike any other system available today, the Furious KOMBINI provides an all in one solution that brings forth the ultimate in simplified sophistication.

This all encompassing FC solution utilizes industry leading technology that has never been seen in a system this compact and powerful – the ultimate end game for high powered FPV flight.

Cluttered & complex wiring? Never again. With an industry 1st gold plated PDB that is integrated within, the KOMBINI FC provides the ultimate in soldering ease with the highest grade of connectivity, allowing direct soldering points for motors, VTx, Receiver and FPV Camera. Rated with 150A of current protection @ 5S 18.5V input power, the KOMBINI is ready to push the boundaries of aggressive FPV flight.

Utilizing the very latest F3 chip processor with built in CleanFlight & BetaFlight firmware, the Furious KOMBINI utilizes industry leading components with an included LC filter for the very best in signal reception. Add the 2A 5V BEC with a built in Sbus inverter & Spektrum satellite port, and the KOMBINI FC stands alone amongst all the rest with a potent blend of race ready madness. Sized at 36mm x 36mm, the compact footprint of the KOMBINI FC is the perfect application of race ready aggression, providing a flight controller experience second to none.

This adhesion of performance, capability & simplicity is the apex of FPV flight, providing the end user with a flight experience that brings everything to the table in a zero compromise design. For the pinnacle in simplicity, performance and cutting edge capability, the Furious KOMBINI is the feature packed FC system that is ready and waiting to dominate. Get yours today, and change the way you FPV.

TELEMETRY SUPPORT Ultra compatible with Frsky telemetry, SmartPort, and HoTT telemetry support.

CONFIGURABLE The KOMBINI FC runs BetaFlight, which can be configured to suit your needs utilizing a cross platform GUI (Windows/OSX /Linux). MICRO USB PORT The only full featured mini sized board with USB socket, which is not shared with serial ports.

Config and Flash via USB or Serial port. BROAD RC RECEIVER SUPPORT Supports SBus, SumH, SumD, Spektrum 1024/2048, XBus, and PPM with a built in Spektrum satellite port. No external inverters required (built in) with receiver powered via flight battery or USB for easy configuration.

ALL FEATURES AVAILABLE AT ONCE Connect your USB/SmartPort/Sbus/GPS/LED Strip/Battery Monitoring/Sonar/Motors – all at the very same time.

REVERSE CURRENT PROTECTION Protected with LiPo and USB inputs for problem free ESC calibration.

PROGRAMMABLE LED’S Incorporates an output for multi-colored LED strips, which are excellent for FPV racing, line of sight orientation, and night flight.

BATTERY MONITORING Built in battery voltage monitoring with an input for additional onboard current monitoring.

BUZZER Buzzer port for audible warnings and setup notifications. SERIAL PORTS 3 independent Serial Ports (UART1, UART2, and UART3) that are NOT shared with the USB port.
