Description

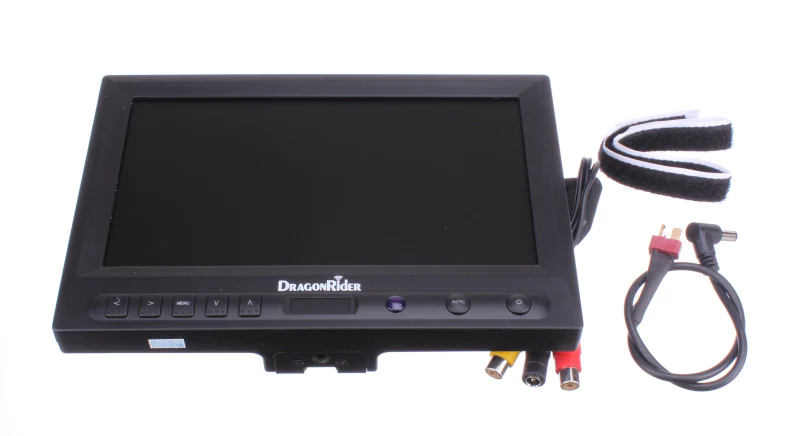

Dragon Rider M80G is a high bright FPV TFT LCD monitor designed for FPV application.

Features:

Ultra Bright 450cd/m*m High-Definition Display

Supports Composite Video RCA Input

Display Resolution up to 800*480 Pixels

16:9 or 4:3 Adjustable Display Ratio

Designed for FPV Application

Connect with the camera, as a monitor or secondary monitor of aerial

1/4-20″ Thread hole is included in the bottom, easily to mount on the tripod

High brightness, contrast ratio & Dizzy-proof monitor with sun shade, to see clearly under sunshine

Specifications：

Panel Size: 8-inch

LCD Type: TFT LCD

Resolution: 800 x3 (RGB) x 480

Backlight: LED

Horizontal frequency range: 30~60KHz

Field frequency range: 50~75Hz

Dot pitch: 0.0736 (W) x 0.2072 (H) mm

Aspect Ratio: 16:9

Brightness: 450 cd/m*m

Contrast Ratio: 500:1

Response time: 15ms

Viewing Angle: 70°/70°, 50°/70° (L/R,U/D)

Input Voltage: DC 6-18V

Power Consumption: 7W Watts

Inputs: Compostie 1 Video RCA Input, 1 Audio RCA Input

Speaker: Built in, 1 Watt

Mount: 1/4-20″ Thread and VESA mounting socket (75mm)

Storage Temperature: -20°C to 60°C

Operating Temperature: -30°C to 70°C

Size: 210mm x 148mm x 35mm

Net weight: 540g
