Description

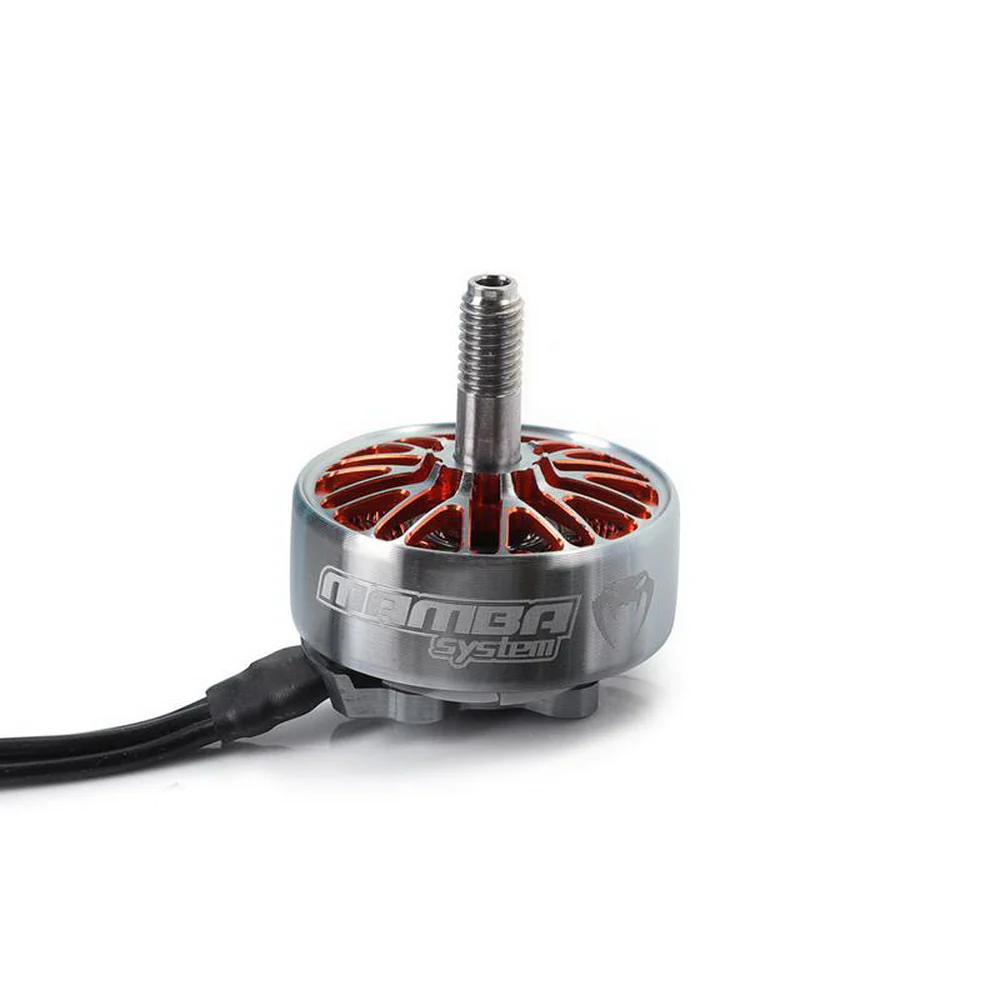

DIATONE Mamba TOKA 2306.5 1700kv, 2450kv or 2650kv Racing motor

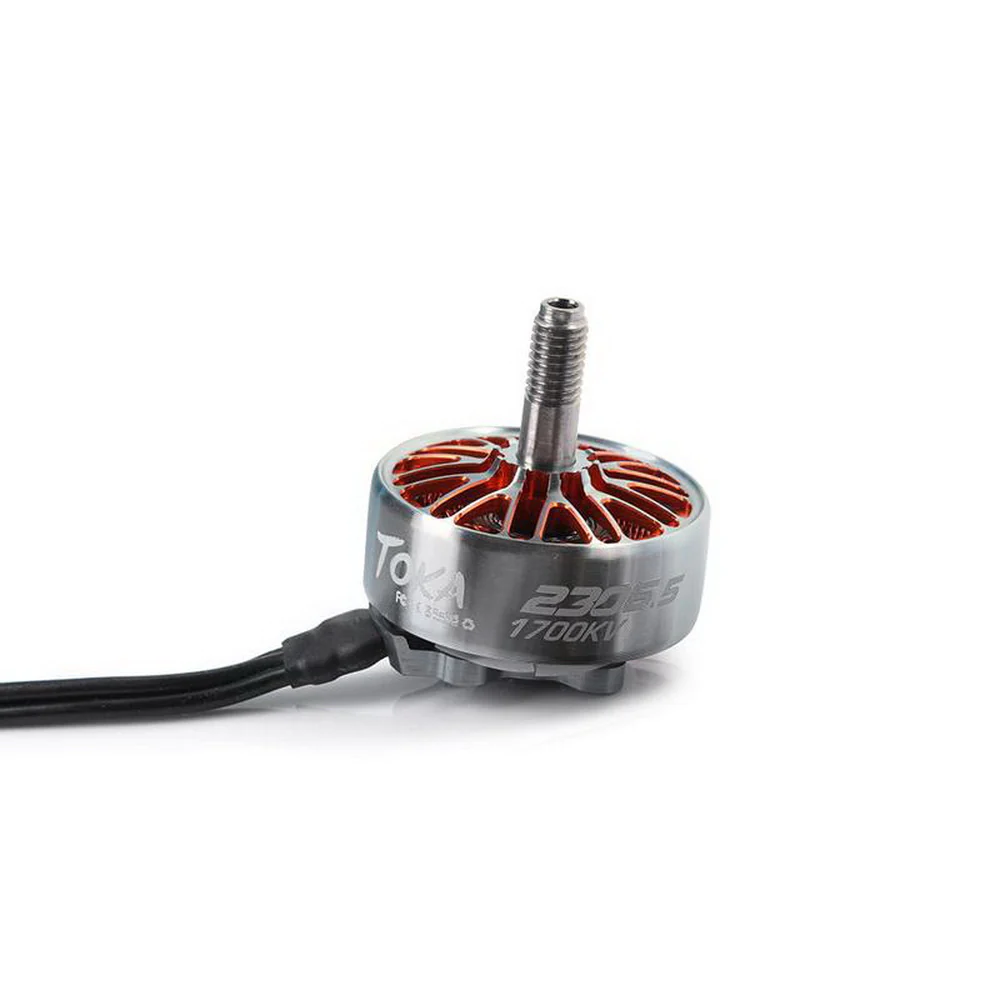

MAMBA TOKA 2306.5 1700KV MOTOR

MOTOR TABLE

Overall Dimension:Φ29.7×18.7mm

prop mounting shaft diameter: M5

Installation hole position:16×16mm，M3

Prop: 5inch

Bearing：9*4*4

Shaft Diameter:4.0mm

Lead Wire Size：24AWG×100mm

slots/poles:12N14P

Magnet Wire: 240℃ Enameled Wire

Stator Diamter：23mm

Stator Height:6mm

Rated Voltage:4~6S (16.8V~25.2V)

Peak Current: 45A

ldle Current：10V/1.17A

Maximum Power: 1100W

Internal Resistance：77Ω

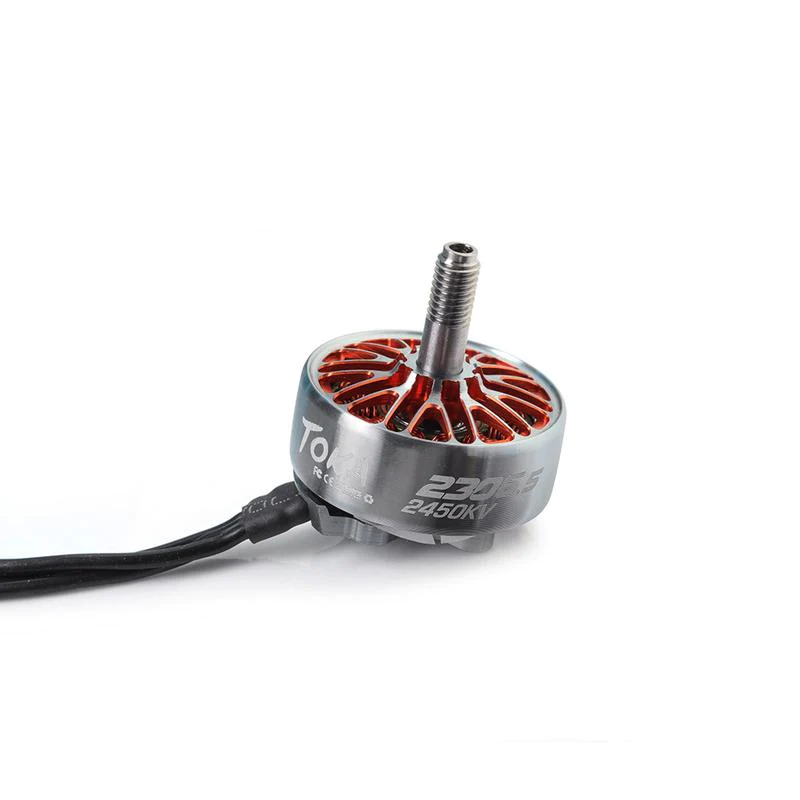

MAMBA TOKA 2306.5 2450KV MOTOR

Overall Dimension:Φ29.7×18.7mm

prop mounting shaft diameter: M5

Installation hole position:16×16mm，M3

Prop: 5inch

Bearing：9*4*4

Shaft Diameter:4.0mm

Lead Wire Size：24AWG×100mm

slots/poles:12N14P

Magnet Wire: 240℃ Enameled Wire

Stator Diamter：23mm

Stator Height:6mm

Rated Voltage:3~4S (12.6V~16.8V)

Peak Current: 45A

ldle Current：10V/1.98A

Maximum Power: 730W

Internal Resistance：52Ω

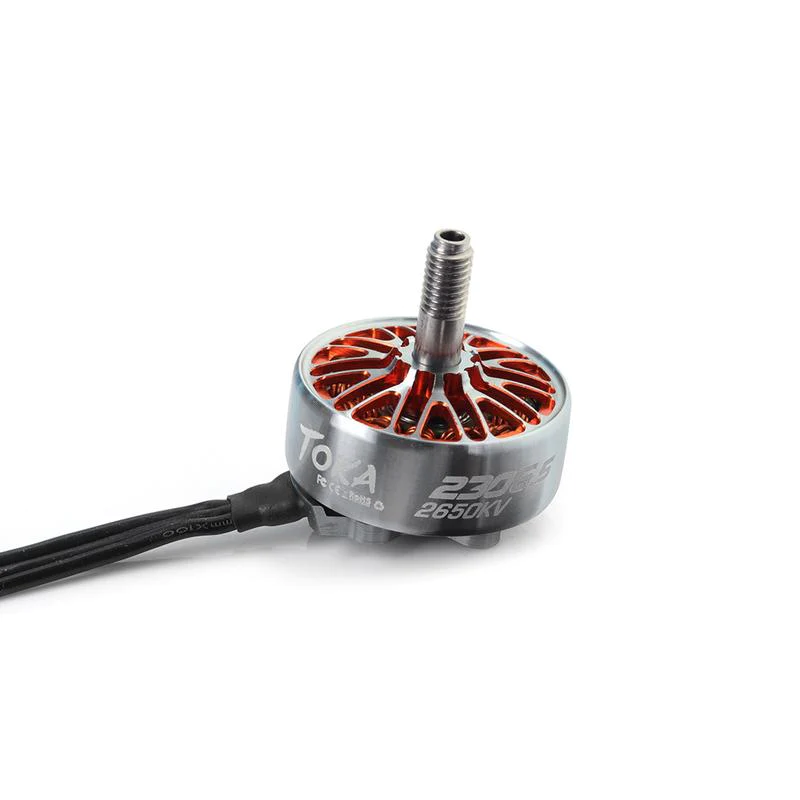

MAMBA TOKA 2306.5 2650KV MOTOR

Overall Dimension:Φ29.7×18.7mm

prop mounting shaft diameter: M5

Installation hole position:16×16mm，M3

Prop: 5inch

Bearing：9*4*4

Shaft Diameter:4.0mm

Lead Wire Size：24AWG×100mm

slots/poles:12N14P

Magnet Wire: 240℃ Enameled Wire

Stator Diamter：23mm

Stator Height:6mm

Rated Voltage:3~4S (12.6V~16.8V)

Peak Current: 59A

ldle Current：10V/2.5A

Maximum Power: 940W

Internal Resistance：38Ω
