Description

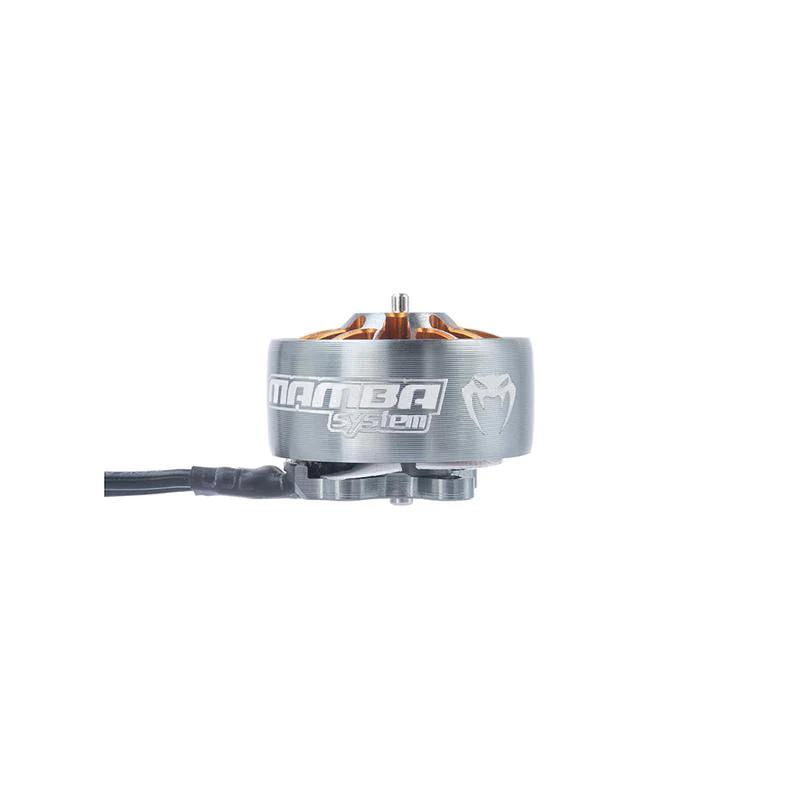

DIATONE MAMBA TOKA 1606 2700kv, 3100kv, 3750kv or 4300kv Brushless Motor

Specification：

MAMBA TOKA 1606 3100kv Motor

Overall Dimension:Φ22.5×11.6mm

prop mounting shaft diameter:2.0mm

Installation hole position:12×12mm，M2

Prop: 3inch~4inch

Bearing： 5*2*2.5

Shaft Diameter:2.0mm

Lead Wire Size：24AWG ×150mm

Configuration:9N12P

Magnet Wire: Class H，240℃ Enameled Wire

Stator Diamter：16mm

Stator Height:6mm

Rated Voltage: 4~6S (16.8V~25.2V)

Peak Current: 21.28A

ladle Current：10V/0.9A

Maximum Power: 512W

Internal Resistance：110Ω

MAMBA TOKA 1606 4300KV MOTOR

Overall Dimension:Φ22.5×11.6mm

prop mounting shaft diameter:2.0mm

Installation hole position:12×12mm，M2

Prop: 3inch~4inch

Bearing： 5*2*2.5

Shaft Diameter:2.0mm

Lead Wire Size：24AWG ×150mm

Configuration:9N12P

Magnet Wire: Class H，240℃ Enameled Wire

Stator Diamter：16mm

Stator Height:6mm

Rated Voltage: 3~4S (12.6V~16.8V)

Peak Current: 23.62A

ladle Current:8V/1.4A

Maximum Power: 378W

Internal Resistance：90Ω

MAMBA TOKA 1606 2700KV MOTOR

Overall Dimension:Φ22.2×15mm

Shaft Diameter:1.5mm

Installation hole position:12×12mm，M2

Prop: 3inch~4inch

Bearing： 5*2*2.5

Diameter:2mm

Lead Wire Size：24AWG ×150mm

Configuration:9N12P

Magnet Wire: Class H，220℃ Enameled Wire

Stator Diamter：16mm

Stator Height:6mm

Rated Voltage: 3~6S (12.6V~25.2V)

Peak Current: 17.6A

ldle Current：10V/0.5A

Maximum Power: 409W

Internal Resistance：164Ω

MAMBA TOKA 1606 3750KV MOTOR

Overall Dimension: Φ22.2×15mm

Shaft Diameter:1.5mm

Installation hole position:12×12mm，M2

Prop: 3inch~4inch

Bearing： 5*2*2.5

Diameter:2mm

Lead Wire Size：24AWG ×150mm

Configuration:9N12P

Magnet Wire: Class H，220℃ Enameled Wire

Stator Diamter：16mm

Stator Height:6mm

Rated Voltage: 3~4S (12.6V~16.8V)

Peak Current: 21.1A

ladle Current：9v/0.8A

Maximum Power: 338W

Internal Resistance：114Ω
