Description

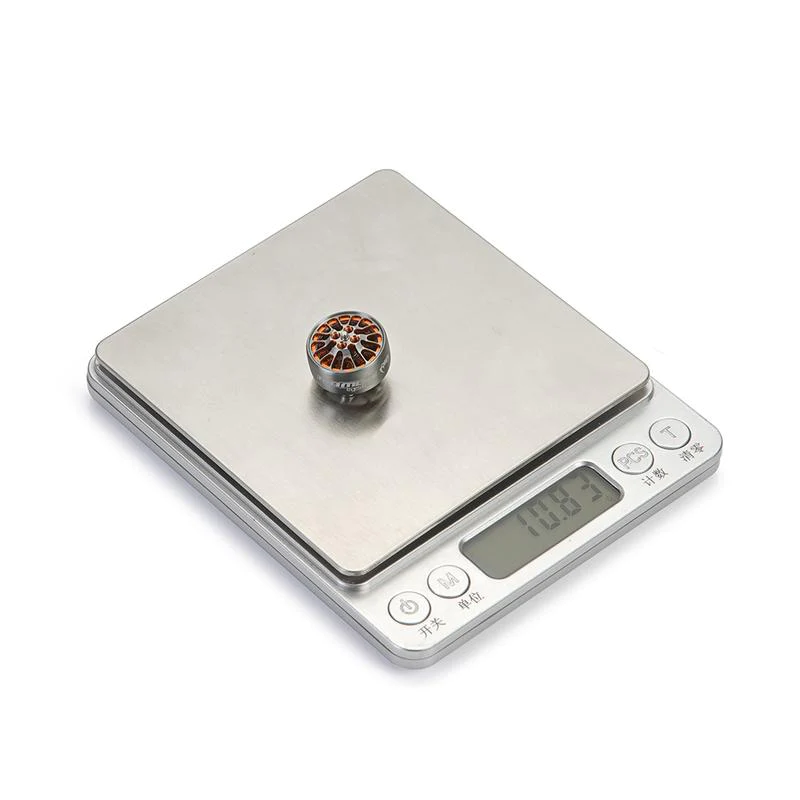

DIATONE Mamba TOKA 1505 2650kv or 3800kv Racing motor

1505 2650KV Racing Drone

MOTOR TABLE

Overall Dimension:Φ16.8×10.9mm

prop mounting shaft diameter:1.5mm

Installation hole position:12×12mm，M2

Prop: 3inch~4inch

Bearing：5*2*1.5

Shaft Diameter:2.0mm

Lead Wire Size：24AWG×100mm

slots/poles:12N14P

Magnet Wire: 240℃ Enameled Wire

Stator Diamter：15mm

Stator Height:5mm

Rated Voltage:4~6S (16.8V~25.2V)

Peak Current: 14.5A

ldle Current：10V/0.42A

Maximum Power: 230W

Internal Resistance：285Ω

1505 3800KV Racing Drone

Overall Dimension:Φ16.8×10.9mm

prop mounting shaft diameter:1.5mm

Installation hole position:12×12mm，M2

Prop: 3inch~4inch

Bearing：5*2*1.5

Shaft Diameter:2.0mm

Lead Wire Size：24AWG×100mm

slots/poles:12N14P

Magnet Wire: 240℃ Enameled Wire

Stator Diamter：15mm

Stator Height:5mm

Rated Voltage:3~4S (12.6V~16.8V)

Peak Current: 18A

ldle Current：6V/0.55A

Maximum Power: 290W

Internal Resistance：160Ω
