Description

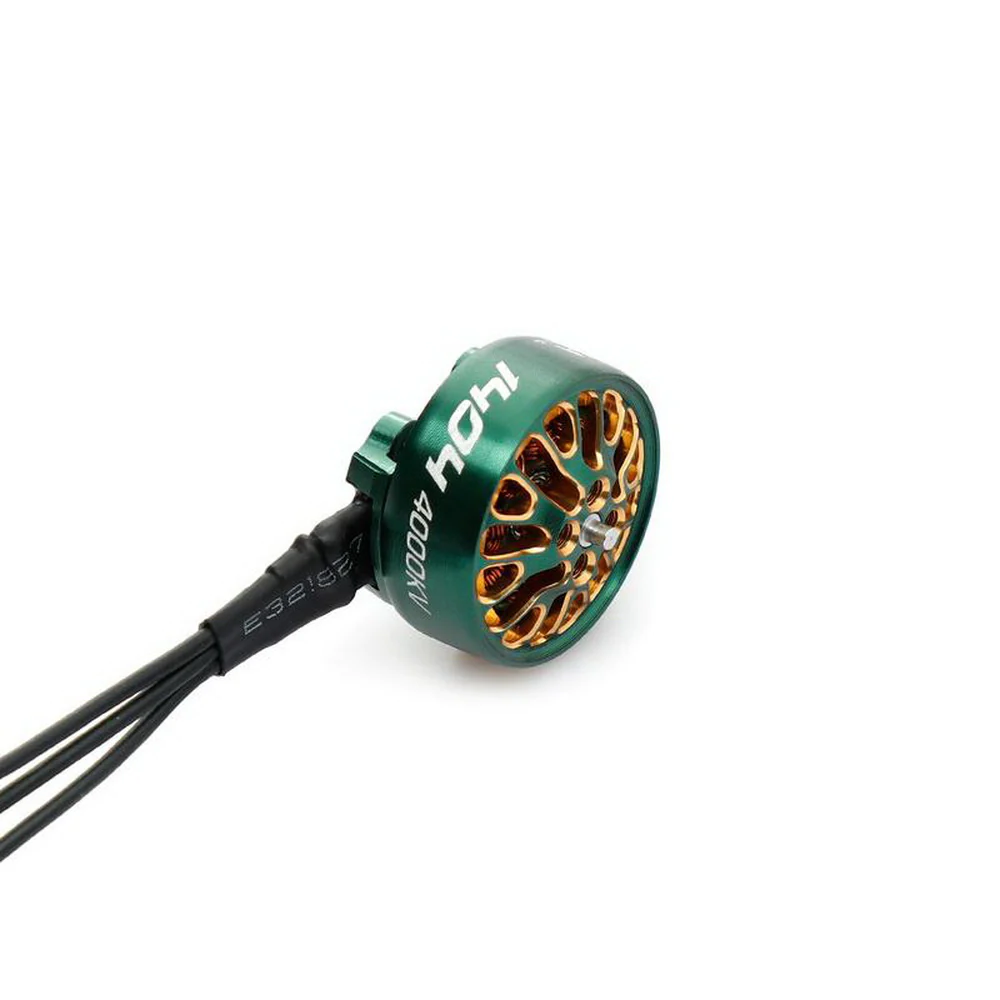

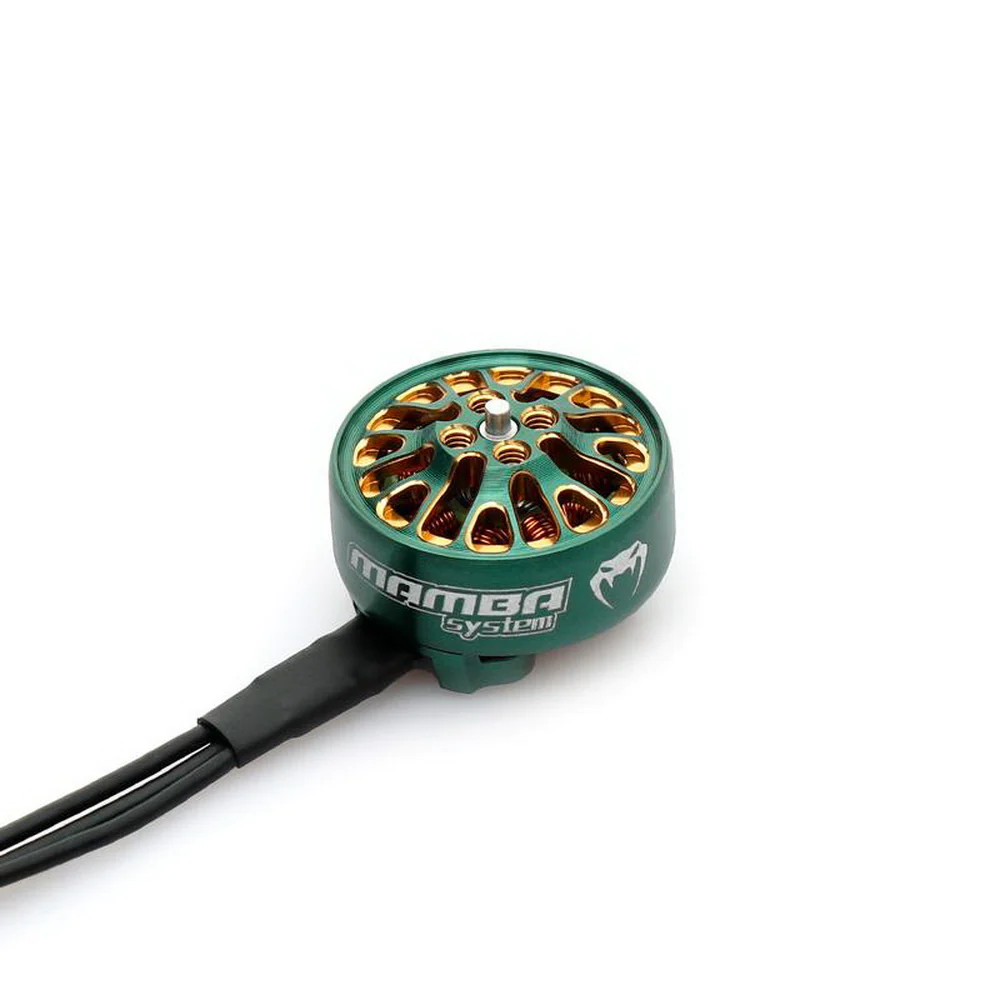

DIATONE MAMBA TOKA 1404 3000KV or 4000KV Racing Motor Green

Specification:

MAMBA TOKA 1404 3000KV Racing Motor Green

Overall Dimension:Φ20.5×15mm

prop mounting shaft diameter:1.5mm

Installation hole position:12×12mm，M2

Prop: 2.5inch~4inch(Toothpick)

Bearing： 5*2*2.5

Shaft Diameter:2mm

Lead Wire Size：24AWG×150mm

slots/poles:9N12P

Magnet Wire: 240℃ Enameled Wire

Stator Diamter：14mm

Stator Height:4mm

Rated Voltage:3S~6S (12.6V~25.2V)

Peak Current: 11.95A

ldle Current：10V/0.3~1.0A

Maximum Power: 286.8W

Internal Resistance：310Ω

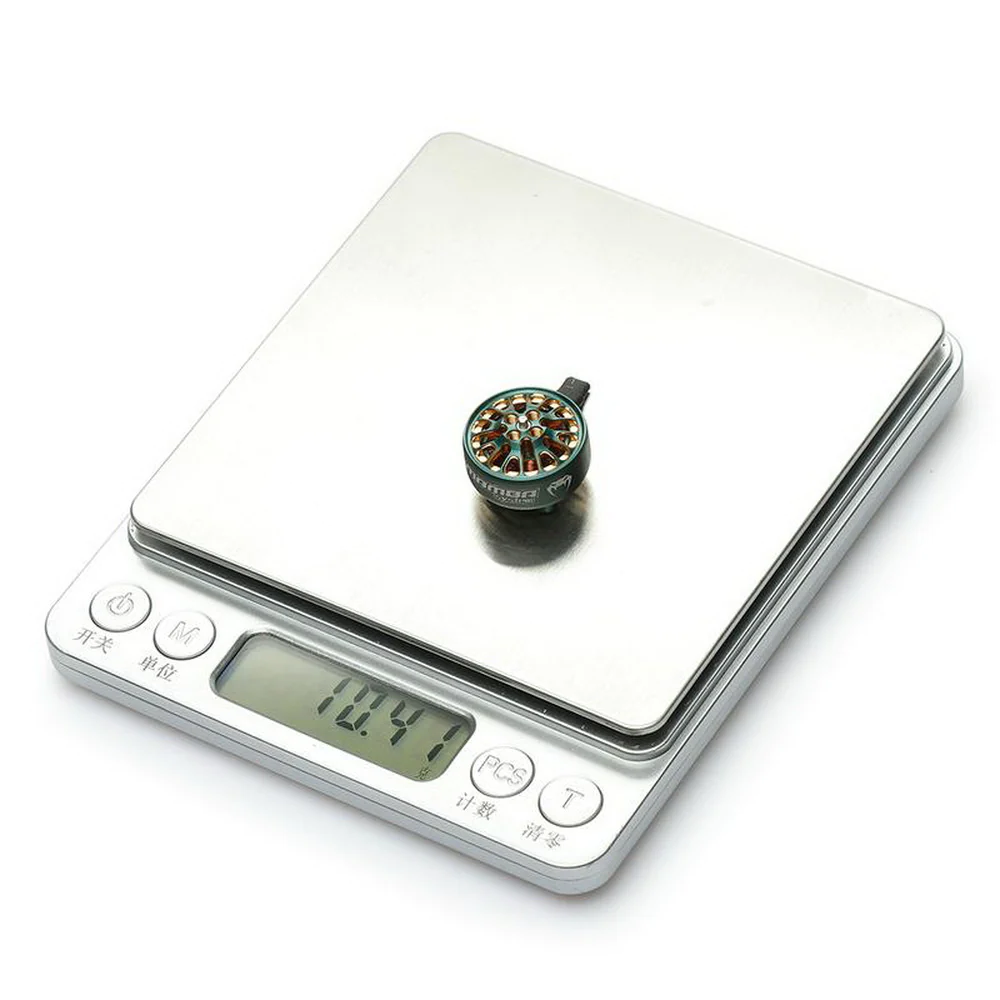

Weight: 10.5g
