Description

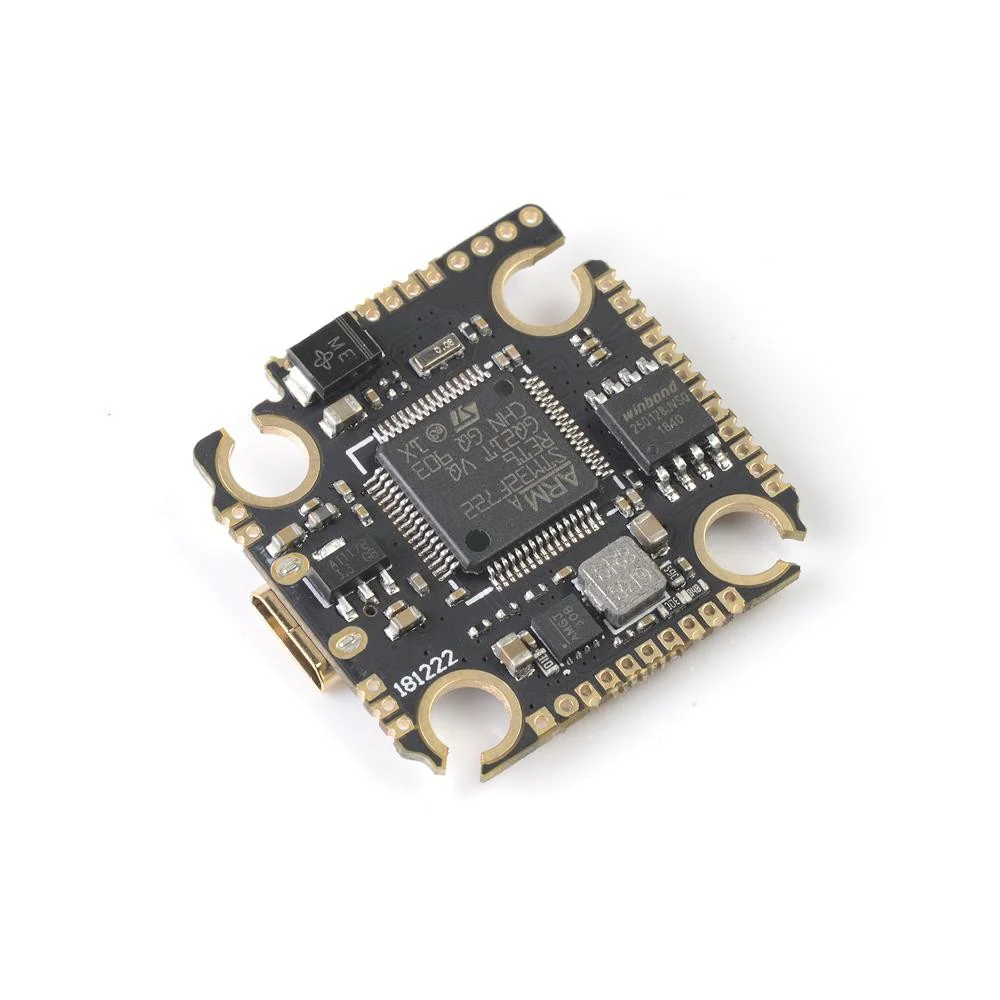

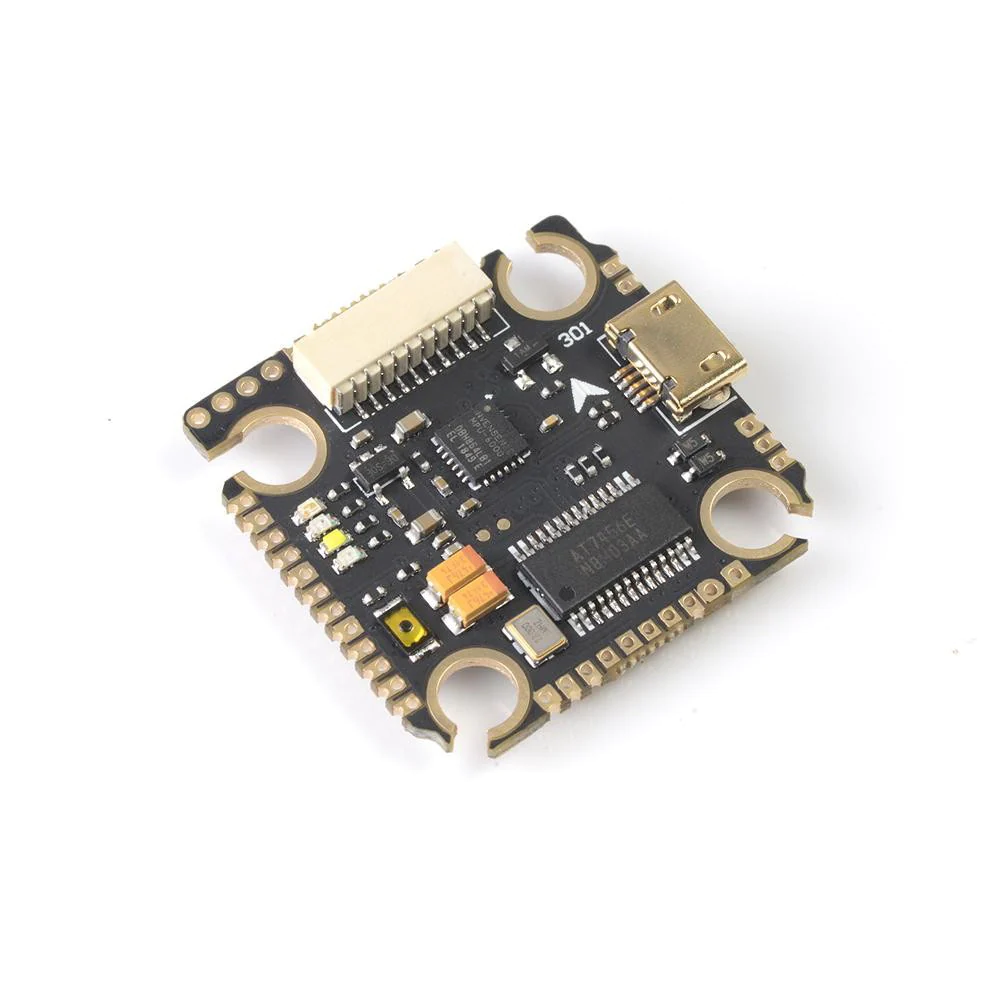

Diatone MAMBA F722 MINI FC-MB-F722MINI

Note: The STM32F722 generates much heat, please leave at least 5mm on both sides of the FC to give good air circulation.

Diatone’s Mamba series gives racers an edge in competition. The latest F7 processing technology means you can focus on flying, not on the limits of your equipment, even in a 20×20 form factor FC.

With a wide range of setup options and features, you can configure your stack however you’d like.

Specifications

F722 Mini Flight Controller

MCU: 216MHz STM32F722RET6 32BIT

IMU: MPU6000

Baro: No

OSD: BF OSD

Blackbox: 16M Flash Memory

Uarts: 6Set

ESC Protocol: Dshot300/600/1200

ESC Telemetry: RX2

LED: Blue&Orange for FC Status, White 5V, Red 3.3V

WS2812 LED Control: BF LED Control

Smartaudio: Yes

RSSI: Yes

Buzz: Yes

Input: 2~6S Lipo (8.4~25V)

VTS Protection: Yes

BEC: 5V 2A (Max 3A)

Other

FC Firmware: BetaFlight

Target: MAMBA F722 Download Link

Physical

Mounting: 20×20mm, Φ2

Weight: 3.9gg total

Includes

1x Diatone Mamba F722 Mini 20×20 Flight Controller
