Description

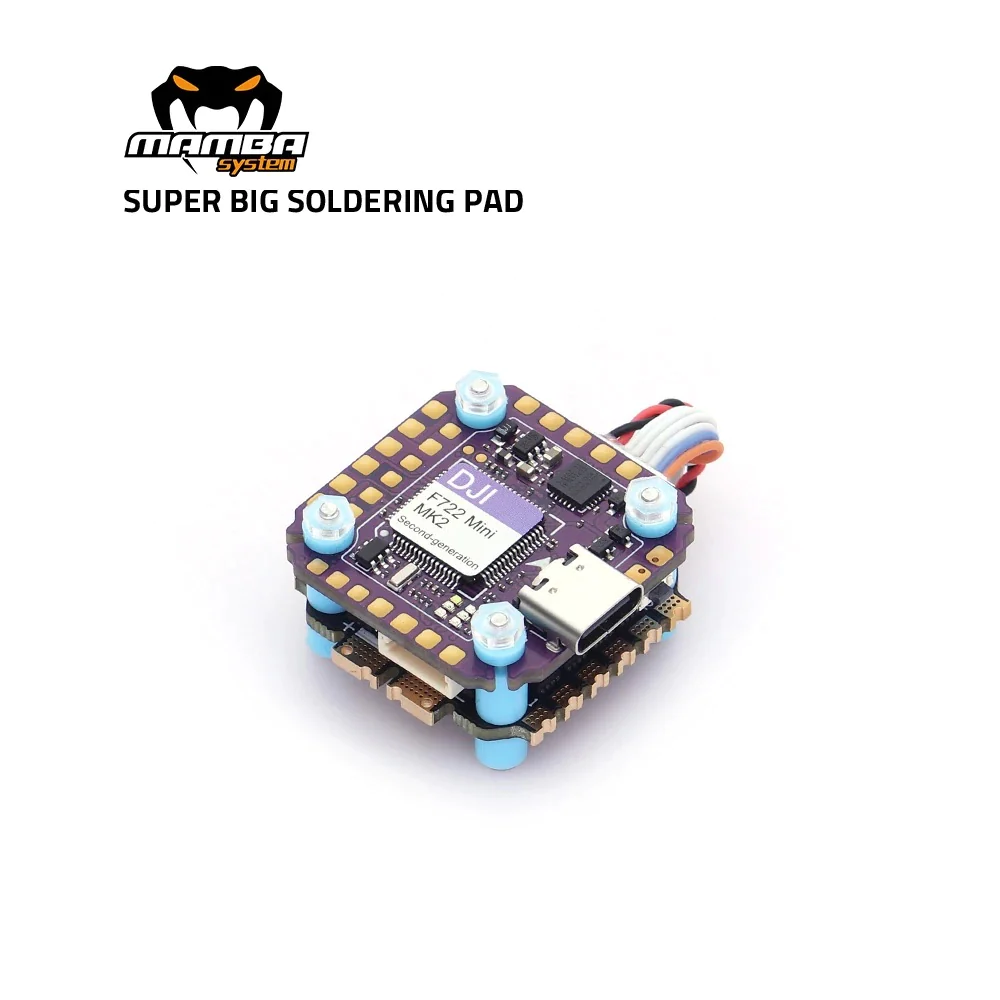

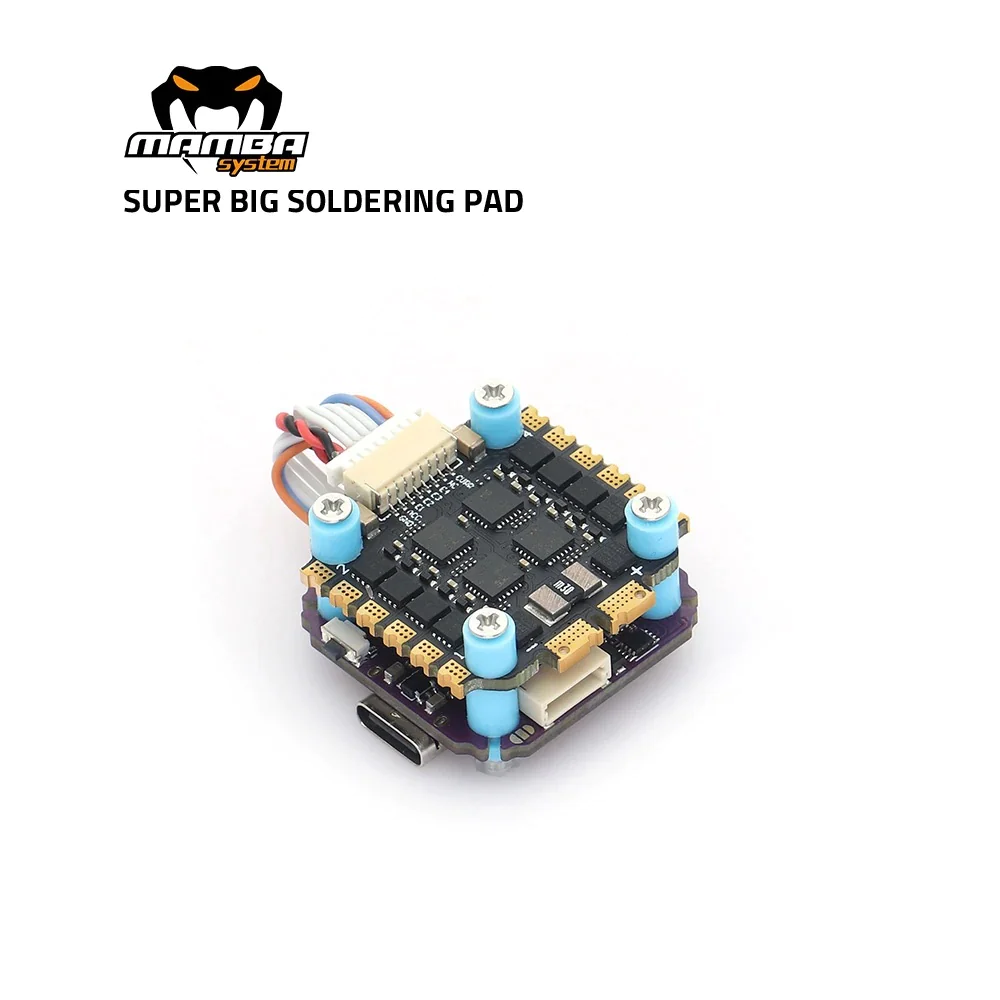

Introducing the MAMBA DJI F722 Mini MK2 40A 2-6S 8bit Flight Controller Stack, the perfect choice for drone enthusiasts seeking a high-performance system with advanced features.

Flight Controller (FC) Specifications:

MAMBA DJI F722MINI MK2

MCU: 216MHz STM32F722RET6

GYRO: MPU6000

Barometer: Yes

OSD: Yes

Blackbox: NO

Uarts: 6 Set

ESC Soft: Dshot300/600/1200

ESC Telemetry: Yes

Power Led: Yes

LED Controller: BF LED

F.Port: Yes

RSSI: Yes

Buzz: Yes

Input: 26S Lipo (8.425.2V)

TVS Protection: Yes

BEC: 3.3V 0.5A& 5V 2.5A /9V 2A

MOUNTING: 20mm, M2

Electronic Speed Controller (ESC) Specifications:

MAMBA F40_BLS MINI

INPUT VOLTAGE: 26S Lipo (8.4V25V)

CONTINUE CURRENT: 40A×4

BURST CURRENT: 45A (10S)

BEC: No

Target：BLHeli_S CH40

SOFT: Dshot300/600

TVS Protection: Yes

MOUNTING: 20mm, M3/M2

Supply:

High-Frequency 470uF/35V ×1

8pin sh1.0 ×2

DJI 8pin ×1

16AWG 60mm ×2

AMASS Original XT60

With advanced features such as six sets of UARTs, multiple telemetry options, and TVS protection, this stack is a great choice for your drone building needs. The package comes with high-frequency capacitors, 8-pin connectors, and AMASS Original XT60 connectors to ensure reliable performance.
