Description

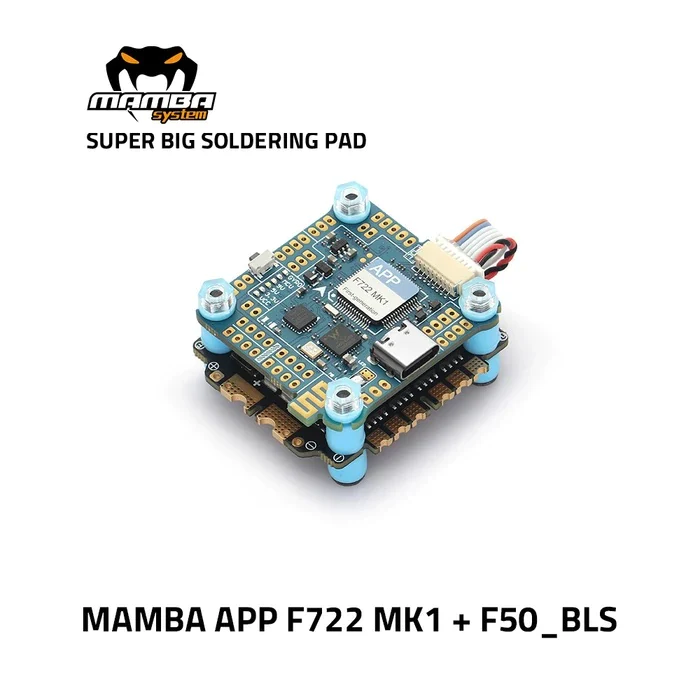

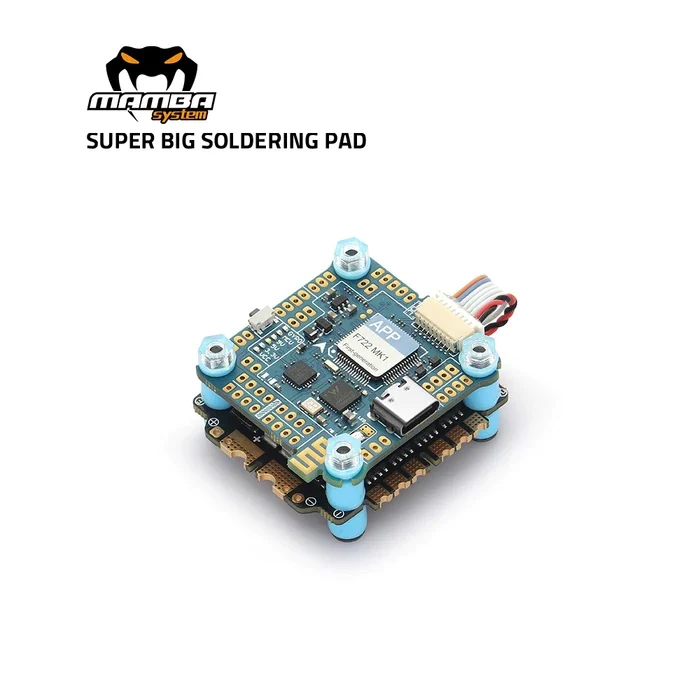

The MAMBA APP (WIFI) F722 MK1 50A 6S 8bit Flight Controller Stack is a powerful and efficient flight controller system designed for use with quadcopters and other similar devices. The system features a number of impressive specifications, including an MCU clocked at 216MHz, an MPU6000 gyro, 16M flash memory Blackbox, and support for Dshot300/600/1200 ESC Soft.

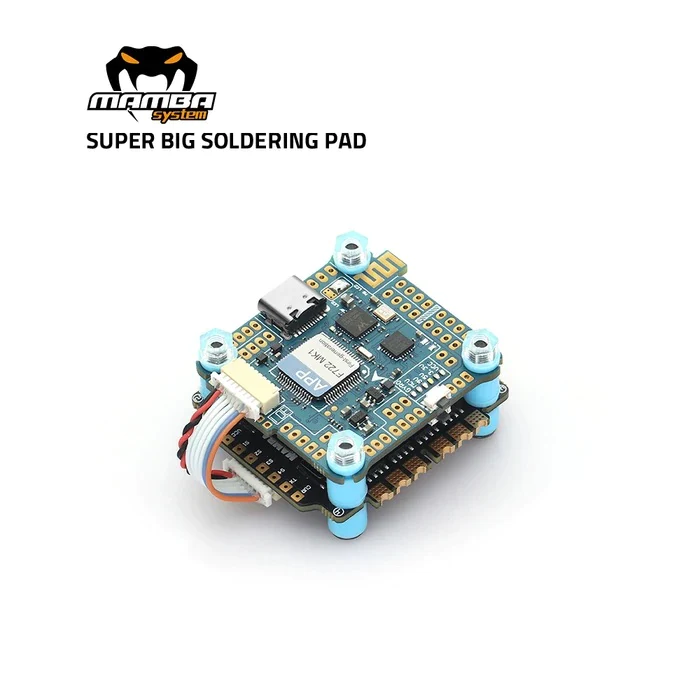

The MAMBA APP F722MK1 flight controller also includes a range of useful features, including 6Set Uarts, F.Port, RSSI, and Buzz support, as well as a SpeedyBee APP WIFI interface for easy connectivity. The system is compatible with 36S Lipo batteries (12.625.2V) and includes TVS protection and a BEC with 3.3V 0.5A & 5V 3A (System Power) & 5V 3A(LED) & 9V 3A output.

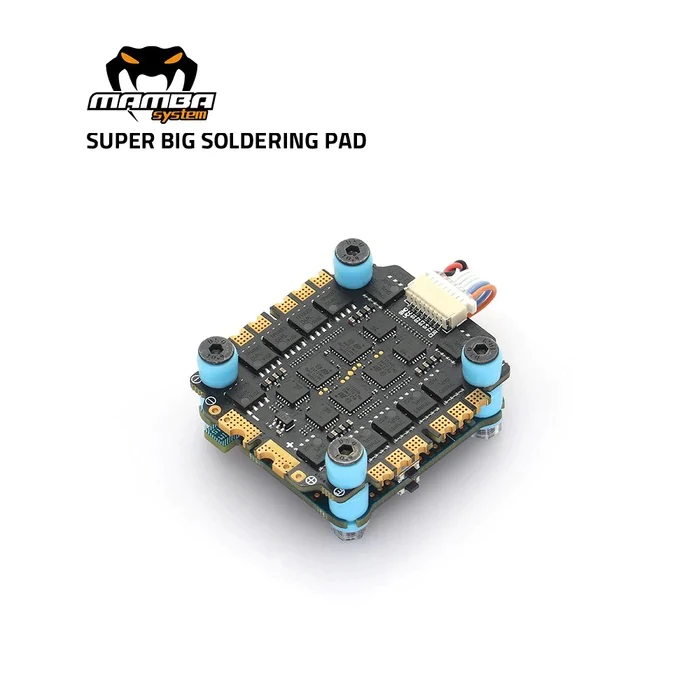

The MAMBA F50_BLS ESC included in the stack has an input voltage range of 36S Lipo (12.6V25.2V), can handle a continuous current of 50A × 4, and a burst current of 60A (10S). It is compatible with BLHeli_S CH40 and supports Dshot300/600 ESC Soft. The ESC also includes TVS protection and is mounted with 30.5mm/M3.

The package comes with a high-frequency 470uF/35V capacitor, 8pin sh1.0 connector x 2, 12AWG 100mm wire x 2, and an AMASS Original XT60 connector for easy installation.
