Description

MAMBA | Super Big Soldering Pad

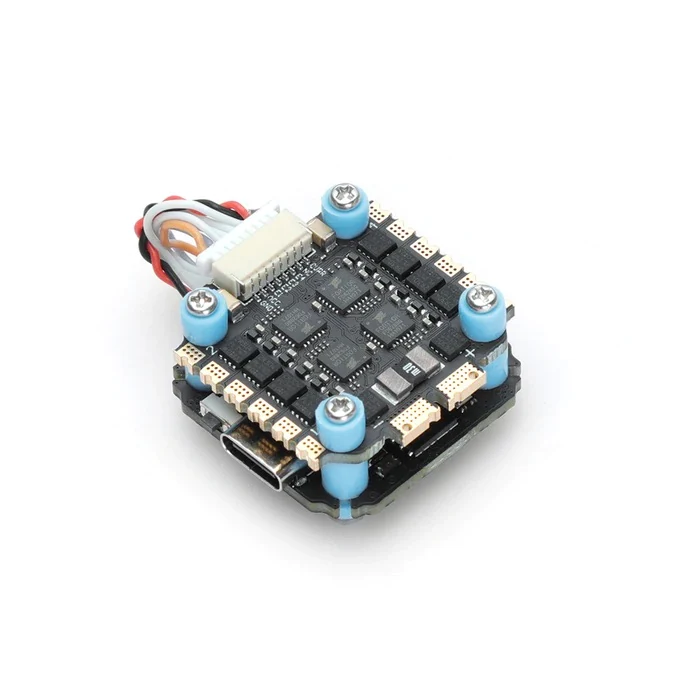

MAMBA Stack Basic F722 Mini MK3 40A 6S 8bit

Fixed

Add I2C function

When you connect the USB, the receiver and OSD settings can be saved

Increase the pad area

LED signal selection （when Mamba Led sys avaiable）

BEC short circuit protection

TVS instant high voltage protection 30V

Update

Upgrade the anti-interference cable

Use Typec（Most）

The pad area of the Mini flight controller (20×20) increased by 140%

Added

Add self-recovery insurance to the receiver’s 5V power supply.

Increase the camera VCC power supply pad.

The standard flight controller (30.5×30.5) adds a spare pad.

Gyro uses an independent Low Dropout Regulator (Low Dropout Regulator) and reduces ripple interference.

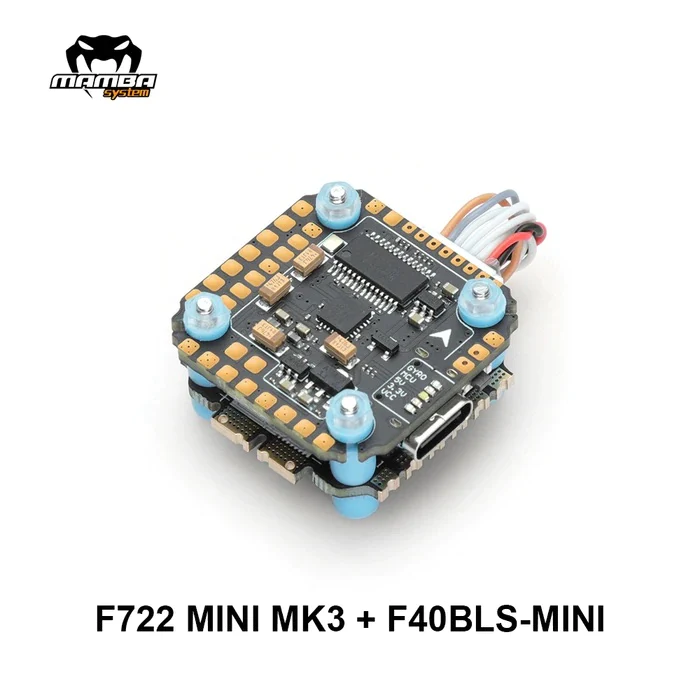

Model： Mamba Stack Basic F722 Mini MK3 40A BLS 6S

FC Specifications

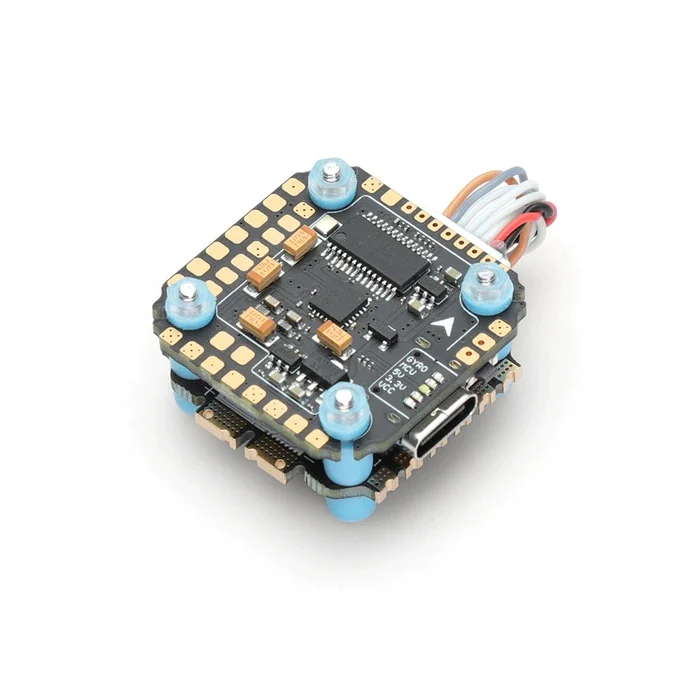

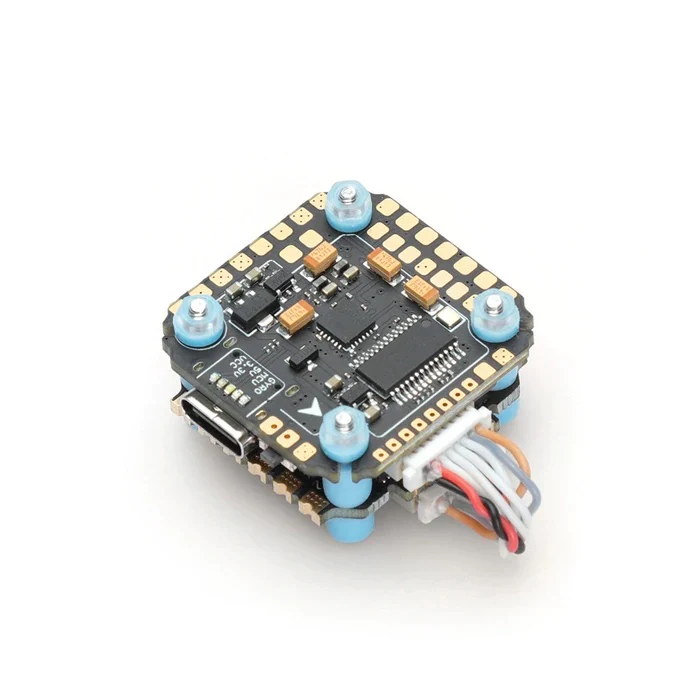

MAMBA Basic F722MINI MK3

MCU: 216MHz STM32F722RET6

GYRO: MPU6000

Barometer: Yes

OSD: Yes

Blackbox: 16M Flash Memory

Uarts: 6 Set

ESC Soft: Dshot300/600

ESC Telemetry: Yes

Power Led: Yes

LED Controller: BF LED

S/F.Port: Yes

RSSI: Yes

Buzz: Yes

Input: 2~6S Lipo (8.4~25.2V)

TVS Protection: Yes

BEC:3.3V 0.5A& 5V 2.5A

MOUNTING: 20mm, M2

ESC Specifications

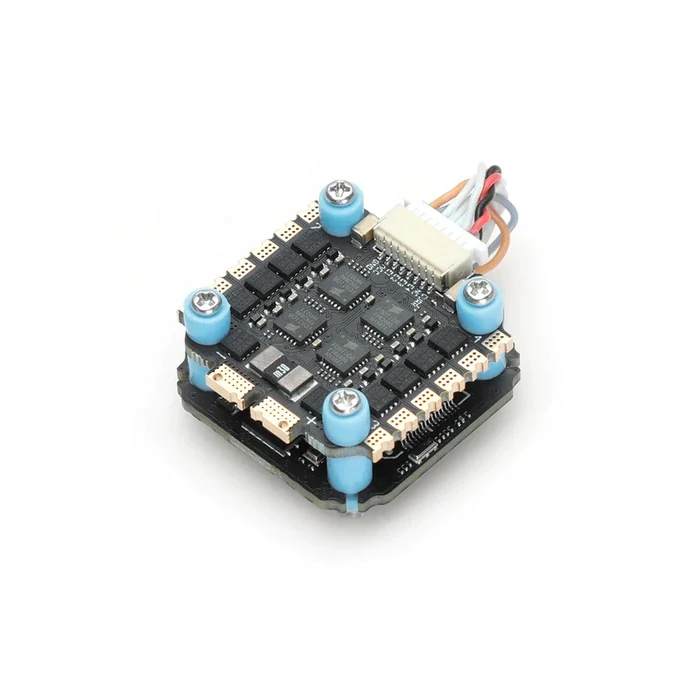

MAMBA F40_BLS MINI

INPUT VOLTAGE: 2~6S Lipo (8.4V~25V)

CONTINUE CURRENT: 40A×4

BURST CURRENT: 45A (10S)

BEC: No

Target：BLHeli_S CH40

SOFT: Dshot300/600

TVS Protection: Yes

MOUNTING: 20mm, M3/M2

Recommend For : 3inch / 4inch / Ultralight 5inch

Supply :

High-Frequency 470uF/35V ×1

8pin sh1.0 ×2

16AWG 60mm ×2

AMASS Original XT60
