Description

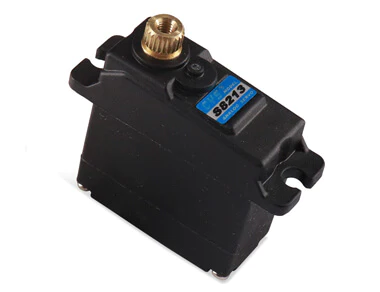

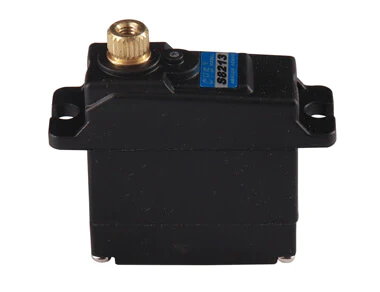

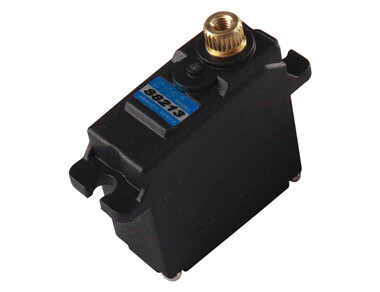

Item NO.: CYS-S8213 20g servo motor

Description : Robotics servo motor – servo motor for aircraft

Size : 29*13.5*30.4MM

Torque : 2.8Kg.cm ~ 3.0Kg.cm

Speed : 0.18sec ~ 0.16sec/60 degree

Voltage : 4.8Volts ~6.0Volts

Weight : 20± 1 g

Application&Features

Specification Sheet

Item No. S8213

Type Analog

Weight 20g

Size 29*13.5*30.4mm

Control System (+)Pulse Width Control 1500usec Neutral

Operating Voltage 4.8~6.0Volts

Operating Temperature Range (-)10 to +50 degree C

Operating Speed (6.0V) 0.14sec/60° at no load

Operating Speed (7.4V) 0.12sec/60° at no load

Stall Torque (6.0V) 2.8kg.cm

Stall Torque (7.4V) 3.0kg.cm

Operating Angle 45deg.one side pulse traveling 500 usec

360 Modifiable No

Direction Anticlockwise/Pulse Traveling 1000~2000usec

Current Drain (6.0V) 20mA/idle and 120mA no load operating

Current Drain (7.4V) 20mA/idle and 150mA no load operating

Stall Current 1A/1.3A

Dead Band Width 4usec

Motor Type Iron core

Bearing Type ball bearing

Horn gear spline 25T

Gear Type Metal

Connector Wire Length 300mm

Wire info Brown/Black = Negative

Red = Positive

Orange/White = Signal
