Description

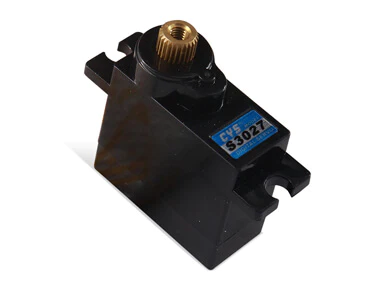

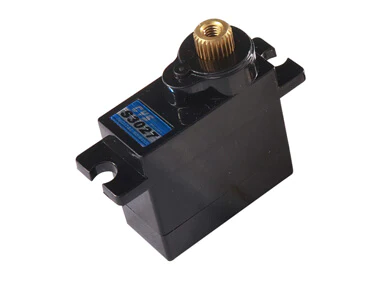

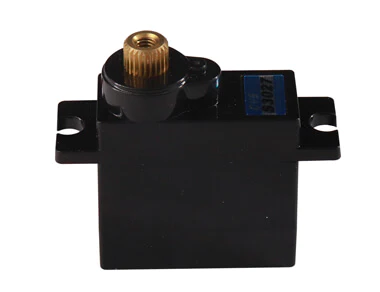

Item NO.: CYS-S3027

Description : 17g metal gear servo S3001 servo for aircraft

Size : 29*13.5*30MM

Torque : 2.5Kg.cm ~ 3.0Kg.cm

Speed : 0.12sec ~ 0.10sec/60 degree

Voltage : 4.8Volts ~6.0Volts

Weight : 20± 1 g

Application&Features

Item No. CYS-S3027

Type Digital

Weight 20g

Size 29*13.5*30mm

Control System (+)Pulse Width Control 1500usec Neutral

Operating Voltage 4.8-6.0V

Operating Temperature Range (-)14 to +50 °

Operating Speed (4.8V) 0.12sec/60°

Operating Speed (6.0V) 0.10sec/60°

Stall Torque (4.8V) 2.5kg.cm

Stall Torque (6.0VV) 3.0kg.cm

Operating Angle 45deg.one side pulse traveling 500 usec

Direction Anticlockwise/Pulse Traveling 1000~2000usec

Current Drain (4.8V) 20mA/ 120mA

Current Drain (6.0VV) 20mA/ 150mA

Stall Current 1.1A/1.3A

Dead Band Width 4usec

Motor Type Iron core

Bearing Type Single bearing

Horn gear spline 25T

Gear Type Metal

Connector Wire Length 180mm

Wire info Brown/Black = Negative

Red = Positive

Orange/White = Signal
