Description

Item NO.: CYS S2318

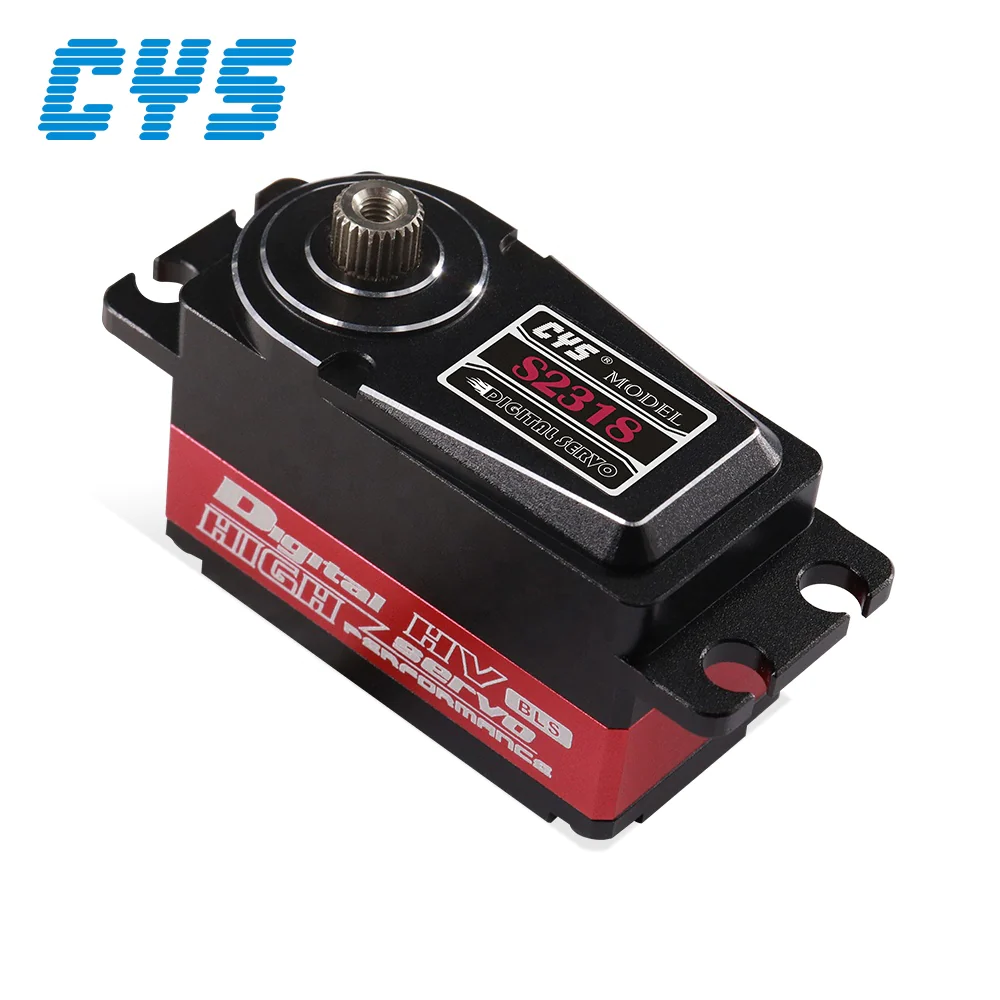

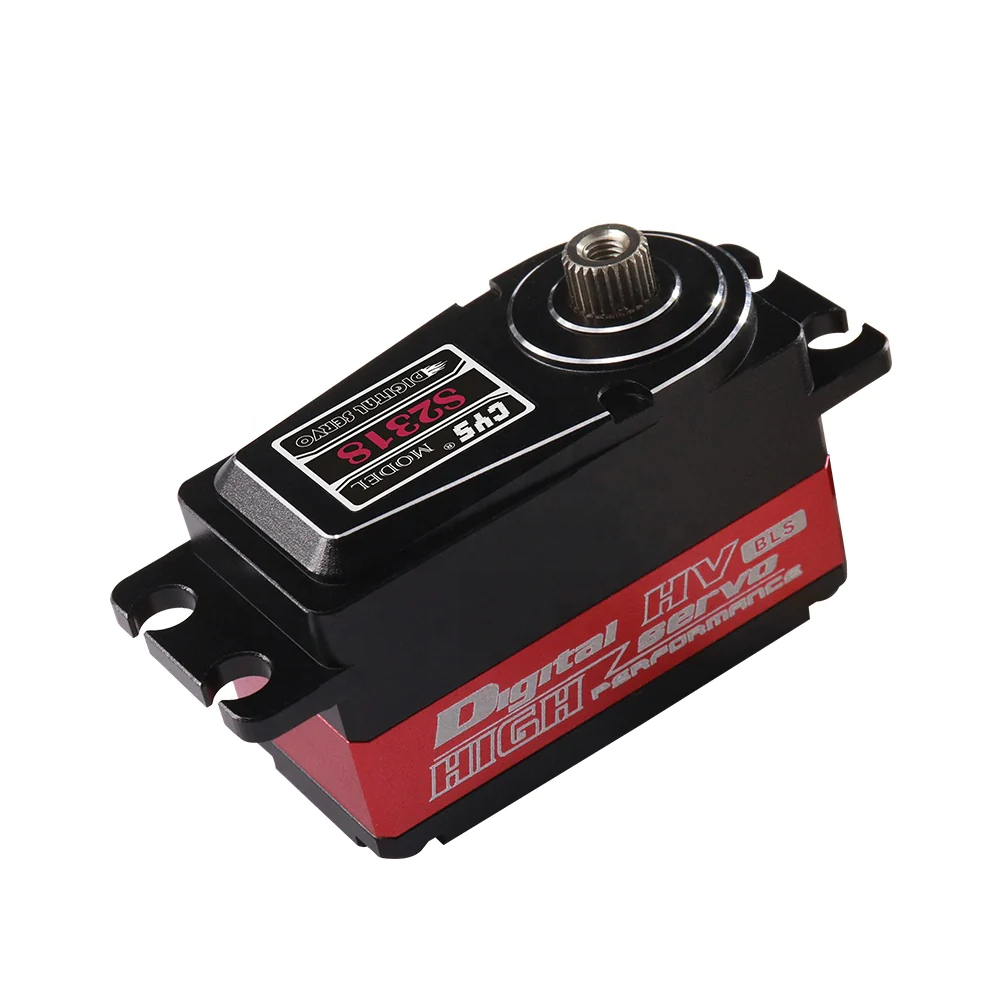

Description : Low Profile Waterproof 54g Metal Gear Digital Servo

Size : 40*20*25.2MM

Torque : 4.0Kg.cm ~ 5.0Kg.cm

Speed : 0.06sec ~ 0.05sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 54± 1 g

Item NO.

CYS-S2318

Type

Digital

Gear Type

Titanize Aluminum

Weight

54g

Size

40*20*25.5mm

Control System

(+)Pulse Width Control 1500μsec Neutral

Operating Voltage

6.0V-7.4V

Operating Temperature Range

(-)10 to +50 degree C

Operating Speed @ 6.0V-7.4V

0.06sec – 0.05sec at no load

Stall Torque @ 6.0V -7.4V

3.5kg.cm-4.5kg.cm

Current Drain (6.0V)

30mA/idle and 100mA no load operating

Current Drain (7.4V)

30mA/idle and 120mA no load operating

Stall Current

2.5A/2.8A

Dead Band Width

2μsec

Bearing Type

BB*2

Motor Type

Coreless

Horn gear spline

25T

Cable/Plug

300mm/JR

Wire information

Brown(N) Red (P) Orange(S)

Important Notes:

-Refer to the figure when installing the servo accessories.

-For engine powered airplanes and boats, rubber must be used to reduce vibration.

– Please choose correct model for your application.

-Torque over-loaded will damage the servo’s mechanism-.

– Keep the servo clean and away from dust, corrosive gas and humid air.

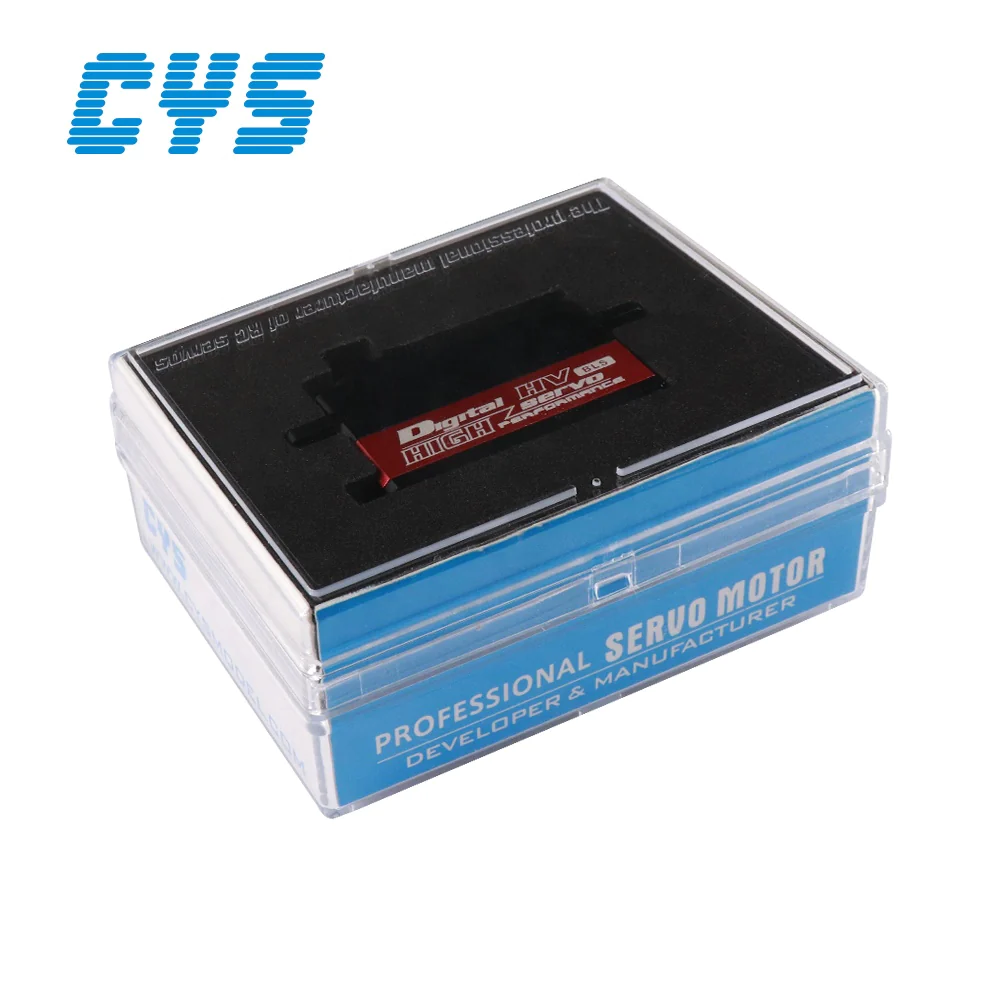

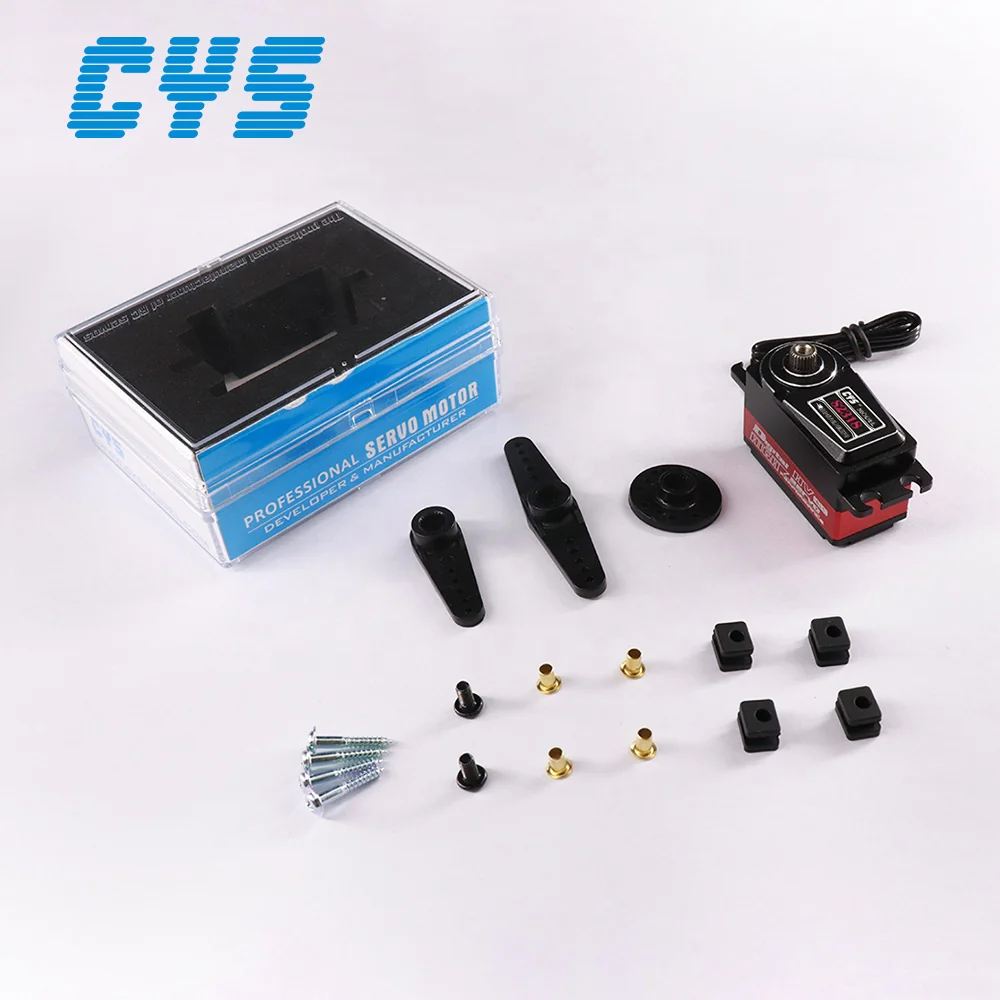

Package Included:

1 x CYS-S2318 Brushless Motor Metal Gear Servo
