Description

Item NO.: CYS S0250

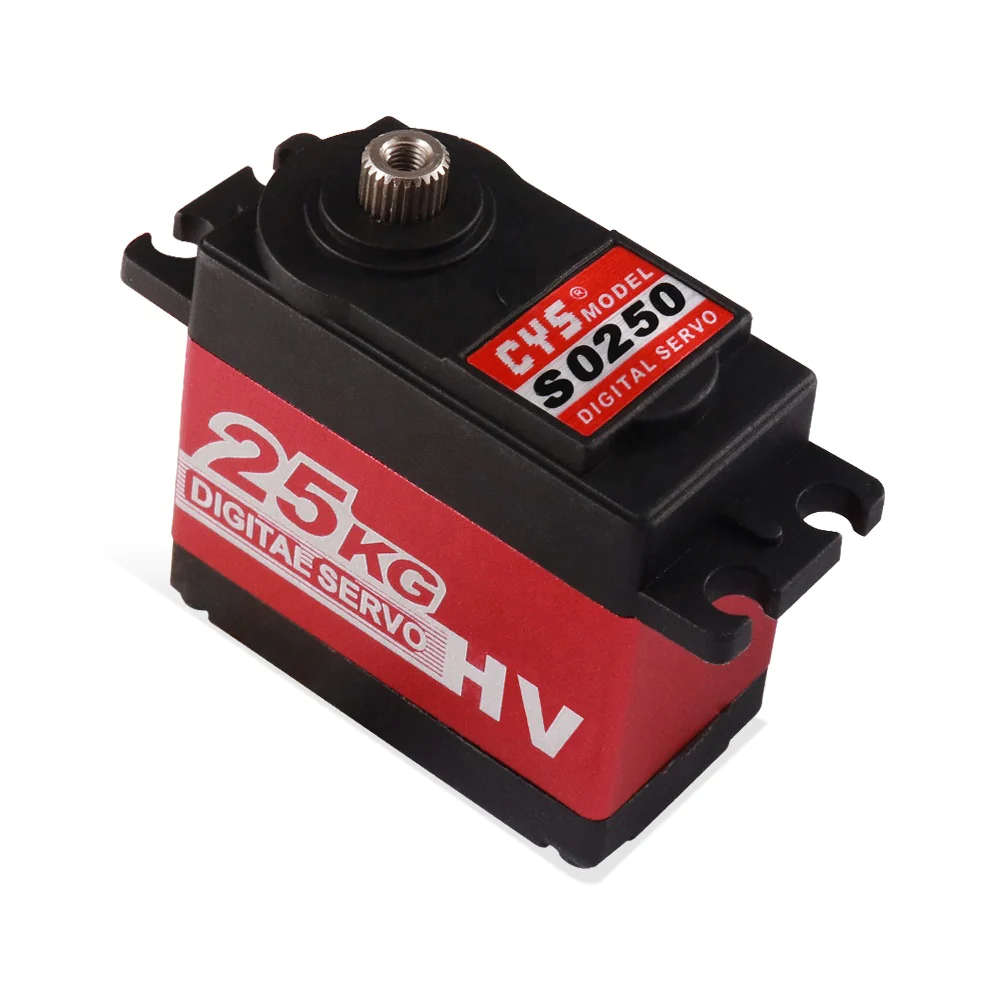

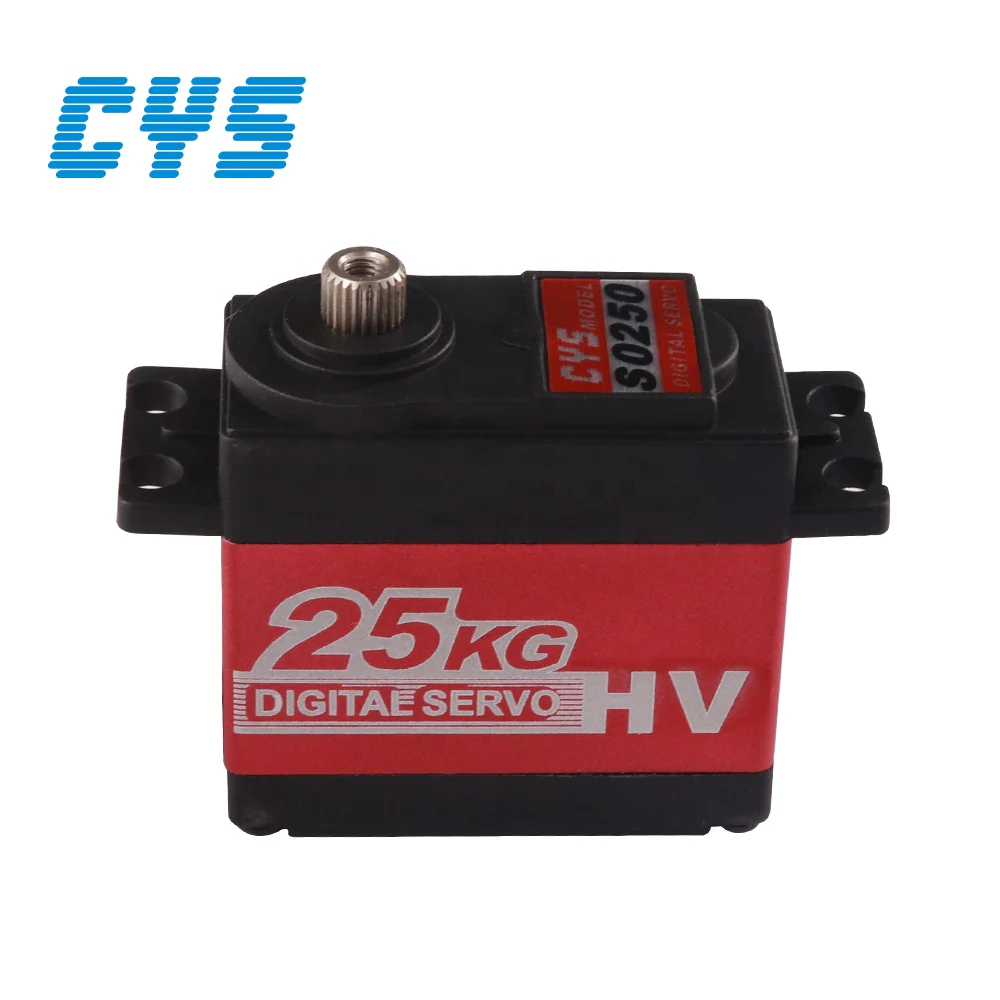

Description : Low Profile Waterproof 62g Metal Gear Digital Servo

Size : 40.5*20*38MM

Torque : 22Kg.cm ~ 25Kg.cm

Speed : 0.14sec ~ 0.12sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 62± 1 g

Important Notes:

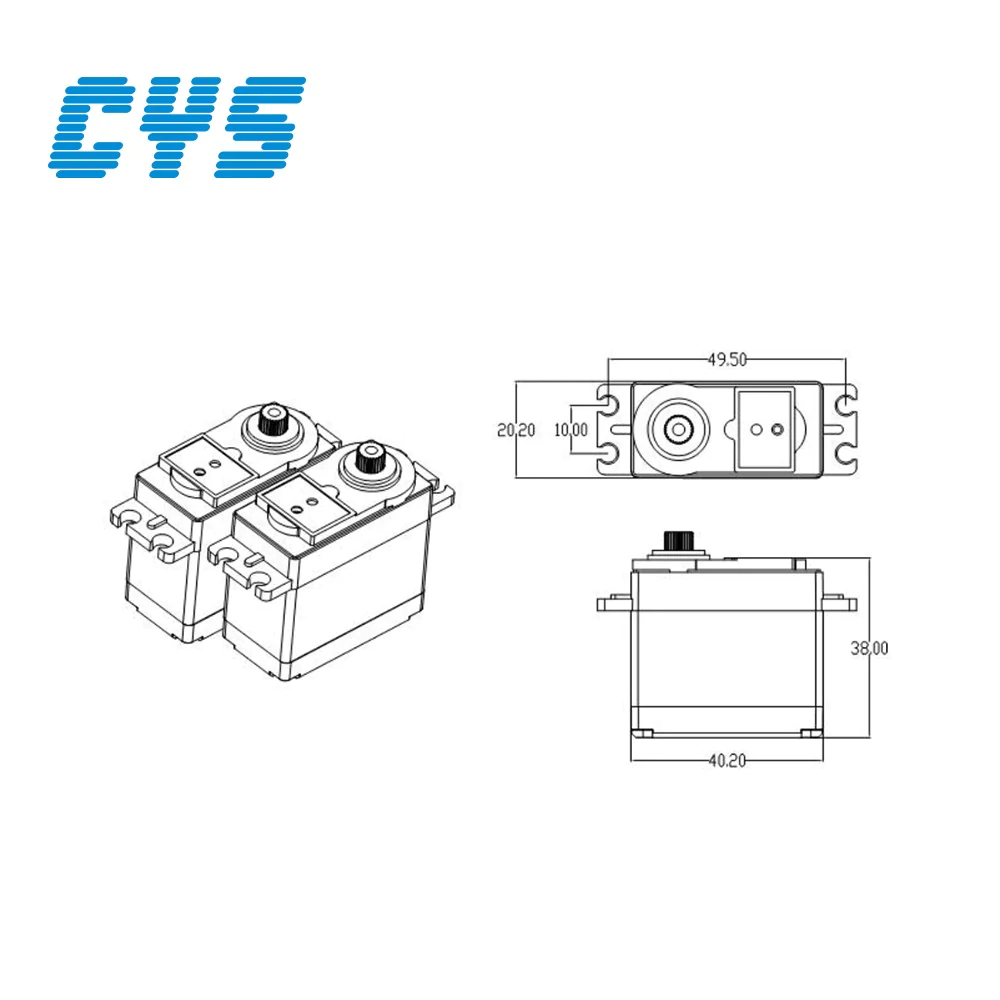

-Refer to the figure when installing the servo accessories.

-For engine powered airplanes and boats, rubber must be used to reduce vibration.

– Please choose correct model for your application.

-Torque over-loaded will damage the servo’s mechanism-.

– Keep the servo clean and away from dust, corrosive gas and humid air.

Package Included:

1 x CYS-S0250 Brushless Motor Metal Gear Servo

Item NO.

CYS-S0250

Type

High Torque Digital Servo

Gear Type

Metal Gear

Weight

62g

Size

40*20.2*38mm

Control System

(+)Pulse Width Control 1500μsec Neutral

Operating Voltage

6.0V-7.4V

Operating Temperature Range

(-)10 to +50 degree C

Operating Speed @ 6.0V-7.4V

0.14sec – 0.12sec at no load

Stall Torque @ 6.0V -7.4V

22kg.cm-25kg.cm

Current Drain (6.0V)

20mA/idle and 120mA no load operating

Current Drain (7.4V)

20mA/idle and 150mA no load operating

Stall Current

2.3A/3.8A

Dead Band Width

2μsec

Bearing Type

BB*2

Motor Type

Iron Core Motor Servo

Horn gear spline

25T

Cable/Plug

300mm/JR

Wire information

Brown(N) Red (P) Orange(S)
