Description

Item NO.: CYS BLS5507

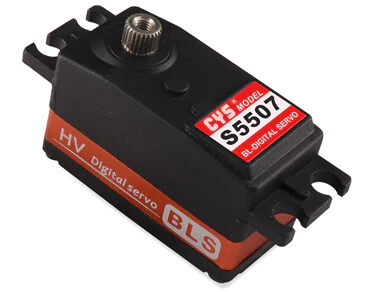

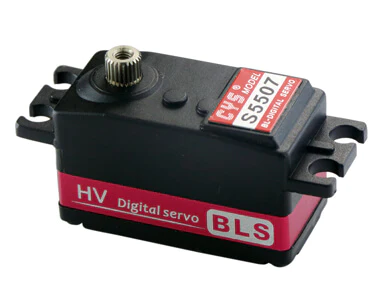

Description : Brushless Motor 43g Metal Gear Digital Servo

Size : 40.9*20*25.2MM

Torque : 7.0Kg.cm ~ 8.0Kg.cm

Speed : 0.06sec ~ 0.05sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 43± 1 g

Important Notes:

-Refer to the figure when installing the servo accessories.

-For engine powered airplanes and boats, rubber must be used to reduce vibration.

– Please choose correct model for your application.

-Torque over-loaded will damage the servo’s mechanism-.

– Keep the servo clean and away from dust, corrosive gas and humid air.

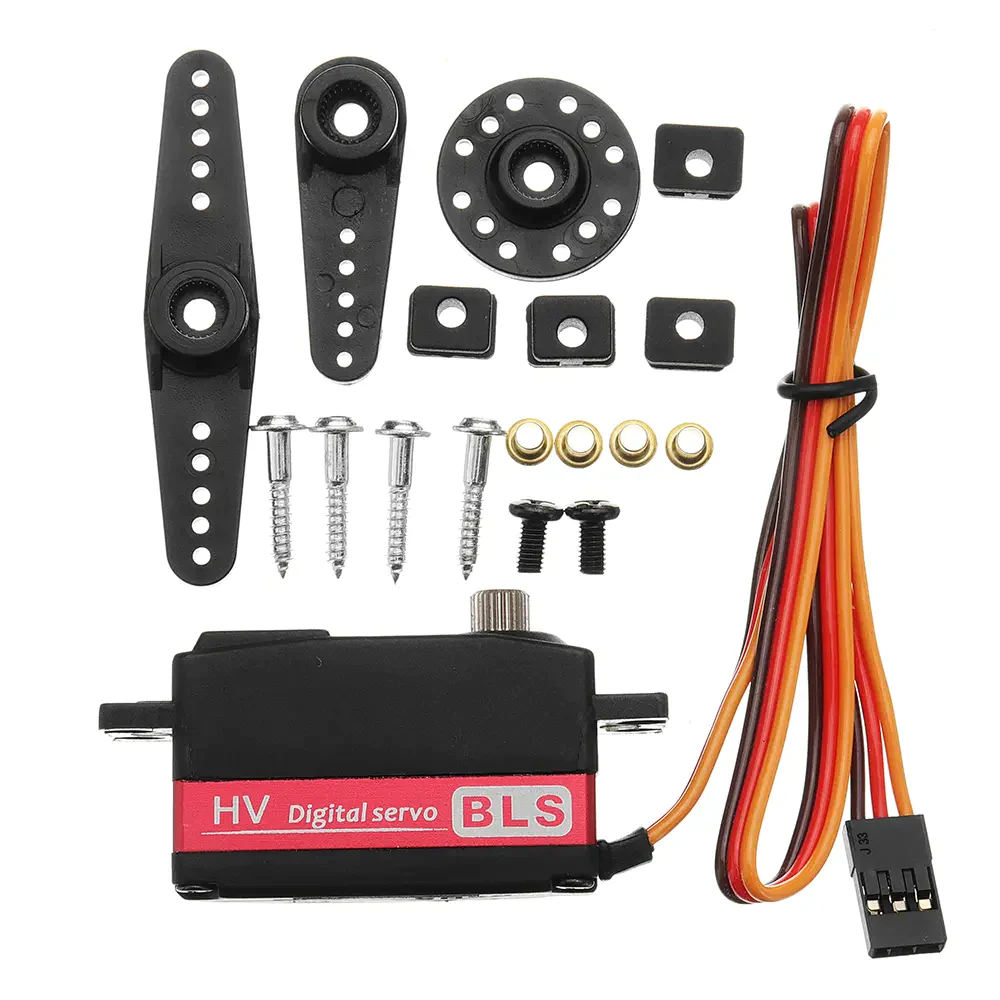

Package Included:

1 x CYS-BLS5507 Brushless Motor Metal Gear Servo

Type Digital

Weight 45g±1g

Size 40.3*20.3*25.2mm

Control System (+)Pulse Width Control 1500usec Neutral

Operating Voltage 6.0~7.4Volts

Operating Temperature Range (-)10 to +50 degree C

Operating Speed (6.0V) 0.06ec/60° at no load

Operating Speed (7.4V) 0.05sec/60° at no load

Stall Torque (6.0V) 5kg.cm

Stall Torque (7.4V) 6kg.cm

Operating Angle 45deg.one side pulse traveling 500 usec

360 Modifiable No

Direction Anticlockwise/Pulse Traveling 1000~2000usec

Current Drain (6.0V) 4mA/idle and 100mA no load operating

Current Drain (7.4V) 5mA/idle and 150mA no load operating

Stall Current 3.2A/3.9A

Dead Band Width 2usec

Motor Type Brushless

Bearing Type Dual ball bearing

Horn gear spline 25T

Gear Type Titanium

Connector Wire Length 180mm±5mm

Wire info Brown/Black = Negative

Red = Positive

Orange/White = Signal
